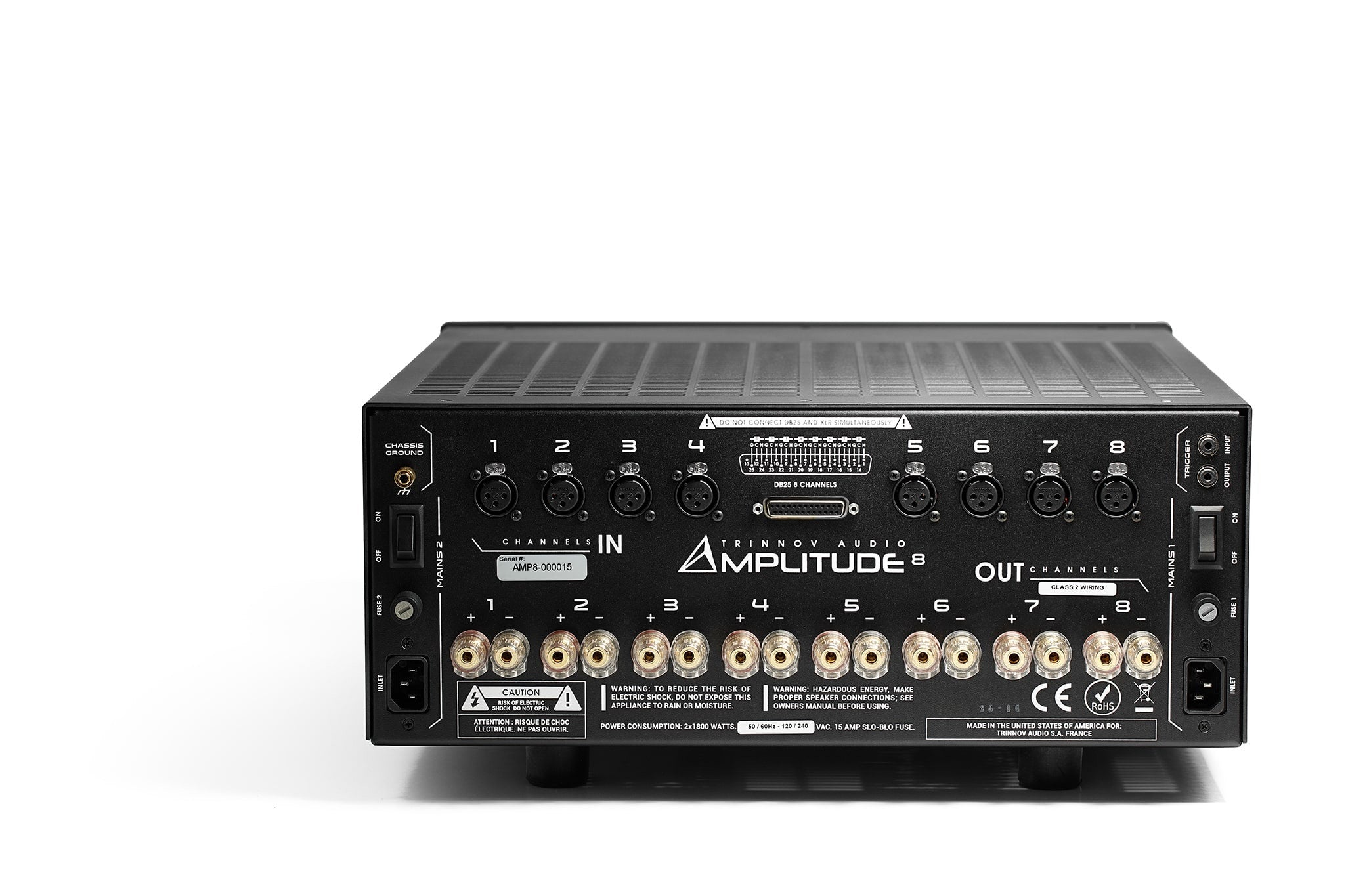

CONNECTORS:
1 Balanced (XLR) per channel on each module.
INPUT IMPEDANCE:
47 kOhms, each phase.
INPUT SENSITIVITY:
6.15V RMS balanced input (+18dBu) for 225W into 8 ohms.GAIN 19.2dB.
POLARITY:
Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output
ANALOG AUDIO OUTPUTS
CONNECTORS :
One balanced output with 5-way binding posts per channel.
POWER OUTPUT
8 ohms :
225W RMS per channel with less than 0.05% THD from 20Hz to 20kHz
4 ohms :
375W RMS per channel with less than 0.05% THD from 20Hz to 20kHz
2 ohms :
500W RMS per channel with less than 0.05% THD from 20Hz to 20kHz
