Introduction to the UFPD 2 Class-D Integrated Amplifier
The integrated amplifier presented here represents the excellence of audio engineering, thanks to its UFPD 2 technology , which guarantees the highest quality audio performance. With a power of 100+100 W RMS into 8 ohms , it is an ideal companion for music lovers seeking powerful and crystal-clear sound.

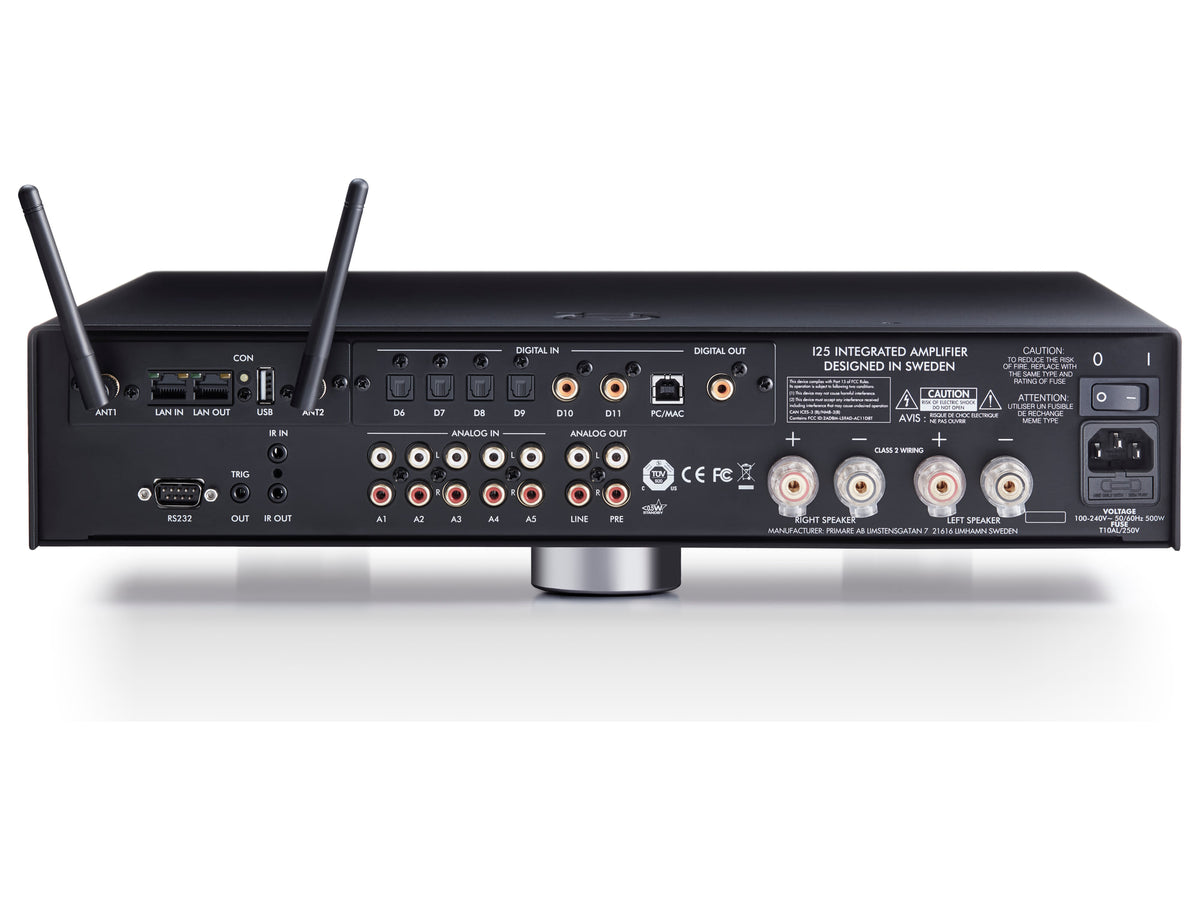

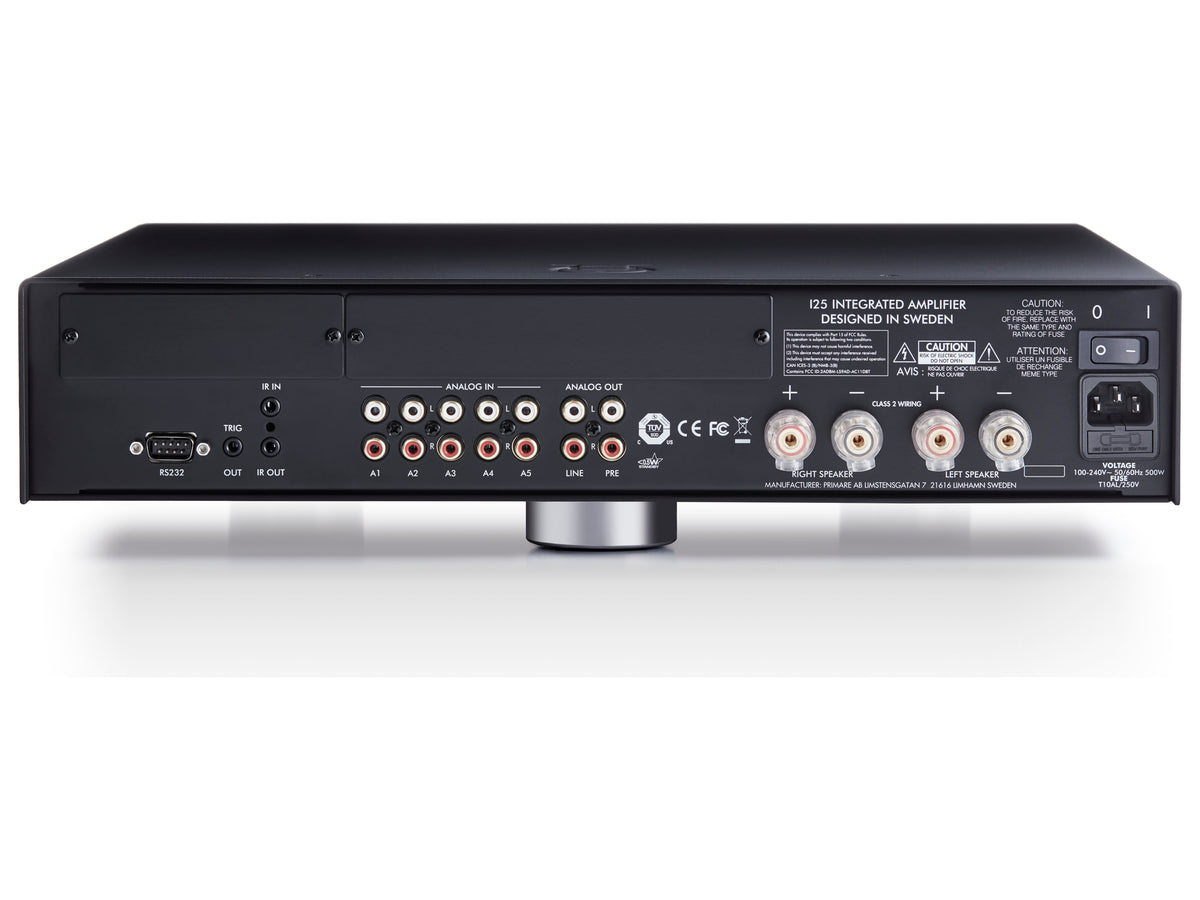

Complete and Versatile Connections
Equipped with 5 analog RCA inputs and 2 RCA outputs (one fixed and one variable pre-out), this amplifier offers a full range of connections for easily integrating different audio sources. The presence of an RS-232 socket and 12V trigger , as well as 3.5mm IR I/O , ensures wide compatibility and ease of use with other audio and control devices.

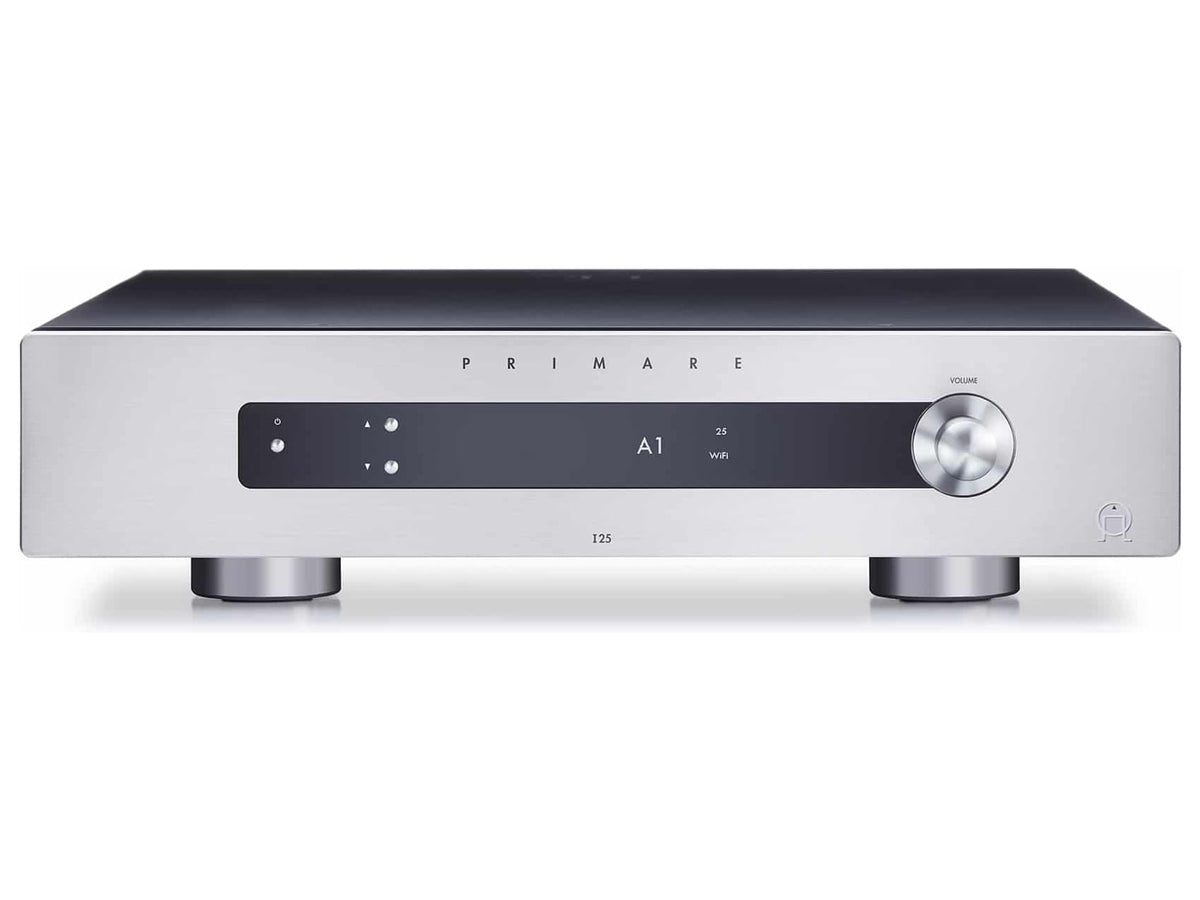

OLED Display for Intuitive Control
The OLED graphic display provides a clear indication of the selected source, volume level, and other essential information about the audio being played. This makes navigating and controlling the amplifier's settings extremely intuitive and convenient.
Integrated DAC Digital Card (DM35)
The presence of the onboard digital DAC (DM35) card adds a level of refinement to the listening experience. With an AKM AK4497 D/A converter , 768kHz/32bit and DSD 256 , this amplifier is capable of reproducing music with extraordinary fidelity and exceptional audio resolution.
Additional Functions and Inputs
In addition to analog connections, the amplifier also offers great flexibility with 4 optical digital inputs, 2 RCA SPIDF digital inputs, and 1 RCA SPIDF digital output . The USB-B input enables additional high-resolution audio playback options. Additionally, the upgradeability via the optional Prisma module offers expansion potential to adapt to future audio needs.
Energy Efficiency and Practical Design
With a low standby power consumption of just 0.5W , this amplifier is designed to be eco-friendly and energy efficient. Its dimensions (WxHxD) of 43x10.6x42cm make it suitable for any hi-fi space, while the included C25 remote control ensures a convenient and complete listening experience.
| Technology
|
Class D, UFPD 2 technology |
| Power
|
100+100 W RMS into 8 ohms |
| Analog Inputs
|
5 RCA analog inputs |
| Analog Outputs |
2 RCA outputs (one fixed and one variable pre-out) |
| Control Connections
|
RS-232 socket; 12V trigger; IN/OUT IR 3.5mm |
| Display
|
OLED graphic display for source, volume and info indication |
| DAC Digital Card
|
On-board DAC digital card (DM35) |
| Additional Functions and Inputs
|
AKM AK4497 D/A converter, 768kHz/32bit and DSD 256; 4 optical digital inputs; 2 RCA SPIDF digital inputs; 1 RCA SPIDF digital output; 1 USB-B input; Prisma upgradeability via optional Prisma add-on module |
| Standby consumption
|
0.5W |
| Remote control
|
C25 remote control |
| Dimensions (WxHxD)
|
43x10.6x42cm |
