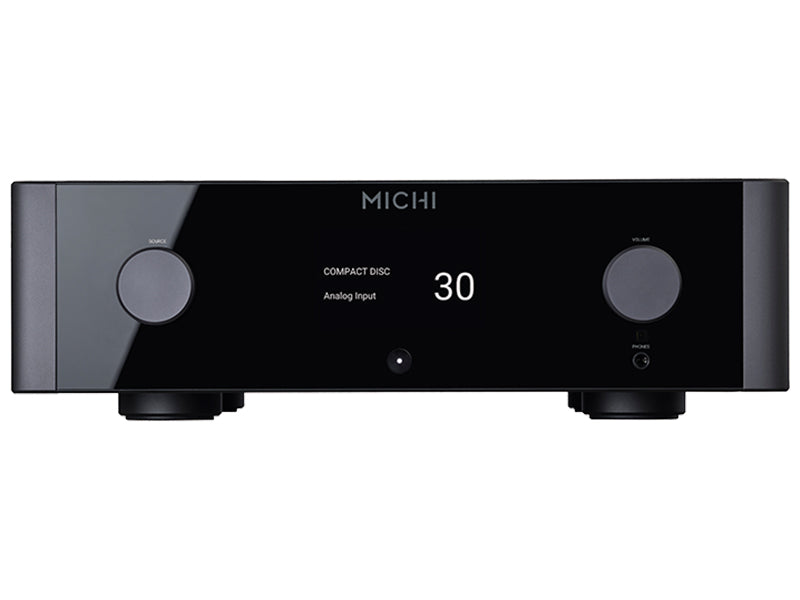

Michi X3 S2 Integrated Amplifier
This amplifier delivers 2x200 Watts of Class AB power into 8 ohms , always maintaining precision and detail, whatever the input used, analog, XLR, digital, USB, Bluetooth apt-X or Phono MM .
Digital audio is reproduced using an ESS SABER ES9028PRO 8-channel precision DAC, configured to dedicate 4 channels to each of the left and right stereo channels, reducing background noise and distortion for a wide, expansive soundstage .
The elegant design of Michi X3 Series 2 adapts seamlessly to any environment, without penalizing the emitted power which reaches 200 watts per channel . There are many music sources that can be connected, both in analogue RCA, balanced XLR, MM phono input, aptXTM HD bluetooth, coaxial and optical . PC-USB input supports PCM (32-bit 384kHz) and Quad DSD (11.2MHz) files with full MQA hardware decoding up to 24-bit 384kHz .
OVERVIEW:
- Integrated Class AB amplifier with power of 2x200W into 8 ohms and 2x350W into 4ohms
- ESS SABER ES9028PRO 8-Channel DAC (32-bit 768kHz) configured in STEREO

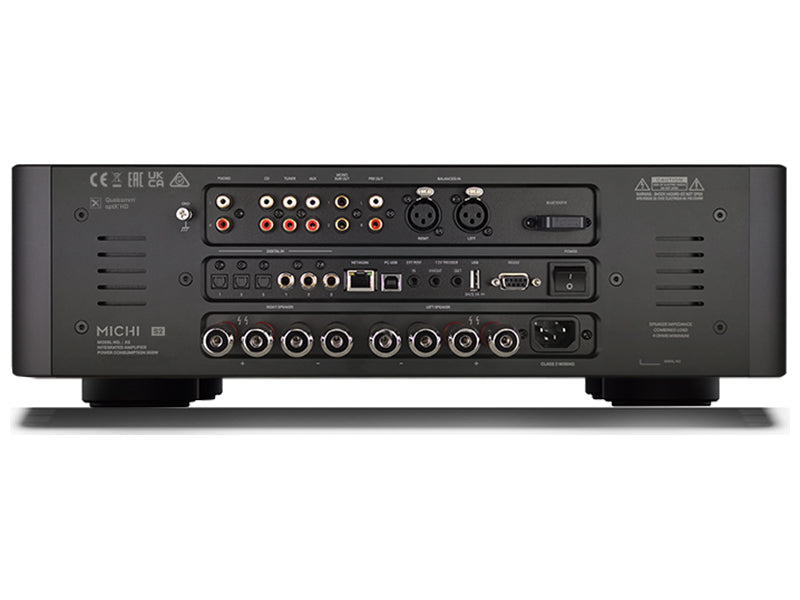

- Inputs: Coaxial (3), Optical (3) and Analog RCA (3)
- PC-USB input with DSD 4X decoding and MQA rendering
- Bluetooth aptXTM HD and AAC
- MM (Moving Magnet) Phono Input
- XLR balanced input
- Oversized toroidal transformer, developed and built by Rotel, high current output for exceptional bass energy, while maintaining control and precision in the smallest details
- High resolution TFT front display, which can be set to various functions and indications
- IP and RS232 for control systems
- Remote control
Technical features
- Continuous power output
- 200W/CH (8Ω)
- 350W/CH (4Ω)
- Total Harmonic Distortion (THD): <0.008%
- Frequency response
- Line Inputs: 10HZ - 100KHZ (+0DB, -0.4DB)
- Digital Inputs: 20HZ - 20KHZ (0 ± 0.4DB)
- Phono input: 20HZ – 20KHZ (+0DB, +0.4DB)
- Signal to Noise Ratio (A-WEIGHTED IHF)
- Line inputs: 102DB
- Digital Inputs: 102DB
- Phono input: 80DB
- Intermodulation Distortion (60HZ:7KHZ, 4:1): <0.03%
- Damping factor (20HZ – 20KHZ, 8Ω): 350
- Separation between channels: >55DB
- Input sensitivity
- Line Inputs (RCA): 340MV
- Line Inputs (XLR): 540MV
- Phono input (MM): 5.2MV
- Input impedance
- Line Inputs (RCA): 100KΩ
- Line Inputs (XLR): 100KΩ
- Digital Inputs: 75Ω
- Phono input (MM): 47KΩ
- Input overload
- Line Inputs (RCA): 3.5V
- Line Inputs (XLR): 5.5V
- Phono Input: 60MV
- Pre-amplified output level: 1.9V
- Impedance Preamplified Outputs: 100Ω
- Tone controls: ±10DB AT 100HZ / 10KHZ
- Electrical/Optical Input Formats
- SPDIF LPCM (UP TO 24-BIT/192KHZ)
- PC-USB
- USB Audio Class 1 (up to 24/96) USB Audio Class 2 (up to 32/384) driver installation required
- DSD and DOP support
- MQA and MQA Studio support
- Roon Tested
- Dimensions (WxHxD): 485x150x452mm
- Weight: 28.9Kg
