An Immersive and Uncompromising Audio Experience
The Perlisten R3ic ceiling speaker is the ideal choice for those looking for an uncompromising audio experience.
Perfect as an additional channel for Atmos, DTS and Auro-3D applications.
Technological Innovation for Extraordinary Sound

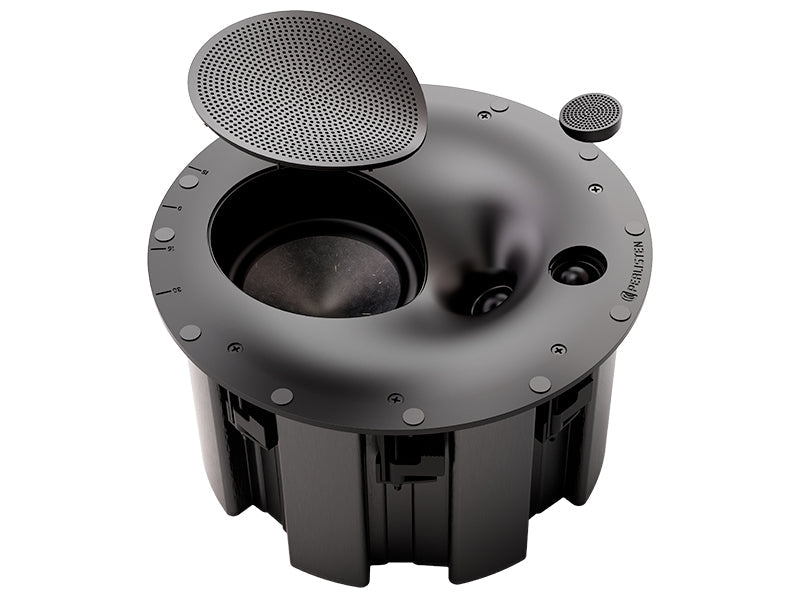

R3ic is designed with advanced technology that includes a 28mm midrange speaker and a 28mm tweeter, both with silk fiber domes.
This system, called DPC Array, guarantees clear and detailed sound.
Thanks to this innovative design, the R3ic can better control the diffusion of sound, offering unprecedented audio quality.
Superior Performance
Equipped with a 165mm woofer with HPF fiber cone, to drive this speaker we recommend a power ranging from 50 to 200W, a sensitivity of 88.8dB and an impedance of 4 ohm.
The wide frequency response ranges from 59Hz to 30KHz, ensuring detailed and precise sound quality.
Additionally, the speaker is encased in a sturdy 4mm aluminum back box that limits sound transmission into other rooms.
Certifications of Excellence
This speaker also boasts THX Dominus and THX Ultra certification, certificates of excellence that guarantee superior performance even in the most demanding audio applications.
The recess hole has a diameter of 305mm, and the speaker weighs 9.4kg, making it sturdy and stable once installed.
Unparalleled Versatility
Optimized for ceiling applications where a 30 degree reference angle is required, R3ic is extremely versatile.
It can be used as an LCR (left, center, right) diffuser, offering uniform coverage.
Advanced Technological Details
The R3ic incorporates Comsol's advanced acoustic modeling technology, resulting in one of the most technologically advanced in-ceiling speakers available.

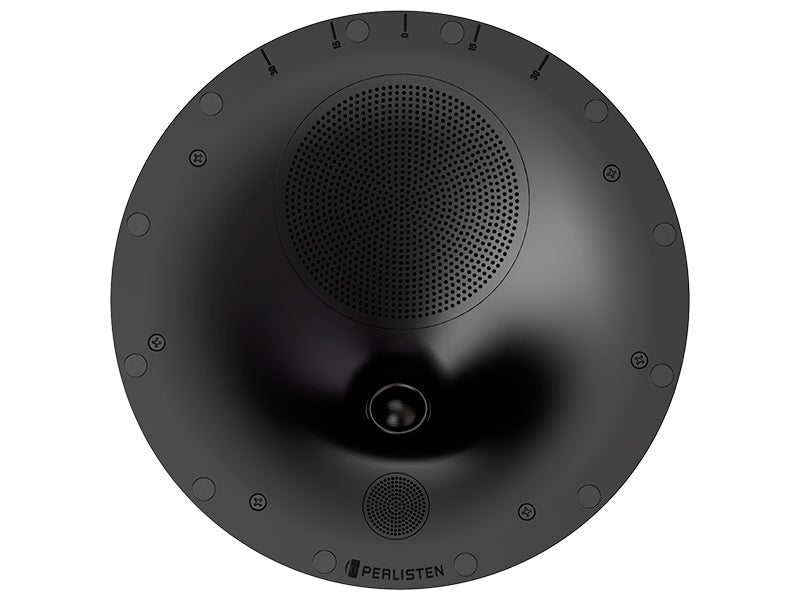

The DPC array, with tweeter and waveguide, offers extraordinary precision, smoothness and directivity control to perfectly handle the critical vocal range and delicate highs.
Design and Innovation
Each R3ic transducer was developed from the ground up by Perlisten engineers, sharing many features with the R series, based on decades of research.
This unique, proprietary tone-matching technique ensures sonic consistency across the entire Perlisten R Series , making the R3ic an essential component for a high-quality home theater system.
TECHNICAL SPECIFICATIONS:
Driver Components
|
DPC Array:
|
|
- 28mm silk dome tweeter |
|
- 28mm silk dome midrange |
|
Woofers:
|
|
- HPF pulp cone, 165mm aluminum frame |
Sensitivity
|
88.8dB / 2.83v / 1.0m |
Impedance
|
Nominal: 4Ω |
|
Minimum: 3.0Ω |
|
Vertical: +/- 30 degrees |
Linearity of Response
|
100 - 20kHz +/-1.5dB window |
Frequency Response
|
59 - 30kHz (-6dB) |
|
46 - 33kHz (-10dB) |
Overall Dimensions (with grid)
|
Diameter: 343.3mm |
|
Depth: 194.8mm |
|
Diameter: 13.5" |
|
Depth: 7.7" |
Recommended mounting hole
|
Diameter: 305mm |
|
Diameter: 12" |
Weight
|
20.4 lbs. (9.4kg) |
Recommended Amplifier Power |
50 - 200W (with HPF at 80Hz) |
|
50 - 125W (full range) |
