Like PRE35 DAC, with PRISMA digital board (SM35) on board
PRE35 PRISM

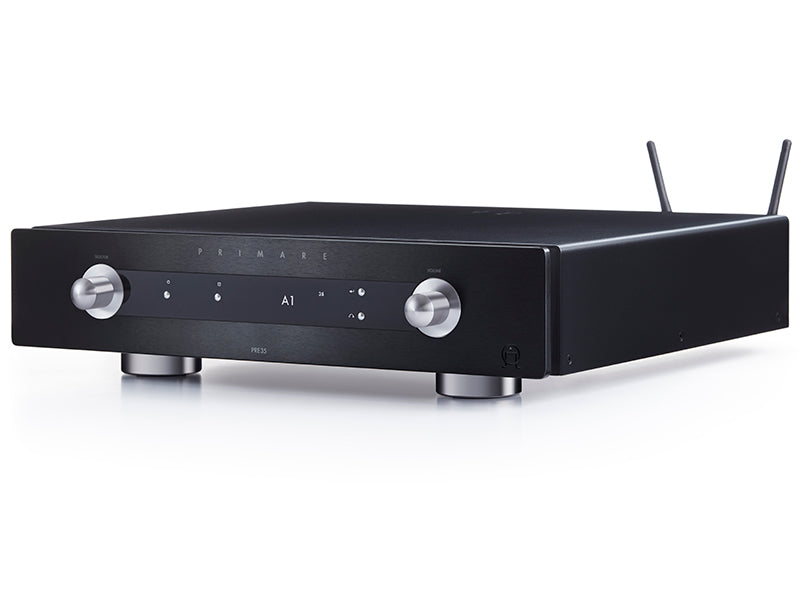

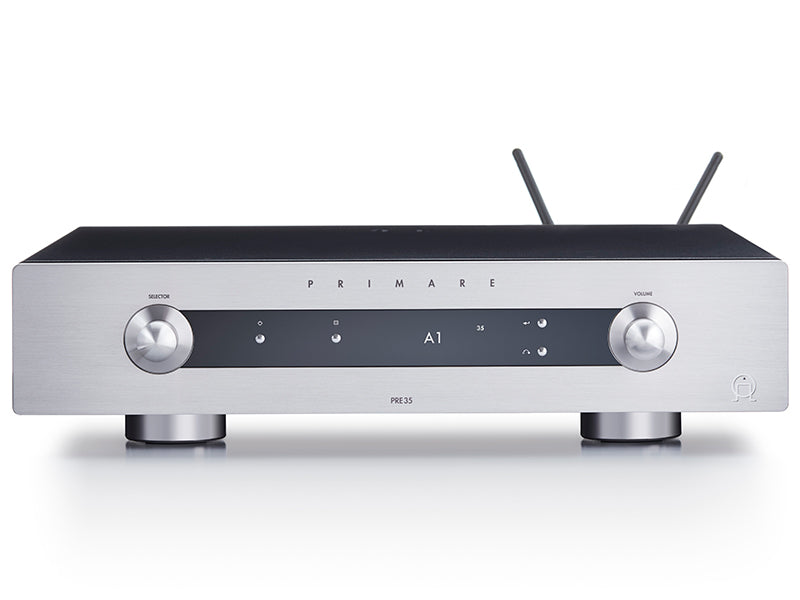

PRE35 Prisma is based on a fully balanced stereo preamplifier, featuring dual XLR inputs and outputs, with modular construction allowing for sophisticated DAC and Prisma network modules to be added to the analog preamplifier at any time.
In addition to fully balanced circuitry, with dual XLR inputs and outputs, PRE35 Prisma includes a DM35 full-featured DAC stage enabling up to PCM 768kHz/32bit and DSD 256 conversion, as well as Prisma connectivity and control, and WiSA high resolution wireless speaker connection technology (available in future updates).
Prisma, provides multi-room/multi-zone connectivity and control for playback of stored and streamed media, wired or wireless, all managed from any mobile device through a dedicated system control app. In addition to Bluetooth, AirPlay, and Spotify Connect, Prisma features Chromecast built-in, a unique streaming portal allowing effortless direct connection to hundreds of streaming applications, including Roon, TIDAL HiFi, Qobuz, Deezer, TuneIn Radio and many others, for the best possible performance and user experience.
Technical specifications
|
|
XLR: 2 x stereo pair analog inputs
RCA: 3x stereo pair analog inputs
XLR: 2 x stereo pair analog PRE outputs
RCA: 1 x stereo pair analog PRE output
RCA: 1 x stereo pair analog LINE output
C25 remote: IR system control
IR: 3.5mm input/output
12V Trigger: 3.5mm output
RS232: outboard system control port
DAC: AKM AK4497
Toslink: 4 x digital inputs
RCA: 2 x digital inputs
RCA: 1 x digital output
|
USB-B: 1 x digital input
Prism: control and connectivity
USB-A: 1 x digital input
Ethernet: x2
Wifi
AirPlay
Bluetooth
Chromecast built-in
Spotify Connect
Weight: 11.3Kg
Dimensions: 430 x 106 x 420mm (WHD)
Finishes: black or titanium
|
