Modern Hi-Fi technology in a classically styled amplifier
A-S1200 is a Yamaha integrated amplifier with floating and balanced amplification, a toroidal transformer, mechanical isolation and level meters inspired by Hi-Fi tradition.
The model brings selected solutions from the higher series into an analogue configuration without networking or digital conversion. Toroidal power supply, heavy-gauge wiring and a rigid structure are developed to keep speaker drive stable, while MM/MC phono inputs and line connections allow an entirely analogue chain to be built.
Key features
- Floating and balanced amplification.
- 625 VA toroidal transformer.
- 90 W + 90 W into 8 ohms and 150 W + 150 W into 4 ohms rated output.
- Low-impedance concept with heavy-gauge ground wiring.
- Mechanical isolation with main components fixed directly to the chassis.
- Pure brass speaker terminals.
- Phono input compatible with MM and MC cartridges.
- Analogue level meters and classically styled front panel.
Floating and balanced amplification
The output section uses Yamaha's Floating and Balanced Power Amplifier topology, keeping the circuitry independent from the conventional ground reference. The symmetrical structure aims to reduce noise and give the two halves of the push-pull stage equivalent working conditions, preserving control and dynamics along the analogue path.
Toroidal transformer
The 625 VA toroidal transformer supplies the power section and is selected for its ability to deliver current while keeping magnetic leakage low. Together with the capacitors and wiring, it forms the core of the power supply and supports the rated 90 W + 90 W into 8 ohms.
Low impedance
The low-impedance concept uses thick ground cables and direct connections to reduce losses between the power supply, output stage and speaker terminals. Internal wiring to the outputs uses heavy-gauge conductors, preventing parasitic resistance from limiting the amplifier's ability to follow changes in speaker load.
Mechanical isolation

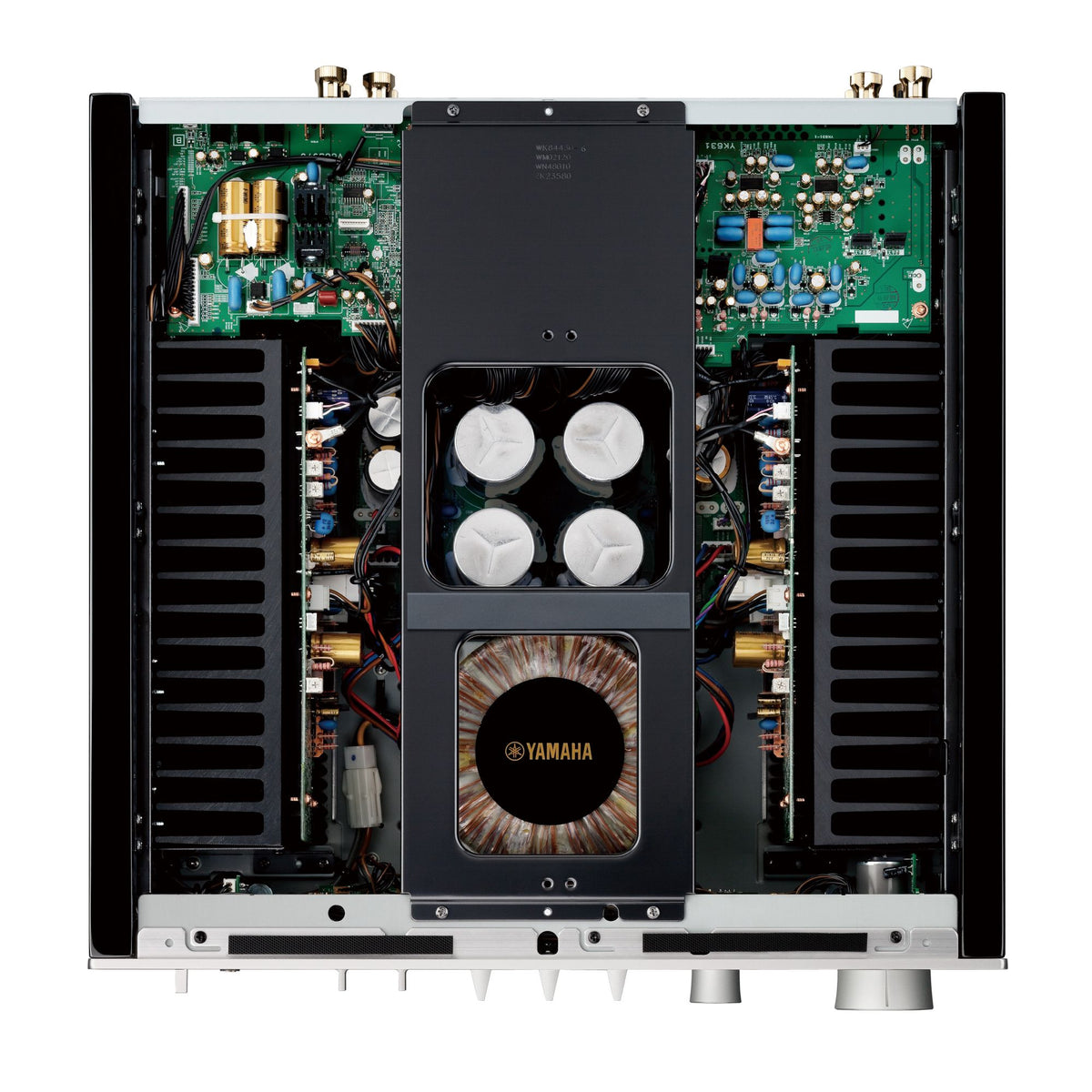

The transformer, heatsinks and capacitors are fixed directly to the chassis through rigid mounting points, preventing the heavy components from moving independently of the structure. Metal feet complete this approach and limit the transfer of external vibration to sensitive analogue circuits.
Phono and analogue connections

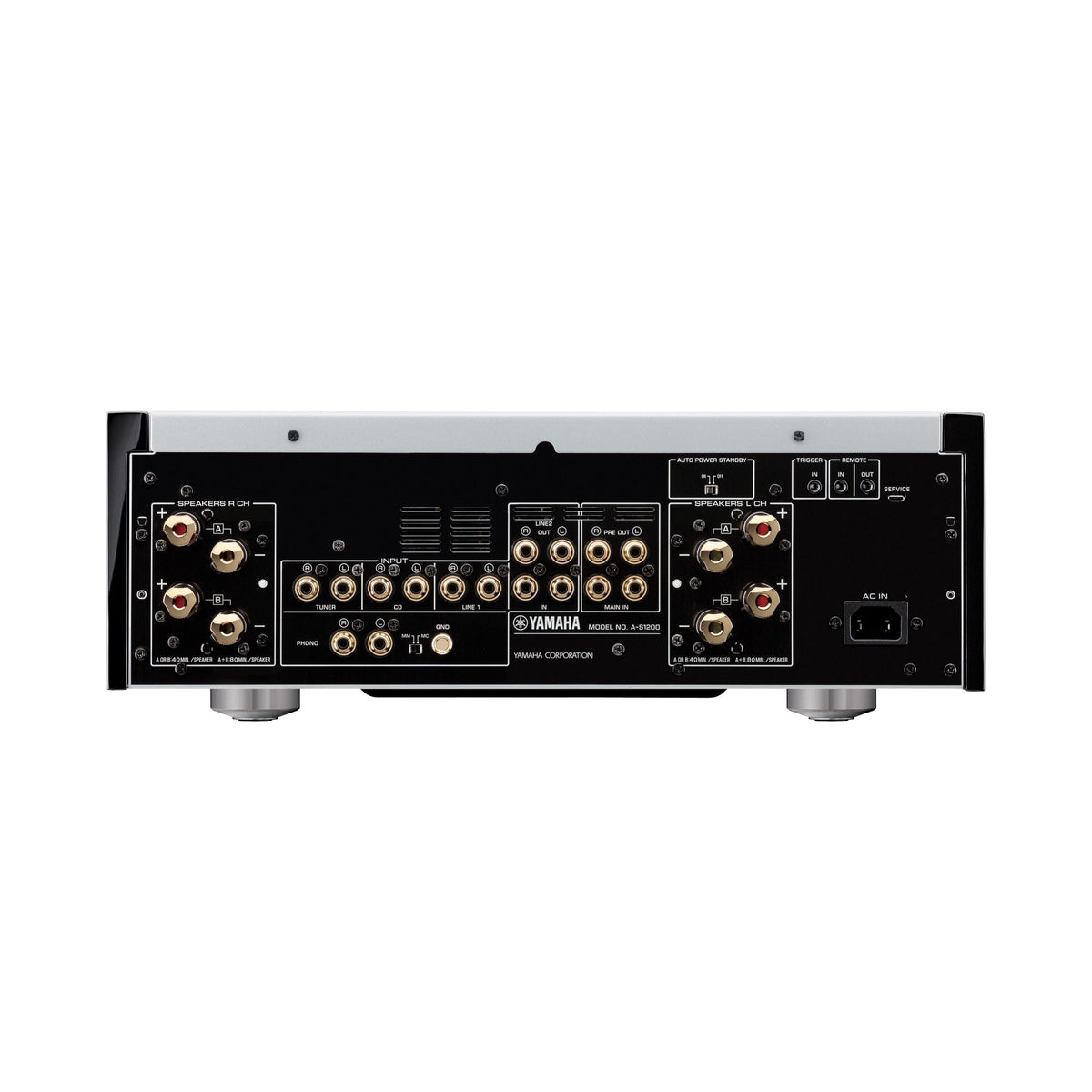

A-S1200 includes a phono stage compatible with both MM and MC cartridges, an important feature for an amplifier focused on a complete analogue chain. Line inputs and Main In allow players, external DACs and preamplifiers to be integrated while keeping the component free from internal digital conversion.
Terminals and level meters

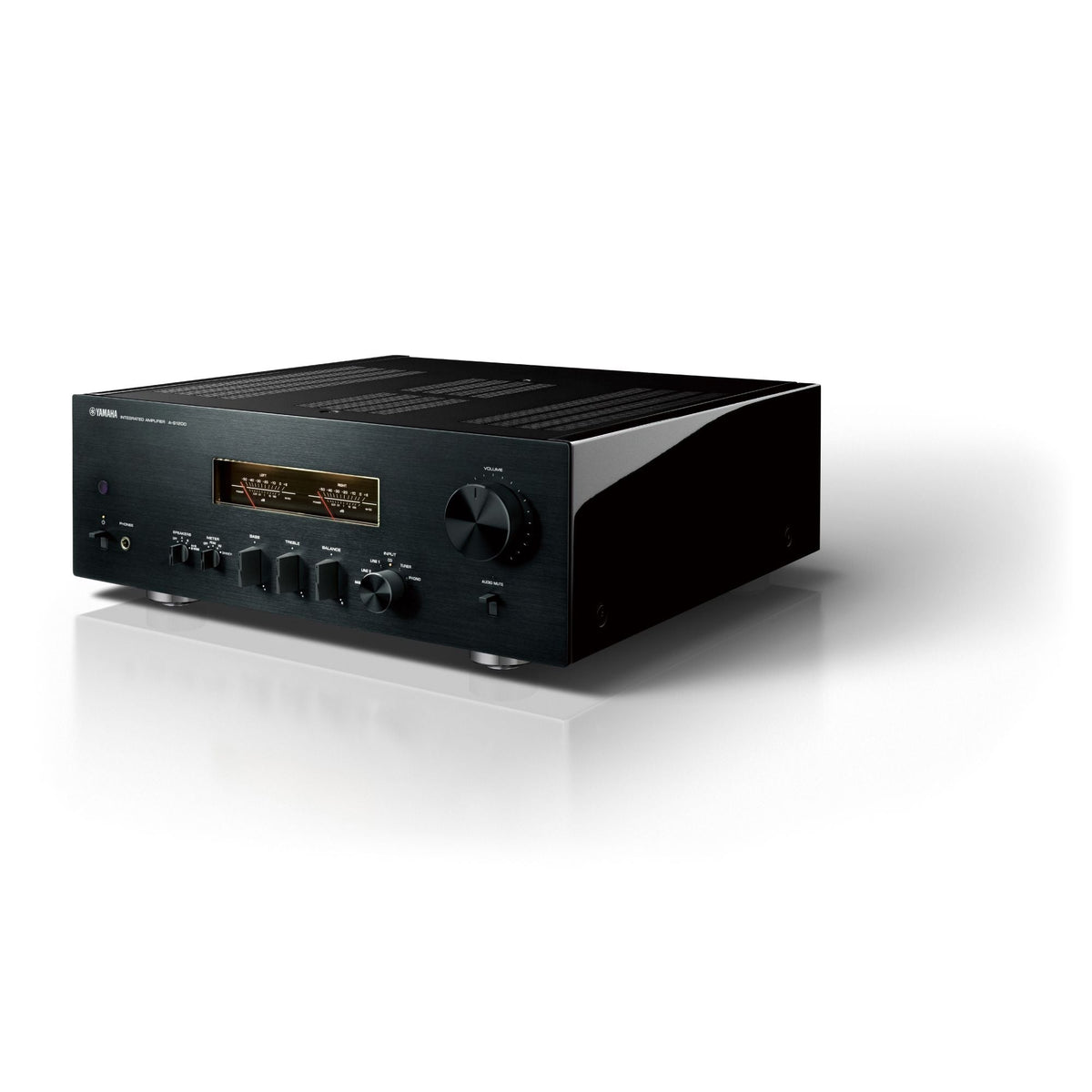

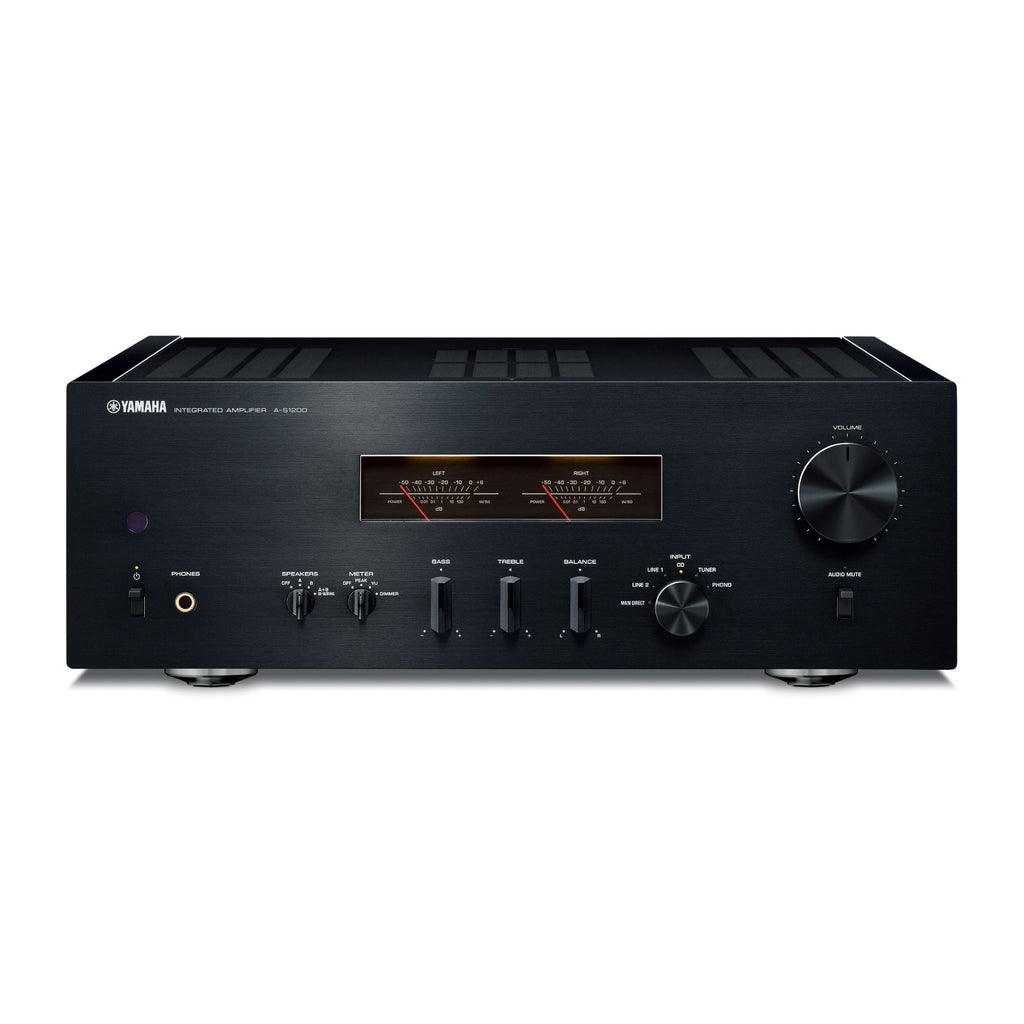

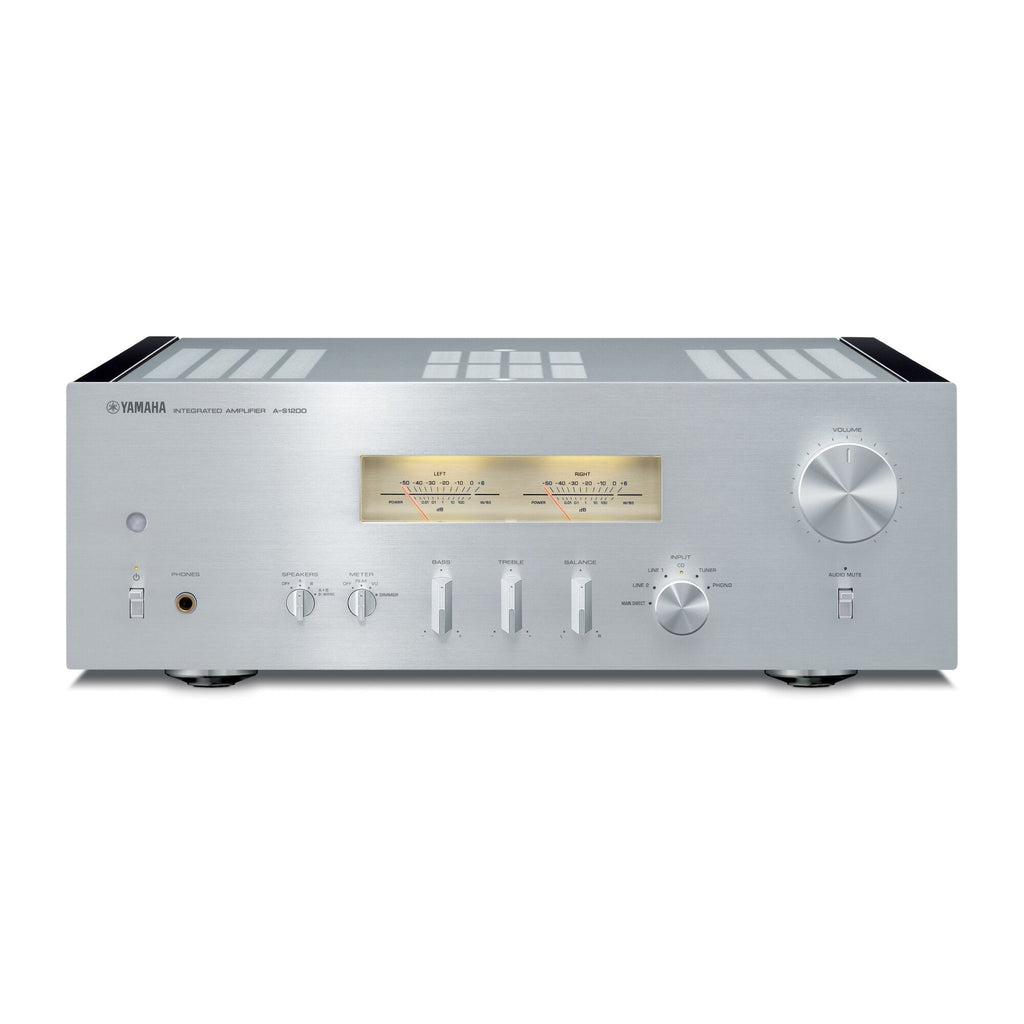

The speaker terminals are machined from pure brass and designed for secure tightening. On the front, the level meters display signal dynamics and recall classic-era Yamaha components, while knobs and selectors maintain fully physical interaction with volume, inputs and adjustments.
