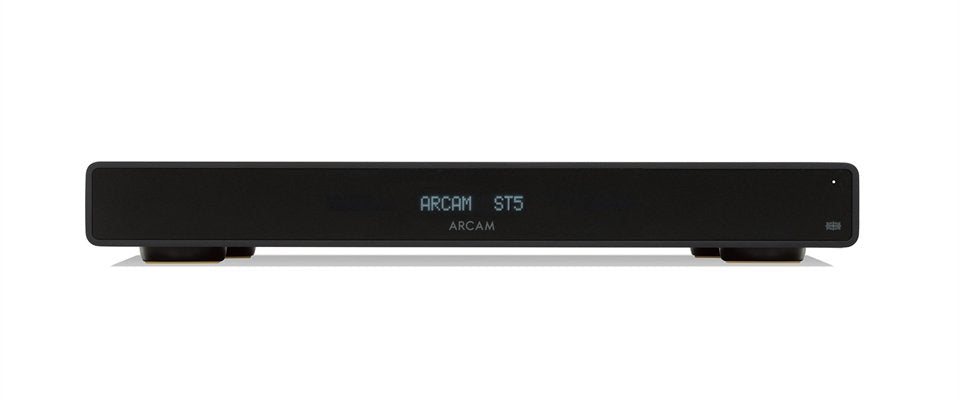

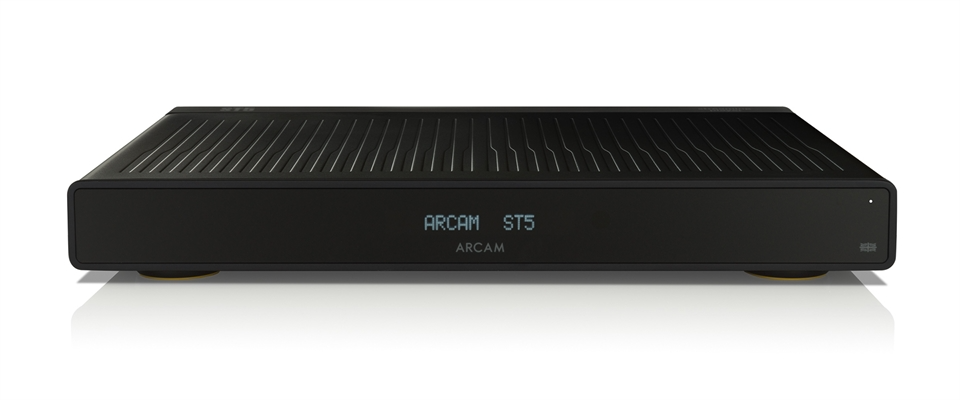

Arcam ST5
The ARCAM ST5 is a refined network streamer designed to integrate seamlessly with the new Radia integrated amplifiers, taking your audio experience to new heights. This streamer stands out for its versatility and superior audio quality .

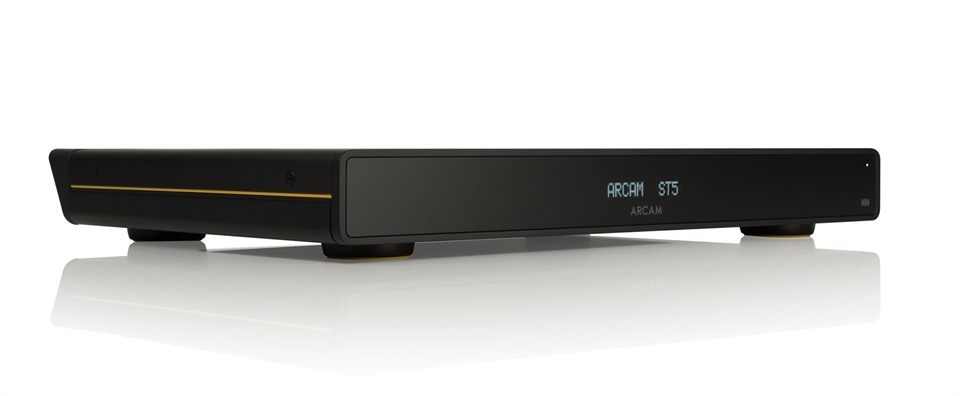

Slim Line Design and Integrated Direct Connection:
The slimline design of the ARCAM ST5 not only offers a modern and elegant style , but also allows for a direct control (trigger) connection to the Radia amplifiers. This integration allows the two components to act as a single entity , ensuring superior sound quality thanks to galvanic isolation and separate power supplies.
Streaming Services and Intuitive Controls:
The ARCAM ST5 supports a wide range of smartphones and tablets for control , as well as integrating popular streaming services like Spotify Connect and Tidal Connect. Its Wi-Fi and Ethernet wireless connectivity allows for instant playback via Apple AirPlay 2 or Google Chromecast, offering a seamless and intuitive user experience.

Versatility and Roon Ready:
With Roon compatibility, the ARCAM ST5 offers comprehensive support for high-fidelity enthusiasts. The combination of Hi-Res Audio and MQA makes this streamer an ideal choice for those seeking superior audio performance and advanced connectivity.
Remote Control and Compact Size:
Complete with a dot-matrix display and remote control , the ARCAM ST5 offers intuitive, hands-on control. Measuring 431 x 83 x 344mm and weighing 3.5kg , it fits seamlessly into any audio system, combining elegant design with extraordinary audio performance.
Technical Features:
| Characteristic |
Specifications |
| Hi-res Files Supported
|
FLAC, WAS (LPCM), MQA, AAC, ALAC, AIFF, DSD (128) |
| Hi-res Bit Depth
|
16, 24 |
| Supported Sampling Rates (kHz)
|
44.1, 48, 88.2, 96, 176.4, 192 |
| Supported Files
|
MP3, MP4, OGG, WMA |
| Bit Depth (Supported Files)
|
16 |
|
Supported Sampling Rates (kHz) (Supported Files) |
44.1, 48 |
| Gapless Reproduction
|
Yes |

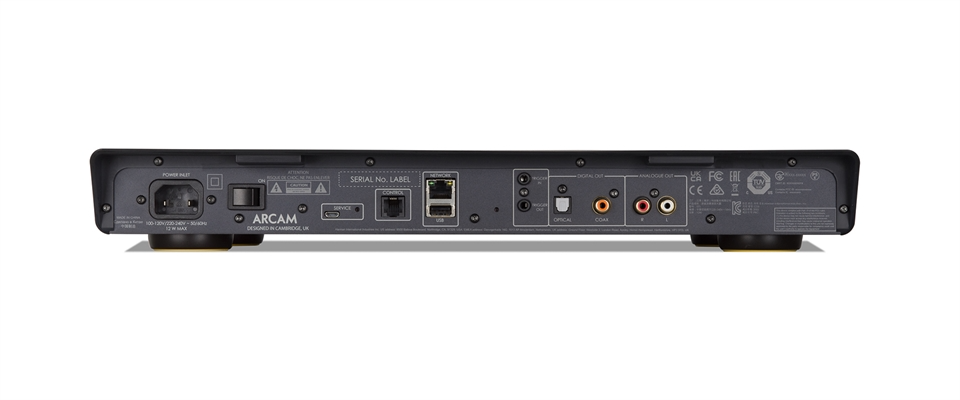

| Digital Outputs
|
1x Coaxial (RCA), 1x Optical (Toslink) |
| Analog Outputs
|
1x Stereo (RCA) |
| Frequency Response (Filter 1)
|
20Hz—20kHz ± 0.05dB |
| Generals
|
|
| Diet
|
100V or 110–120V or 220–240V, 50–60Hz |
| Consumption
|
12W |
| Consumption (Eco Standby)
|
<0.5W |
| Maximum Dimensions (LxDxH)
|
431x344x83mm |
| Weight (Net)
|
3.5kg |
