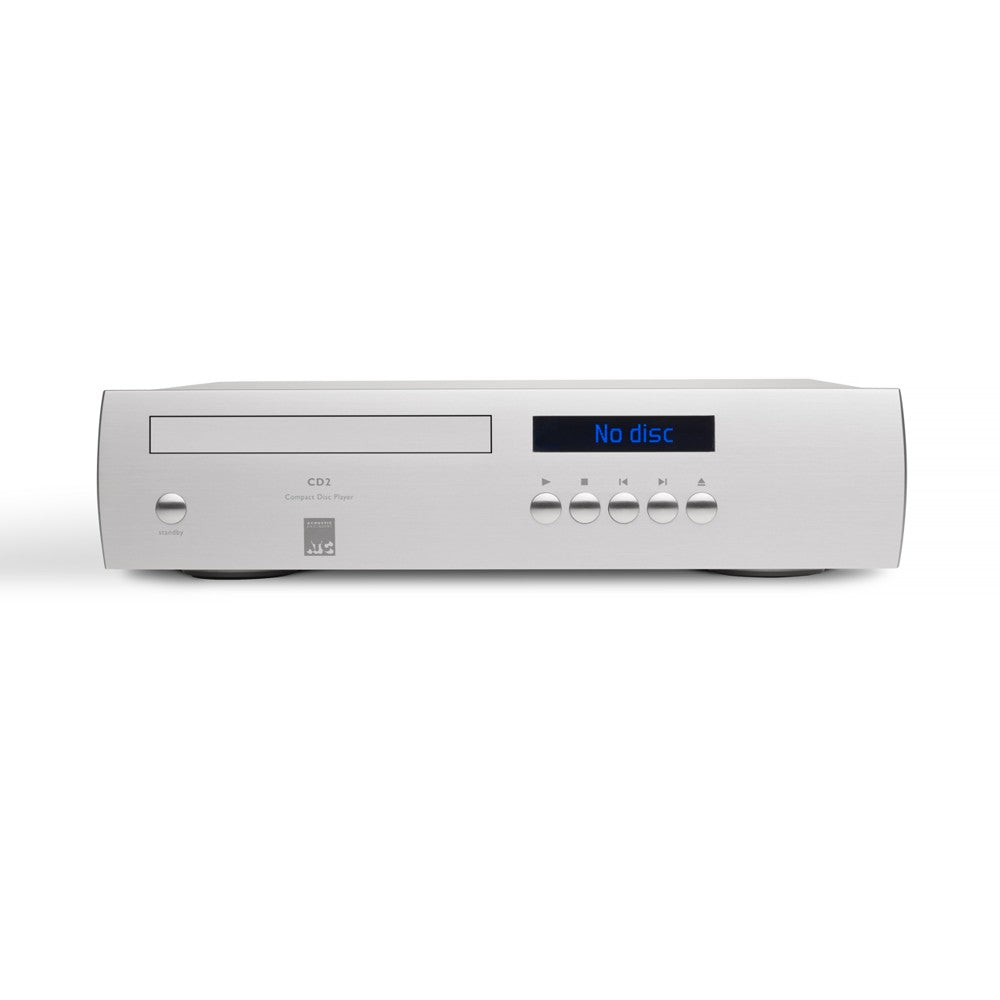

ATC CD2: compact CD player with a 32 bit AKM converter
ATC CD2 is a CD player of compact format, designed to match a broad choice of electronics, both by ATC and by other makers. Its look follows that of the other ATC electronics, while its contained size makes it the direct companion of the SIA2-100 integrated amplifier, which is just as compact.
Disc reading is entrusted to a TEAC mechanism and conversion to a 32 bit AKM chip. The analogue output stages are ATC buffers with discrete components in class A and reach both balanced XLR sockets and unbalanced RCA sockets. For those who prefer an external converter there are two digital outputs, coaxial and optical TOSLINK. The unit is made by hand in England.
Technical features
- Mechanism: TEAC CD drive
- D/A converter: 32 bit AKM

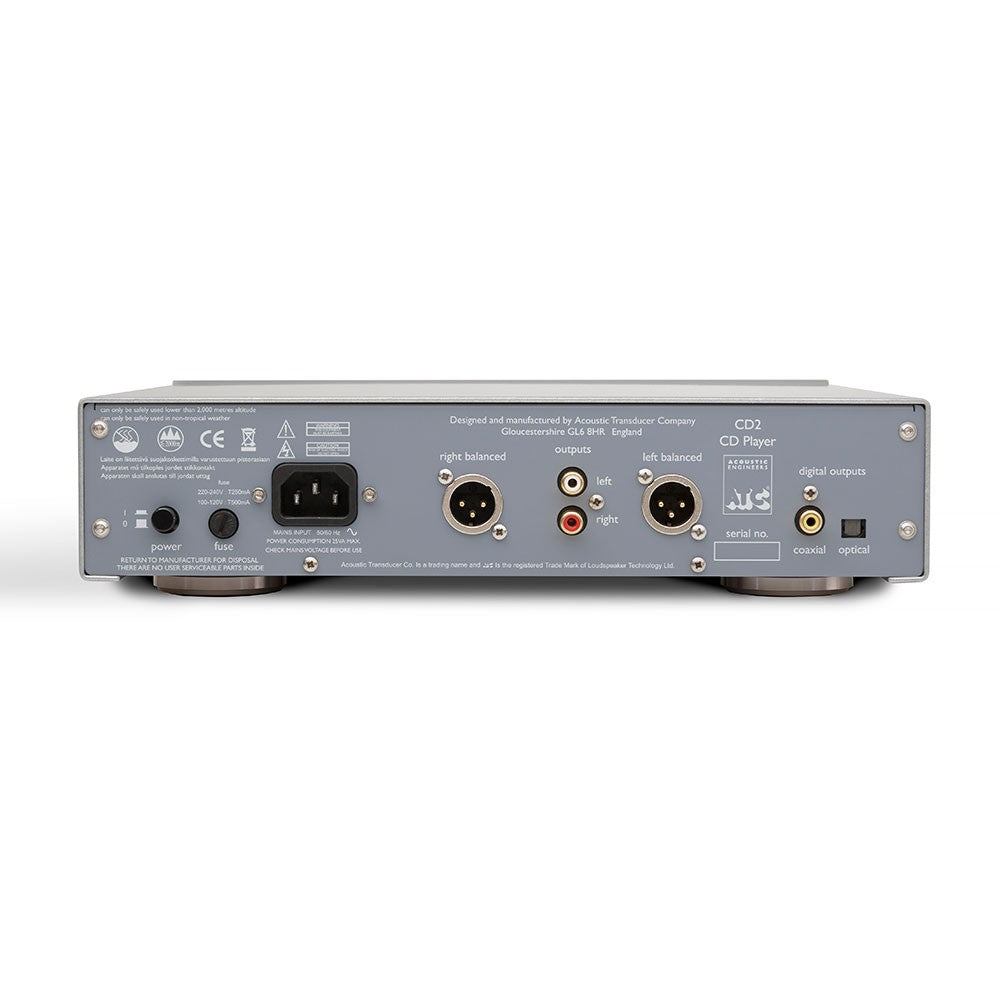

- Analogue outputs: one balanced XLR stereo pair and one unbalanced RCA stereo pair
- Output level: 4 V RMS balanced and 2 V RMS unbalanced
- Digital outputs: one coaxial and one optical TOSLINK
- Frequency response: within +/- 0.2 dB between 20 Hz and 20 kHz
- Signal-to-noise ratio: above 112 dB (IEC A); harmonic distortion lower than 0.0015% at 1 kHz
- Size: height 77 mm, width 315 mm, depth 327 mm, connectors included
- Weight: 3.85 kg
