Advanced control module for Blustream video over IP systems
The ACM1000 is the web-based controller that sets up, monitors and operates Blustream AV over IP installations, from commissioning to everyday use.
Compared with the previous generation both the hardware, now built around a quad-core processor, and the management software have been redesigned. A guided wizard configures the system automatically; in the browser, sources are dragged onto screens, with a live video preview to check how the installation is running. Video and audio, as well as IR, CEC, USB/KVM signals and serial RS-232, are routed independently, depending on the platform in use. On top come round-the-clock scheduling, simultaneous switching, advanced presets and ready-made macros. The two LAN ports keep the home or office network apart from the video network, each with its own IP address and with no complex network setup.
Key features
- Web interface with drag-and-drop source selection and video preview
- Automatic configuration through a built-in setup wizard
- Two gigabit LAN ports to keep office traffic and the AV network apart
- Two RS-232 ports to operate the system and relay commands to remote devices
- 5V/12V IR input and configurable GPIO ports for third-party products
- IP commands converted to IR, serial or CEC for any point of the system, with a graphic remote for sources and screens
- Scheduling around the clock, every day of the week
Technical data

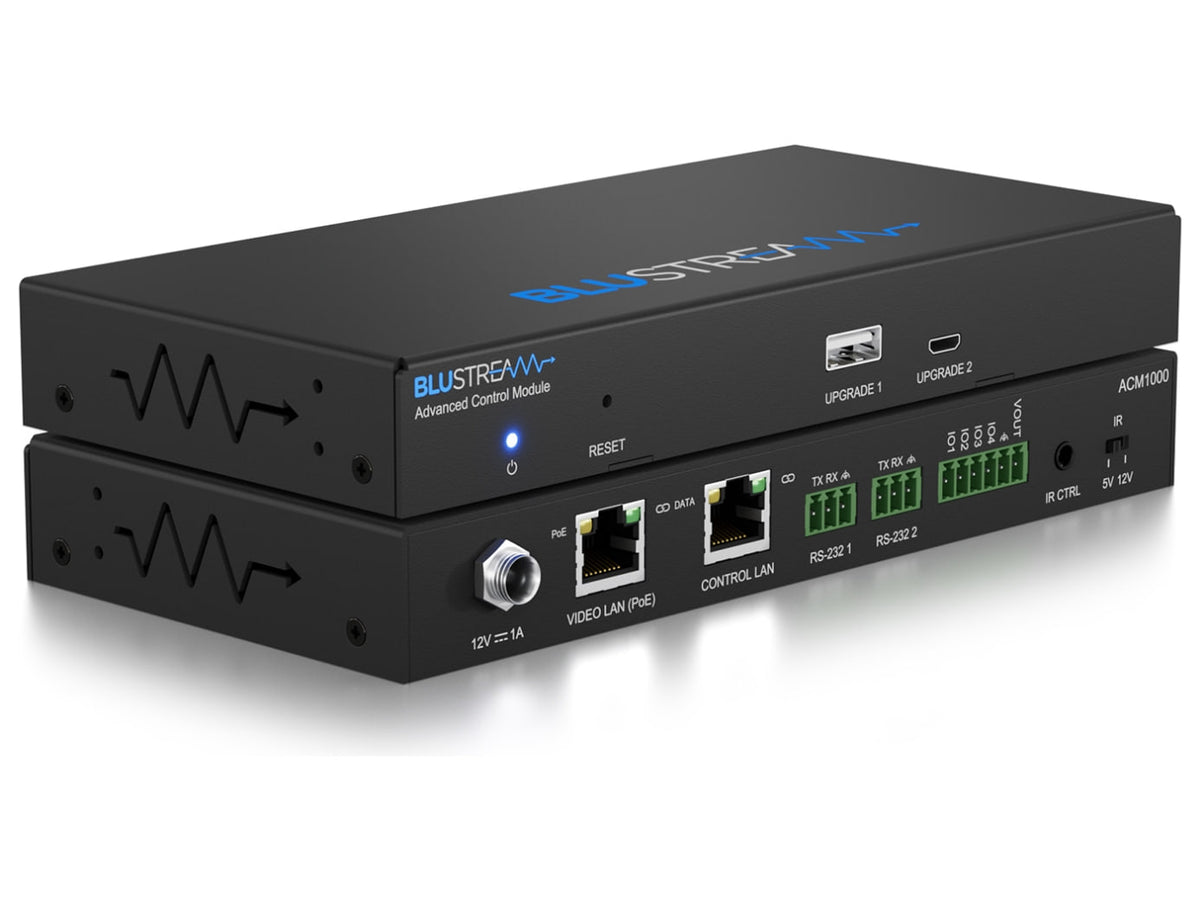

Connections: two 1Gb RJ45 (one PoE capable), two 3-pin Phoenix terminals for RS-232, a 6-pin Phoenix for I/O, a 3.5mm stereo jack for IR, a micro-USB and a USB Type A for updates. It runs on PoE or 12V 1A and draws 4W at most. It measures 190 x 93 x 25mm and weighs 0.5kg; supplied with four rubber feet, mounting kit, quick reference card and network switch guide.
