Control module for IP500 SDVoE video over IP systems

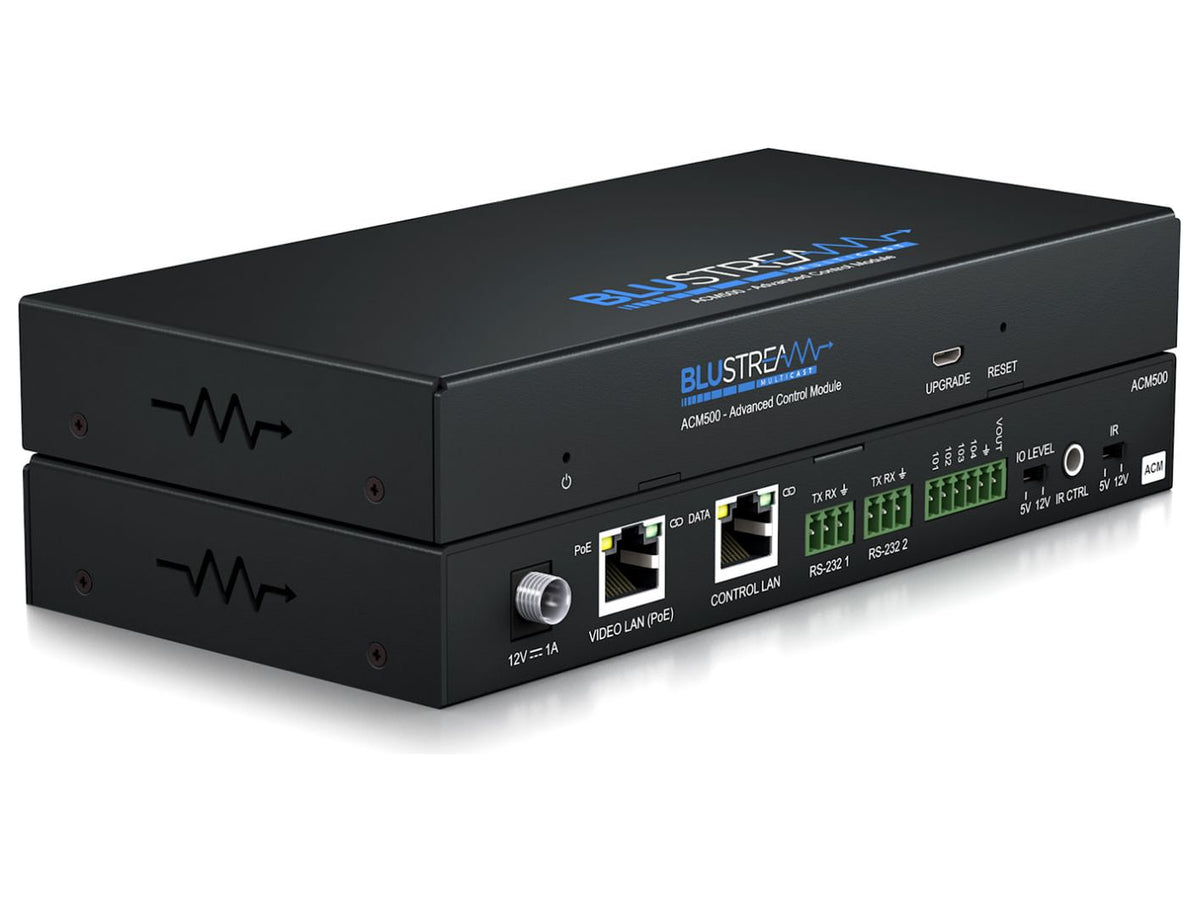

The Blustream ACM500 is the setup and command centre for SDVoE 10GbE Multicast systems in the IP500UHD and IP510UHD series, and opens them up to control from third-party equipment.
The SDVoE system carries uncompressed 4K audio and video with no delay over 10GbE networks on copper or fibre. The ACM500 adds a web interface where sources are picked by dragging them onto screens, with a video preview showing what the installation is doing, and where audio, video, IR commands, RS-232 serial and USB/KVM are routed separately. Its two LAN ports bridge the existing network and the dedicated video network: traffic stays apart, each port has its own IP address and no advanced network setup is needed. Ready-made drivers for control systems make installation simpler. The system can also be operated from iOS and Android apps.
Key features
- Web interface to set up and run IP500UHD and IP510UHD
- Drag-to-select source choice, with video preview
- Automatic system configuration
- Two 1Gb LAN ports joining the existing and the video networks
- Third-party control over a TCP/IP network, RS-232 serial or 5 V or 12 V IR
- Two RS-232 ports to drive the system or forward commands to remote devices
- PoE power or, alternatively, a local 12 V supply
Technical data
Connections: two 1Gb RJ45 (one with PoE), two 3-pin Phoenix terminals for RS-232, a 6-pin Phoenix I/O terminal, a 3.5 mm stereo jack for IR in and a micro-USB for updates. It draws 7.9 W over PoE (8.4 W at most), measures 190.4 x 93 x 25 mm and weighs 0.6 kg packed. In the box: 3.5 mm to 3.5 mm IR lead, four rubber feet and mounting kit.
