Audio extractor for the ARC channel of a TV
The ARC11 picks up the audio a display sends back on the ARC channel of its HDMI socket and makes it available on analogue and optical outputs, ready for an amplifier or a multiroom audio system.
A single HDMI lead goes to the ARC socket of the TV: everything the screen plays, from apps to the tuner, becomes a source for the audio system. The optical output handles both stereo and multichannel formats, 5.1 included; the analogue output works with 2-channel PCM when the source is stereo. Output level is fixed: volume is not adjusted with the CEC commands of the TV but on the amplifier further down the chain. Power comes from a 5V USB supply.
Key features
- Audio extraction from the HDMI ARC return channel
- Analogue output for 2-channel PCM audio
- Optical output for multichannel and stereo formats, 5.1 included
- Sampling up to 192kHz at 24-bit
Connections

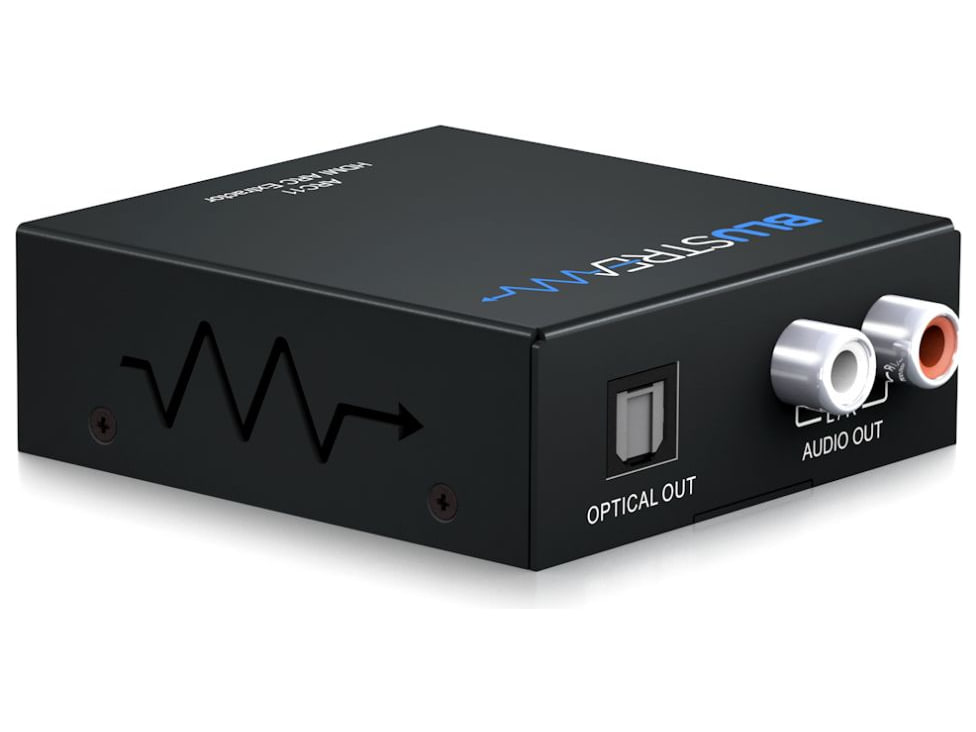

19-pin HDMI Type A input; outputs on two analogue RCA, left and right, and one Toslink optical socket. It measures 70 x 25 x 73mm. The box contains the 5V 1A USB power supply, mounting kit and quick start guide.
