Compact 4x2 HDMI 2.0 matrix with 4K 60Hz support

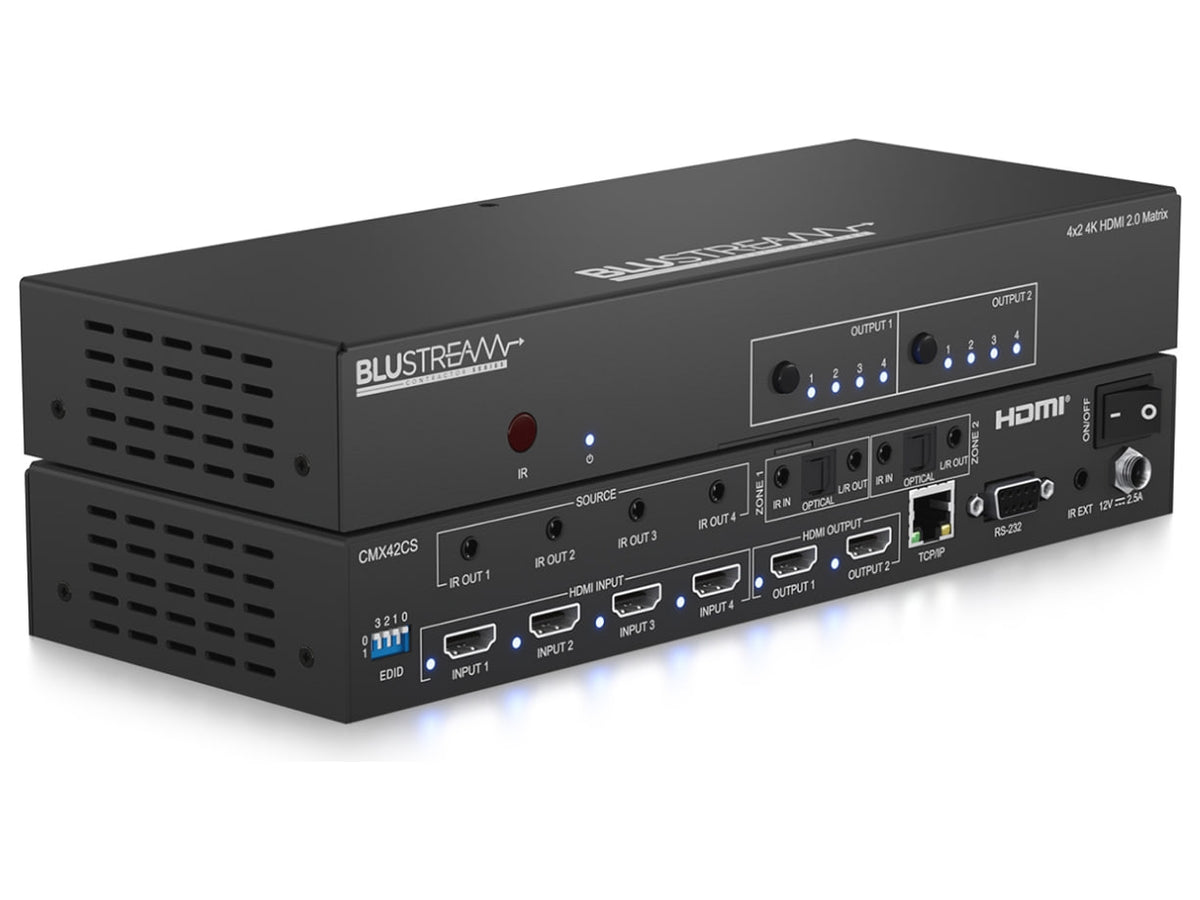

The Blustream CMX42CS routes four HDMI sources to two independent outputs, with signals up to 4K 60Hz in 4:4:4 at 18Gbps, HDR and HDCP 2.2.
Its small size suits home systems, meeting rooms, classrooms and commercial spaces with several zones. If one of the two displays only accepts 4K 60Hz in 4:2:0 or 1080p, the matrix converts the signal on that output and keeps the other at full 4K. The audio of each output is also available as analogue and digital, to feed an amplifier or a soundbar. The HDMI connectors are the locking type, to prevent accidental disconnection. It is controlled from the front panel, IR remote, RS-232 and TCP/IP, and also routes IR signals between zones.
Key features
- Four HDMI inputs freely routed to two HDMI outputs
- HDMI 2.0 at 18Gbps with HDR, up to 4K 60Hz in 4:4:4
- Resolutions from VGA to WUXGA and from 480i to 4K
- Pass-through of multichannel and object-based surround formats defined by HDMI
- IR routing, with 5V IR receivers and emitters included
Connections
Four locking HDMI Type A inputs and two outputs, two S/PDIF optical outputs and two analogue outputs on 3.5mm jacks, an RJ45 for IP control, a DB9 serial port, three IR inputs and four IR outputs. It measures 255 x 104 x 40mm. Supplied with 12V 2.5A power supply, remote control, four IR emitters and three IR receivers, mounting kit and quick reference card.
