Dante audio decoder with balanced or unbalanced stereo analogue output

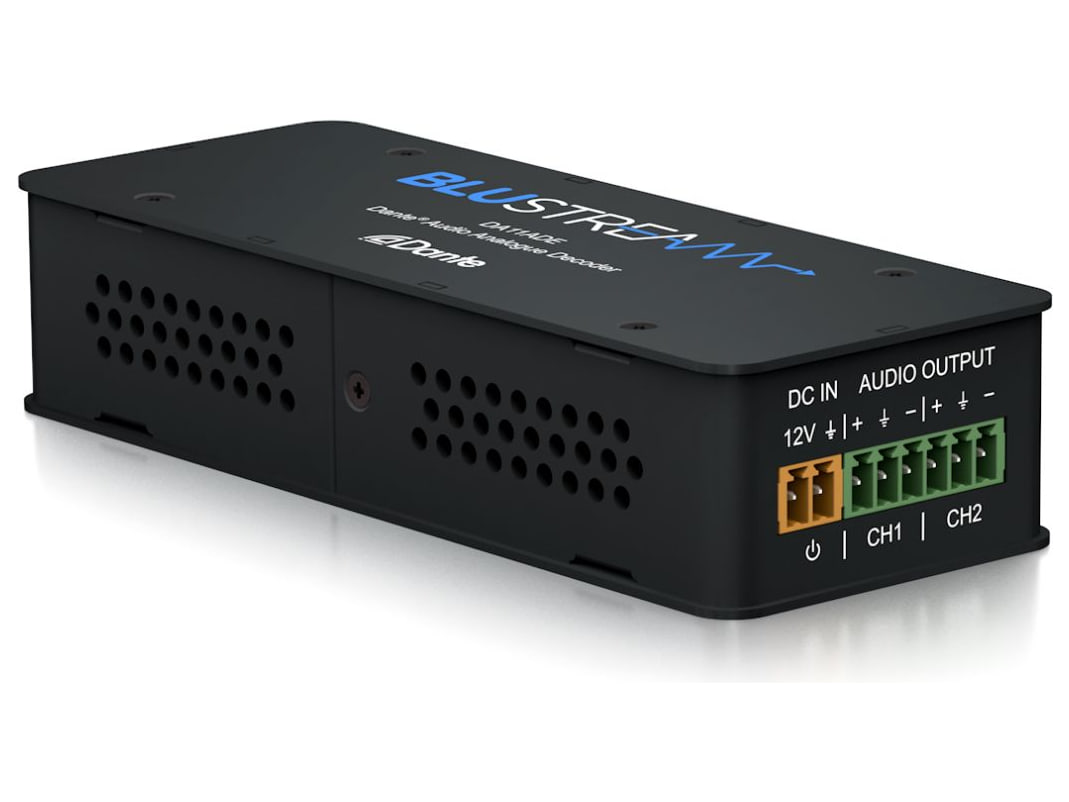

The Blustream DA11ADE takes a Dante audio stream from the network and turns it into two analogue channels, ready to feed an amplifier, a mixer or an active speaker.
It is a compact module meant to sit next to the equipment it serves: connect it to a PoE network switch and it shows up among the devices handled in Dante Controller, where latency and routing are set. Besides Dante it accepts RTP transport to the AES67 standard, so it can also work with third-party systems built on that standard. The level of each channel is trimmed on its own, to match the output to the sensitivity of the connected input.
Key features
- 2-channel analogue output, balanced or unbalanced, on a 6-pin Phoenix terminal
- Sampling at 44.1, 48 and 96kHz with 24-bit depth
- Dante latency selectable at 1, 2 or 5ms through Dante Controller
- Per-channel gain adjustment from +18dBu down to -10dBV
- Compatible with AES67 RTP audio transport
- Class 1 PoE power (IEEE 802.3af) from any PoE switch
Technical data
The Dante network link uses a single 100Mbps RJ45 port that carries both audio and power. The housing measures 120 x 47 x 26mm and the shipping weight is about 0.2kg. The box holds the converter and its quick start guide.
