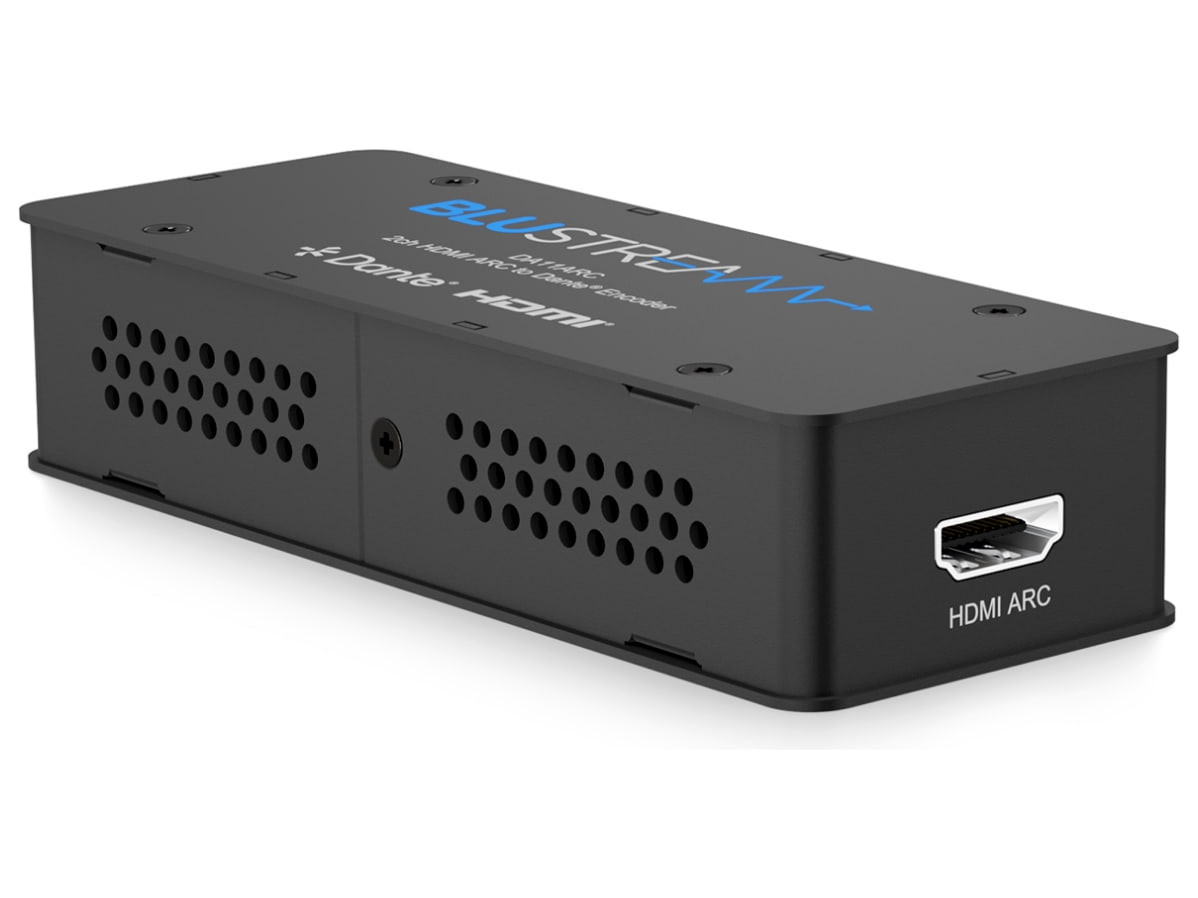

Encoder that puts HDMI ARC audio onto a Dante network
The Blustream DA11ARC picks up the stereo sound a TV sends back on the ARC channel of its HDMI socket and places it on a Dante audio network.
It is useful when the sound of a TV, including built-in apps and the tuner, has to reach a distributed system based on Dante: a processor, a matrix or amplifiers in other rooms. One HDMI lead goes to the ARC socket of the screen and one network cable to the switch; latency is set in Dante Controller. AES67 RTP transport is also supported, for integration with systems that follow that standard.
Key features
- Converts 2-channel ARC audio into Dante
- Sampling at 44.1, 48 or 96kHz with 24-bit depth
- Latency chosen in Dante Controller among 2, 3, 4, 5 and 10ms
- Works with AES67 RTP transport
- Class 0 PoE power (IEEE 802.3af) or external 12V supply
Connections
The input is an HDMI socket that only takes stereo ARC audio; the output is an RJ45 port towards the 100Mbps Dante network. Without a PoE switch the unit can run from a 12V 1A adapter wired to the 2-pin Phoenix terminal. The housing is 120 x 47 x 26mm and the shipping weight about 0.3kg; a quick start guide is supplied.
