USB audio interface for Dante networks, in both directions

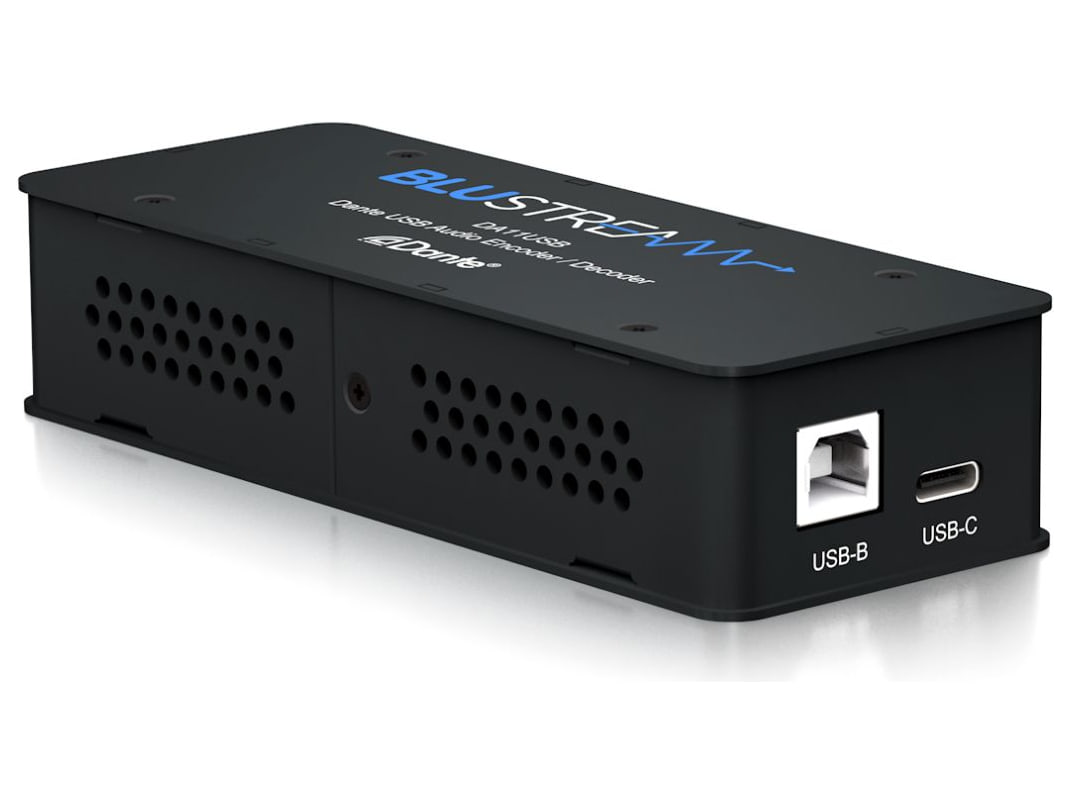

The Blustream DA11USB brings audio from a computer or other USB device into a Dante system and, going the other way, hands one mono channel from the network back to that USB device.
Towards the network, the DA11USB turns the two channels it receives over USB into a Dante stream; from the network, it picks up a single mono channel and presents it to the computer as an ordinary sound card, with no dedicated drivers since it follows USB Audio Class 1.0. It offers a USB Type-B socket plus a USB-C socket, and a switch decides which one is active. Power comes from the switch over PoE or, where the switch cannot provide it, from the 5 V of the attached USB port. Besides Dante it also handles AES67 transport over RTP, handy for working with equipment from other makers. It suits meeting rooms, classrooms and sound distribution systems where a laptop has to join the networked audio setup.
Key features
- Dante encoding of 2 audio channels coming from USB
- Decoding of one mono Dante channel to the USB device
- Sockets for USB Type-B or USB-C, picked with a switch
- Sample rates of 44.1 and 48 kHz at 16-bit
- Dante latency selectable at 1, 2 or 5 ms in Dante Controller
- Works with AES67 RTP transport
- Powered by Class 3 PoE (IEEE 802.3af) or 5 V from USB
Technical data
The DA11USB has one RJ45 port for the 100 Mbps Dante network, a USB Type-B socket plus a USB-C socket. It measures 120 x 26 x 47 mm (width, height, depth) and weighs 0.3 kg packed; it runs between 0 and 40 °C. The box holds the unit, a 1 m USB-A to USB-B lead, a 1 m USB-C lead and a quick guide.
