Two-channel bidirectional Dante audio converter, analogue and digital

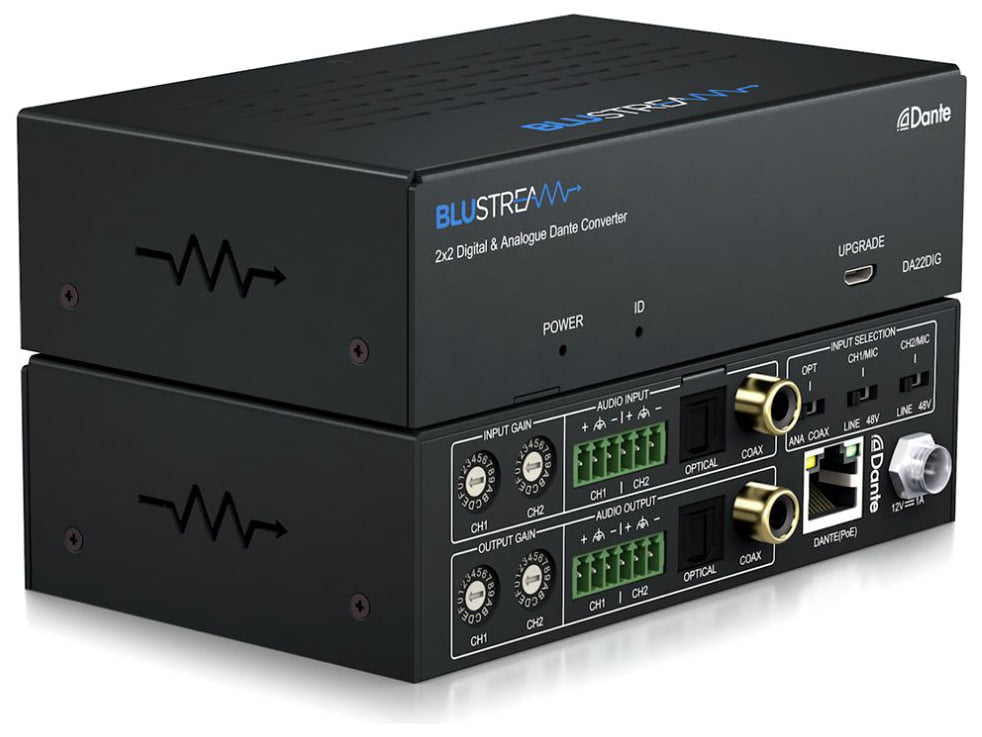

The Blustream DA22DIG puts two channels of analogue or digital audio onto a Dante network and, at the same time, turns a Dante stream back into two channels available in both analogue and digital form.
It is used to connect sources and devices without a network port to a Dante system: a mixer, a player, an amplifier or a microphone. The input type, analogue or digital, is chosen with the on-board selectors and the unit works as soon as it is connected. A PoE switch is all it needs for power; if the switch cannot supply it, the bundled 12 V adapter takes over. The analogue input also accepts a microphone, with switchable 48 V phantom power, and the converter handles AES67 transport.
Key features
- Encoding of two analogue or digital channels to Dante and decoding from Dante to analogue and digital outputs
- Digital input selectable between Toslink optical and RCA coaxial
- Configurable mic input with 48 V / 0.5 mA phantom power
- Separate adjustment of input sensitivity and output gain
- Sampling at 44.1, 48 and 96 kHz with 24-bit resolution
- Dante latency of 1, 2 or 5 ms, set in Dante Controller; AES67 transport
- PoE to IEEE 802.3af (Class 3) or an external 12 V / 1 A adapter
Connections
Inputs: two balanced or unbalanced analogue channels on a 6-pole Phoenix terminal, one S/PDIF optical and one RCA coaxial. The outputs mirror this: two analogue channels on a 6-pole Phoenix, one optical and one coaxial. Dante runs through a single RJ45 port with PoE. Setup is done with four 16-position rotary dials and three three-position switches. The housing measures 135 x 80 x 38 mm; the box includes the mounting kit, the 12 V adapter and a quick guide.
