Two-output 4K HDMI splitter with 7.1 to stereo audio downmix

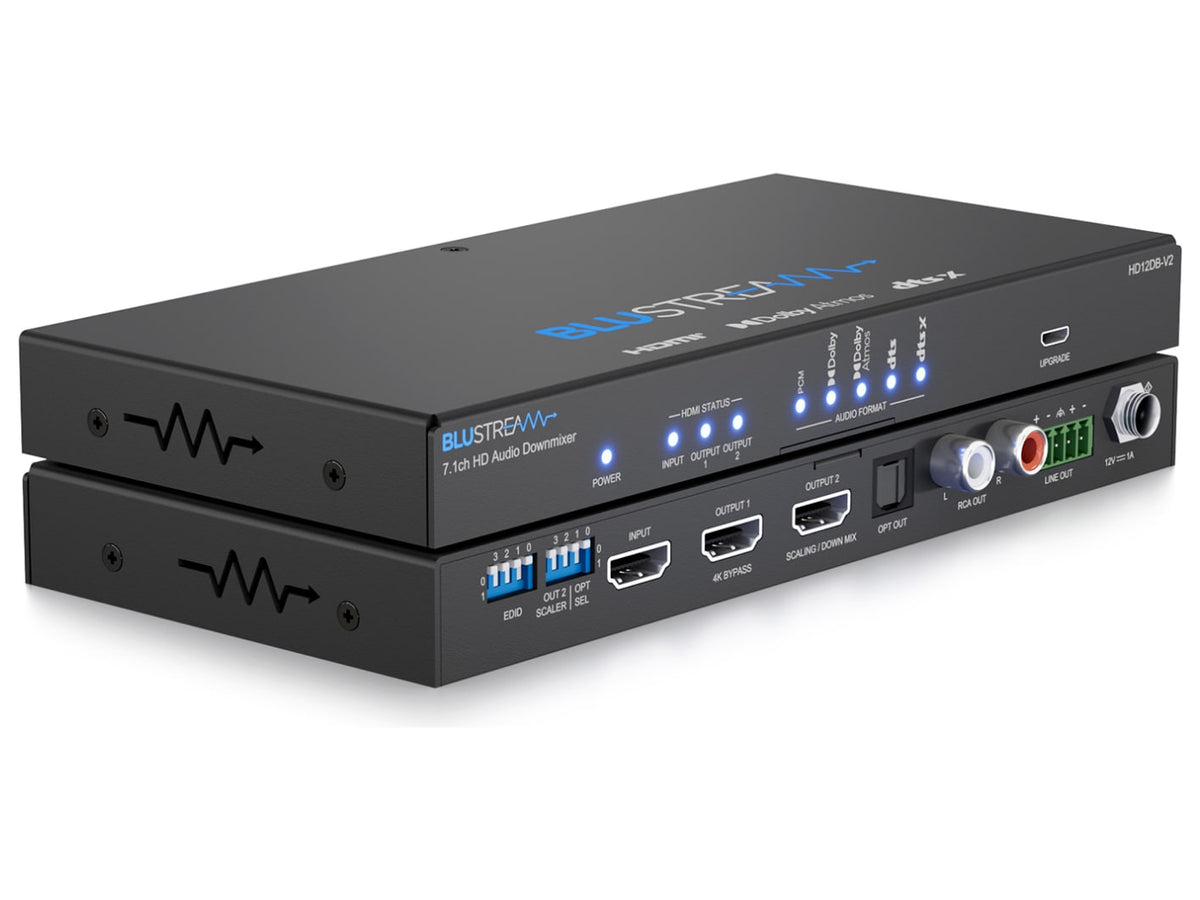

The Blustream HD12DB-V2 splits a 4K HDMI signal across two outputs and converts Dolby or DTS audio of up to 7.1 channels into a stereo signal, offered on HDMI as well as optical and analogue outputs.
Its place is the multi-room system where surround zones and two-speaker zones live side by side, along with screens of differing resolutions. The first HDMI output repeats the original signal, video up to 4K 60Hz in 4:4:4 and multichannel audio included, for the surround amplifier or other compatible equipment. The second output can lower the video from 4K to 1080p for an older screen. The internal digital-to-analogue converter derives a stereo signal from multichannel audio (Dolby Atmos and DTS:X included at the input), which leaves simultaneously on two analogue RCA, on a balanced or unbalanced terminal and on the optical output. HDR and Dolby Vision video at 60Hz pass without issue. Two DIP switches set EDID, scaler and optical output.
Key features
- One 4K 60Hz in 4:4:4 HDMI input, with HDR and Dolby Vision, to two outputs
- Output 1 pass-through with original video and multichannel audio
- Output 2 with video scaled from 4K to 1080p
- Stereo downmix of Dolby and DTS up to 7.1 channels
- Multichannel audio input including Dolby Atmos and DTS:X
- Stereo outputs on HDMI, optical, RCA and Phoenix terminal
- HDCP 2.2 and advanced EDID
Connections
One HDMI Type A input and two outputs, a Toslink optical output, two left/right analogue RCA, a balanced or unbalanced 5-pin Phoenix terminal, two 4-way DIP switches and a micro-USB for updates. It measures 195 x 21 x 93 mm and runs on 12 V 1 A. In the box: power supply, mounting kit, four rubber feet and quick guide.
