HDBaseT CSC receiver for 4K signals up to 70m

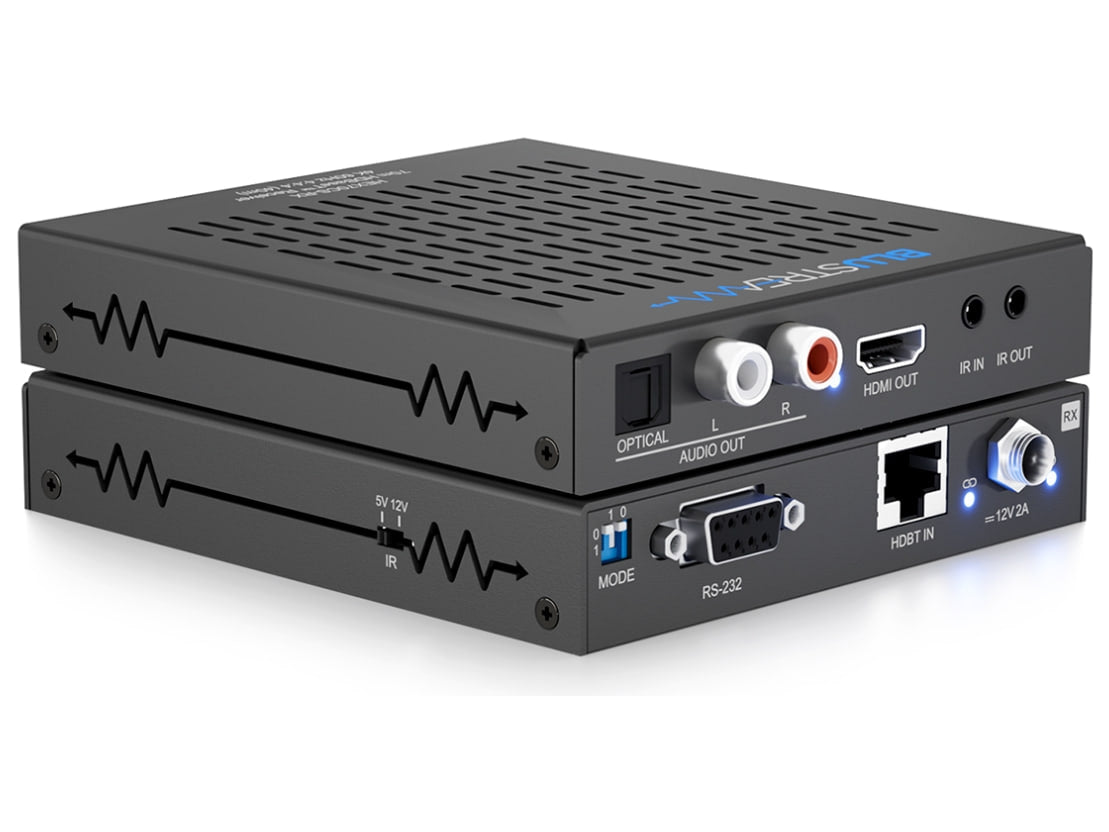

The HEX70CS-RX is the HDBaseT receiver that, at the far end of a network cable, delivers an HDMI 2.0 signal with HDCP 2.2: 4K 60Hz in 4:4:4 up to 40m and 1080p up to 70m.
It pairs with a Blustream HDBaseT transmitter or matrix and, besides video, receives two-way audio, IR and RS-232; PoC power can come from the transmitter side. The outgoing HDMI signal is regenerated to reduce compatibility, HDCP and handshake problems with the display. Source audio is also available as analogue stereo and coaxial digital, alongside HDMI, to feed an amplifier or a soundbar in the same room.
Key features
- HDMI 2.0 at 18Gbps with HDR through CSC technology
- Resolutions from VGA to WUXGA and from 480i to 4K
- Pass-through of multichannel and object-based surround formats defined by HDMI
- Analogue and coaxial digital audio outputs working together
- IR and RS-232 in both directions, advanced EDID handling
Technical data
Connections: HDBaseT RJ45 input, HDMI Type A output, DB9 serial, 3.5mm jacks for IR in and out, one S/PDIF digital RCA and two analogue RCA. Power 12V 2A with screw connector (adapter not included), consumption 5.6W. Without connectors it measures 113 x 124 x 22mm and weighs 0.35kg; a mounting kit is included.
