Multi-format HDBaseT extension set with HDMI, USB-C and DisplayPort

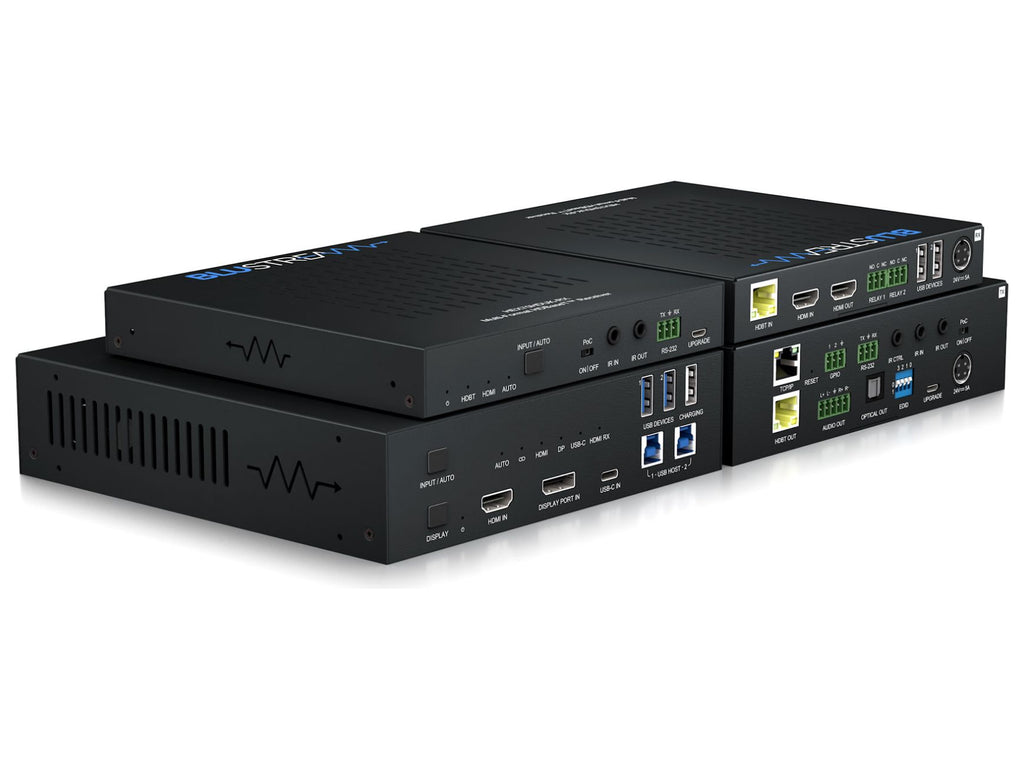

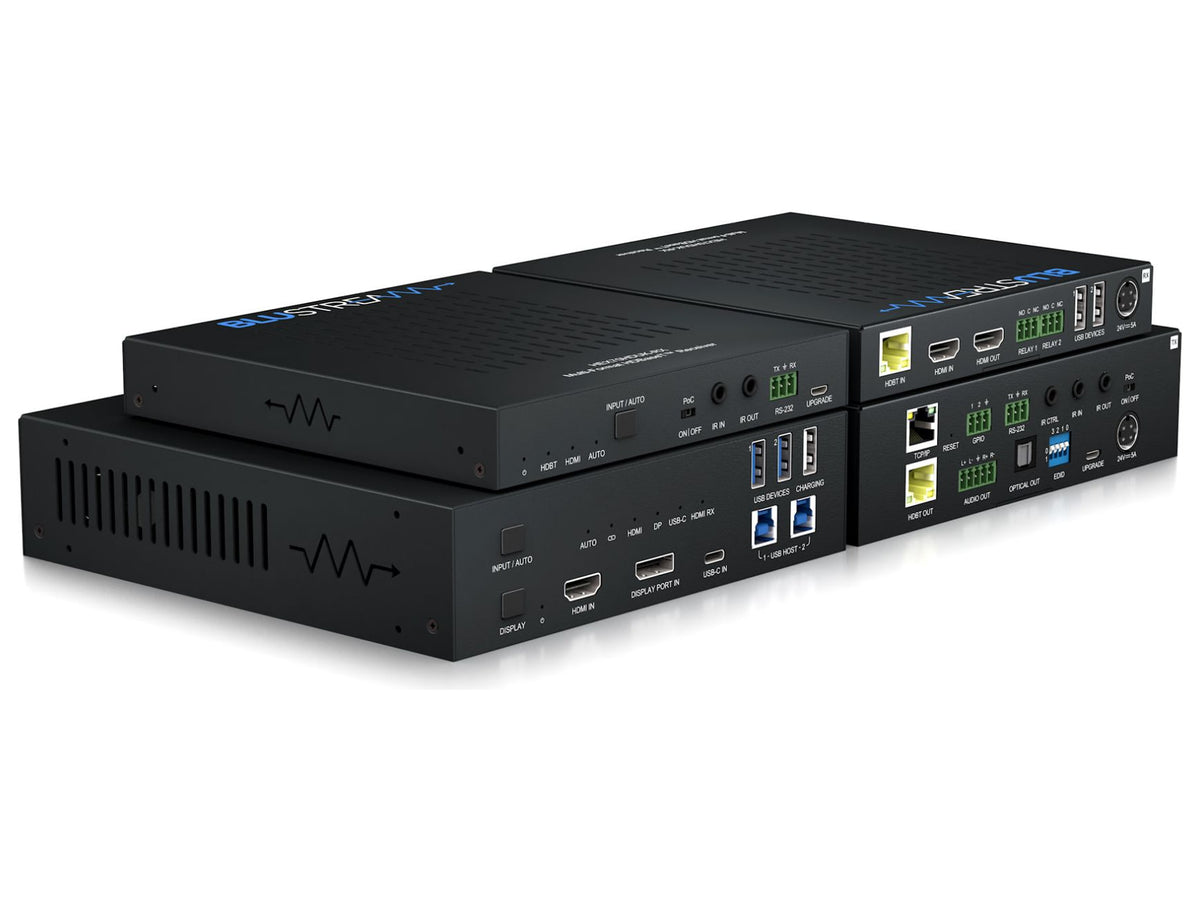

The Blustream HEX70HDUK-KIT is an HDBaseT transmitter and receiver set that accepts HDMI, USB-C and DisplayPort sources and carries them over one network cable up to 40 m in 4K or 70 m at 1080p.
It is designed for meeting rooms and classrooms, where laptops with differing outputs turn up at the table. The HEX70HDUK-TX transmitter gathers the three sources and sends 18Gbps 4K 60Hz in 4:4:4 video with HDR and HDCP 2.2, thanks to CSC technology. Beyond video the link carries USB 2.0, so a webcam or peripheral plugged in near the screen reaches the computer, along with IR commands both ways. The HEX70HDUK-RX receiver also has a local HDMI input for one more source beside the display. The set switches the screen on and off by itself, extracts audio and is configured from a web page; it can also be run from the front panel, IR remote, RS-232 serial or TCP/IP network. Power travels over the cable (PoC) from one unit to the other.
Key features
- HDMI, USB-C and DisplayPort inputs on the transmitter
- 4K 60Hz in 4:4:4 up to 40 m, 1080p up to 70 m over CAT cable
- USB 2.0 extension alongside video
- Local HDMI input on the receiver
- Automatic display control and relay outputs
- Control from web page, panel, IR remote, RS-232 serial or TCP/IP network
- Advanced EDID and HDCP handling
Connections
Transmitter: HDMI, USB-C and DisplayPort in, HDBaseT RJ45 out, RJ45 for TCP/IP, 3-pin Phoenix for RS-232, two IR input jacks and one output, three USB Type A (one for charging only) and two USB Type B; it measures 183 x 44 x 173 mm. Receiver: HDMI and HDBaseT RJ45 inputs, HDMI output, RS-232, two 3-pin Phoenix for relays, IR jacks and two USB Type A; it measures 155 x 24 x 155 mm. In the box: 24 V 5 A power supply, USB lead, IR emitter and receiver, RS-232 lead, two mounting kits and quick guide.
