Video over IP receiver with scaler and Dante audio

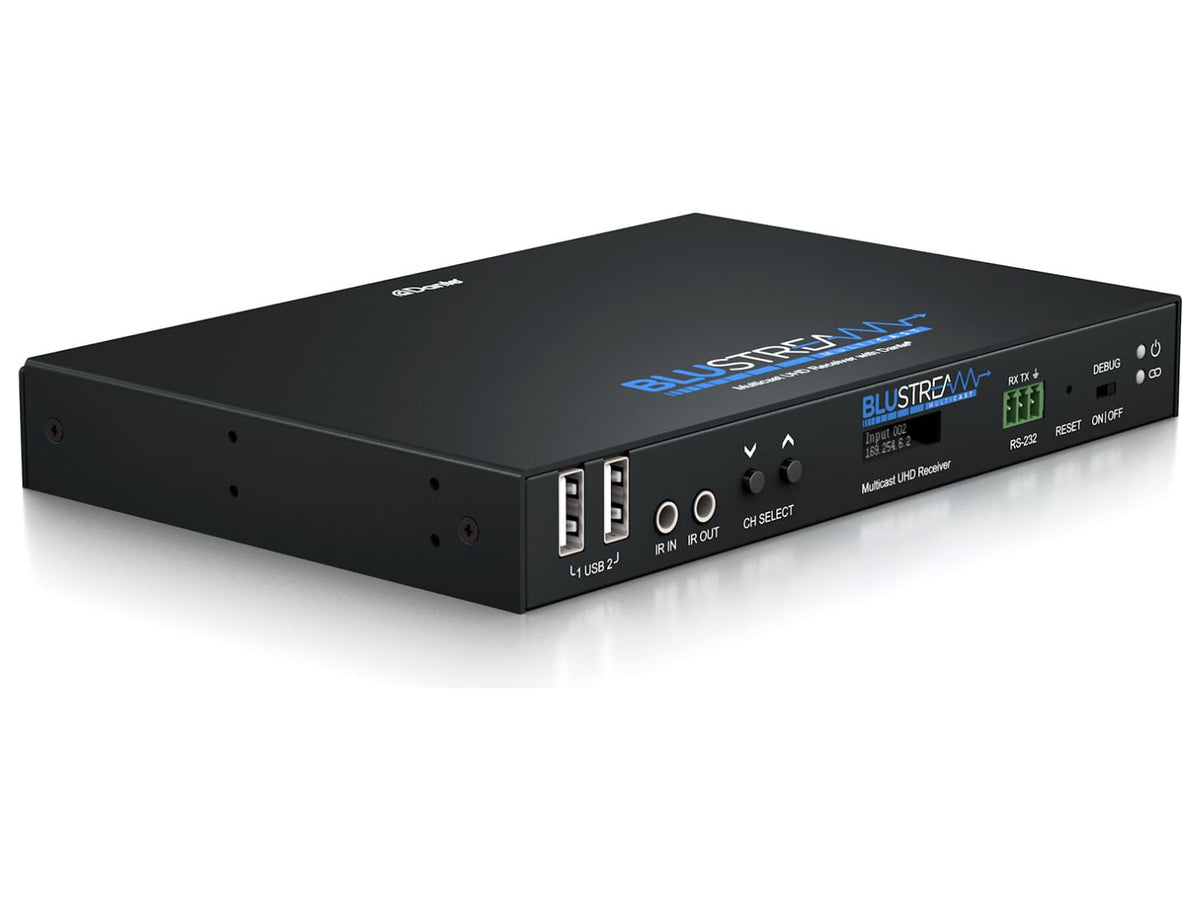

The Blustream IP250UHD-RX takes the HDMI video sent by the IP Multicast platform from a 1Gb managed network and delivers it to the screen, adapting the resolution and handling Dante audio as well.
It works with an existing IP200UHD installation, yet can also run as a system of its own. With visually lossless compression and one frame of delay (16 to 33 ms depending on frame rate) it receives video, two-way IR, RS-232 and USB/KVM up to 100 m over network cable, or over longer runs through the SFP fibre port. The built-in scaler raises or lowers the resolution to suit the screen, with output up to 4K 30Hz. Its two RJ45 ports can carry video and Dante together or on separate networks. An optical input lets the stereo digital audio of a nearby device enter the Dante system. Power comes from PoE or a local supply.
Key features
- Video output up to 4K 30Hz, with up- and down-scaling
- Built-in 2-channel Dante transmitter and receiver
- Optical S/PDIF input to bring stereo audio into the Dante network
- Analogue L/R outputs, balanced or unbalanced
- Bitstream of multichannel surround audio, object-based formats included
- Separate routing of audio, video, IR commands, RS-232 serial and USB/KVM
- HDCP 2.2, practically unlimited system size
Connections
One HDMI Type A output, two RJ45 network ports, one SFP port (fibre module not included), one optical input, a 5-pin Phoenix terminal for audio out, a 3-pin Phoenix for RS-232, two USB Type A for KVM, a 3.5 mm stereo jack for IR in, a 3.5 mm mono jack for IR out and a micro-USB for updates. It draws 8 W over PoE (9.2 W at most). In the box: IRR IR receiver, IR1 emitter, 3-pin terminal, mounting kit and quick guides.
