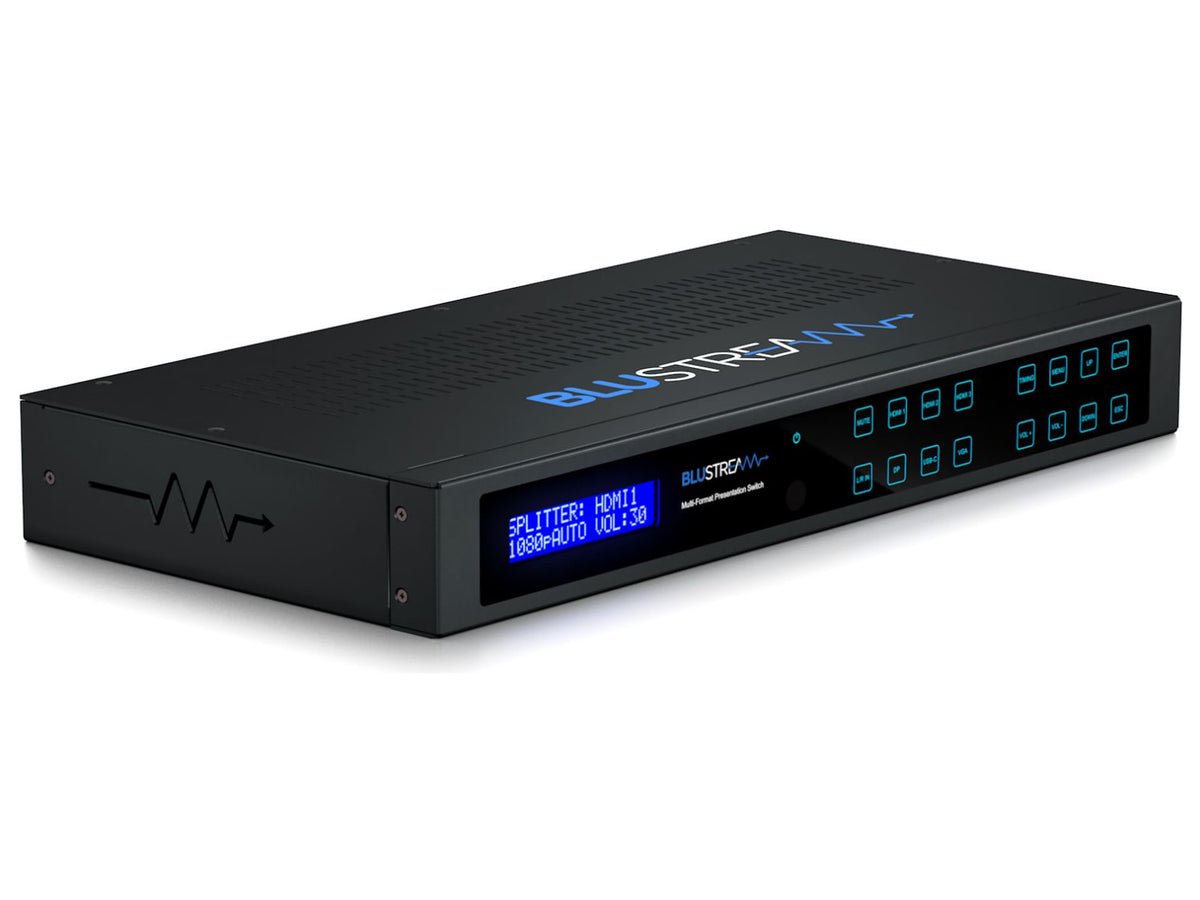

Six-input, two-output 4K multi-format presentation switcher
The Blustream MFP62 gathers up to six sources in different formats (three HDMI, one USB-C, one DisplayPort and one VGA) and sends them to two HDMI outputs, with scaler, audio mixer and microphone input.
It is designed for meeting rooms, classrooms and hybrid work spaces, where new and older laptops, a camera or a desktop PC get connected. The two HDMI outputs can show different sources and resize the video to suit each screen or projector. It handles 18Gbps HDMI 2.0 with HDR up to 4K 60Hz in 4:4:4, while USB-C (Alt mode included) and DisplayPort reach 4K 60Hz at DP 1.2. On the audio side there is a mixer with levels set one by one: the microphone input accepts line level, 48 V phantom power or one balanced or unbalanced channel, and analogue audio can be embedded into HDMI or extracted simultaneously on analogue and coaxial digital outputs. Setup is done from the web page; control comes from the front panel, IR remote, RS-232 serial or TCP/IP network.
Key features
- Inputs: 3 HDMI, 1 USB-C, 1 DisplayPort, 1 VGA
- Two HDMI outputs with scaler
- 18Gbps HDMI 2.0 with HDR, up to 4K 60Hz in 4:4:4
- Microphone input with 48 V phantom
- Audio mixer with independent levels
- Analogue audio embedding and extraction
- HDCP 2.2 and advanced EDID
Connections
Video inputs: three HDMI Type A, one USB-C, one DisplayPort and one VGA. Outputs: two HDMI Type A, one RCA S/PDIF and two analogue RCA. Then a 3.5 mm stereo jack for audio in, a 3-pin Phoenix terminal for the microphone, a 9-pin RS-232 connector, an RJ45 for TCP/IP, a jack for the IR receiver and a micro-USB for updates. It takes 1 rack unit and measures 344 x 44 x 168 mm; it runs on 24 V 1 A. In the box: remote control, power supply, rack kit, IR receiver and quick guide.
