4x4 4K video processor for video walls, multiview and matrix use

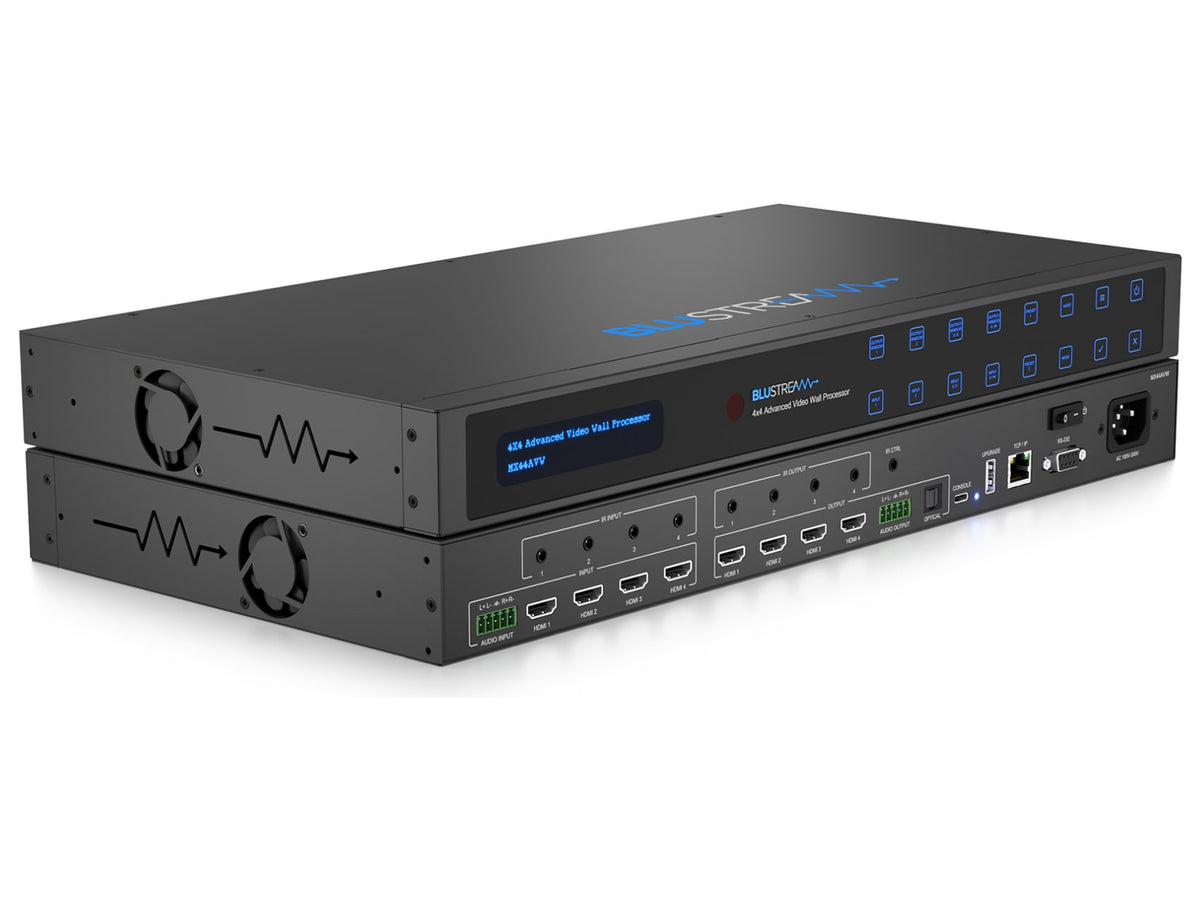

The MX44AVW is an HDMI 2.0 video processor for 4K signals with four inputs and four outputs that can work as a seamless switching matrix, as a video wall controller or as a four-window multiview system.
In video wall mode each panel can be overlapped and rotated independently, giving creative layouts for shops, showrooms and exhibitions. In multiview it offers preset or custom layouts with PIP, POP, PBP and screens split into two, three or four windows. HDMI audio is extracted at the same time to analogue and optical outputs, and an analogue input is also present. Setup is done from a browser; for daily use there are front buttons, the IR remote, RS-232 and TCP/IP. A 1080i picture is accepted only in matrix and multiview modes, not in video wall mode.
Key features
- Three modes: 4x4 matrix, video wall, multiview
- Video wall with overlap and rotation of single panels
- 18 Gbps HDMI 2.0, 4K at 60 Hz in 4:4:4 with HDR
- Resolutions from VGA to WUXGA and from 480i to 4K
- IR command routing
- Remote control and 5 V IR receiver supplied
- HDCP 2.2 and advanced EDID handling
Connections
Four HDMI type A inputs and four outputs; one 5-pole Phoenix for analogue audio in and another for audio out, plus an optical S/PDIF; DB9 serial; console on USB-C; RJ45 for TCP/IP control; five IR input minijacks and four outputs; USB-A for firmware. Internal 100-240 V supply. 1U chassis, 440 x 240 x 44 mm.
Box contents
Processor, remote control, 3.5 mm jack-to-jack IR cable, 19" rack kit, four feet, quick reference card and IEC mains lead.
