Rack power distribution unit with eight manageable IEC outlets and consumption metering

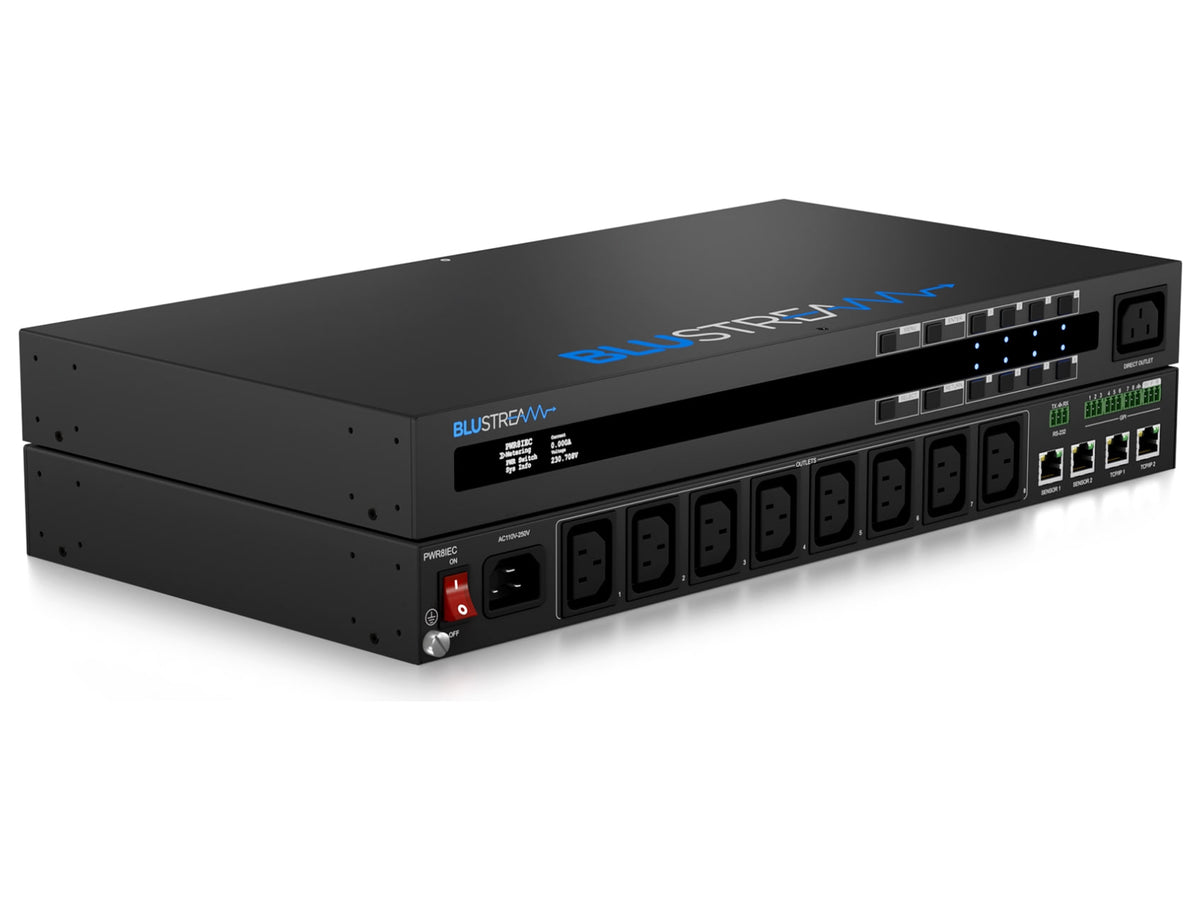

The Blustream PWR8IEC is a smart 1U power distribution unit (PDU) that measures consumption and switches each of its eight controlled IEC outlets on or off individually.
It takes mains from a C20 inlet (110-250 V, up to 16 A) and spreads it over nine C13 outlets: eight switchable and one always live, for a device that must never go off. For every outlet it reads voltage, current, power and energy used, and allows timed schedules plus power-on and power-off sequences. From firmware 1.5.0 onwards an automatic check function uses ICMP or TCP to confirm that the connected device responds and restarts it when necessary. It can be operated over TCP/IP or RS-232, with the front buttons or through relay contacts, so automation systems or a BMS can drive it; remote access goes through a password-protected web interface. The two network ports keep access uninterrupted, with SSL connections.
Key features
- 16 A IEC C20 inlet, nine 10 A C13 outlets (eight switchable, one fixed)
- Readings of voltage, current and power, plus energy used
- Automatic restart of unresponsive devices, set per outlet
- Overload protection and interference filtering
- Timed schedules and power-on sequences
- Two ports for temperature, humidity, pressure or security sensors
- 1U format for 19-inch racks, ears included
Connections
Besides the IEC sockets there are four 3-pole Phoenix terminals for relays, an RS-232 port on a 3-pole Phoenix, two RJ45 for TCP/IP control and two RJ45 for sensors. The power supply is internal and the housing measures 437 x 225 x 44 mm. In the box: DB9-to-Phoenix serial lead, Phoenix plugs, rack ears, feet and IEC cable.
