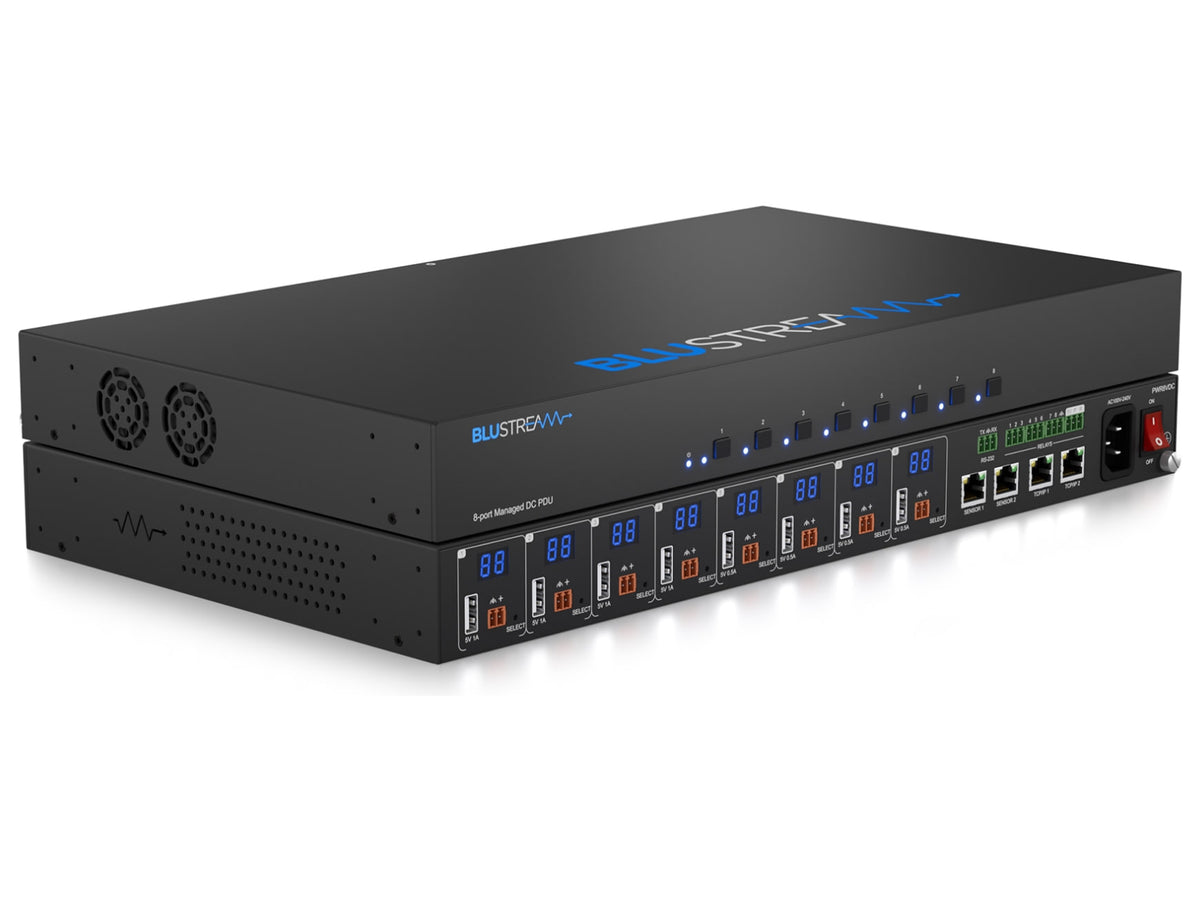

Managed low-voltage power distribution unit with eight outputs
The PWR8VDC is a smart rack PDU that powers up to eight low-voltage devices, measuring consumption and switching every single output on or off.
It takes mains power from an IEC C14 inlet and spreads it across eight terminal outputs, each adjustable to 5, 9, 12, 18 or 24 V with a maximum of 30 W, plus eight managed USB-A ports. Voltage, current, power and energy used can be read for every output. The eight-channel watchdog checks connected devices via ICMP or TCP and restarts them automatically if they stop responding (from firmware 1.5.0). It is managed over IP, with two ports for service continuity and SSL connection, over RS-232, from the front buttons or through relays and sensors tied to control systems or a BMS. Schedules, power-up sequences and password-protected remote access are handled in the web interface.
Key features
- Eight outputs: 5 V at 6 A, 9 or 12 V at 2.5 A, 18 or 24 V at 1.25 A
- Eight 5 V USB-A ports: 1 A on the first four, 500 mA on the rest
- 110-250 V input up to 10 A
- Readings for voltage, current, power and energy use
- Overload protection and noise filtering
- Sensor ports for temperature, humidity, pressure or security
- 1U format for 19" racks, kit included
Connections
10 A IEC C14 inlet; eight 2-pole Phoenix and eight USB-A outputs; four 3-pole Phoenix for relays; 3-pole Phoenix for RS-232; two RJ45 for TCP/IP and two RJ45 for sensors. Chassis of 437 x 245 x 44 mm.
Box contents
PDU, DB9 to Phoenix serial cable, four 3-pole Phoenix terminals, 19" rack kit, four feet, quick reference card and IEC lead.
