10 Gbps switch, USB 3.2 Gen 2, for two computers and four peripherals
The SW12USB from Blustream is a USB 3.2 Gen 2 switching unit that lets two computers share up to four USB peripherals, moving between them with transfer speeds of up to 10 Gbps.
It is designed for meeting rooms, control desks and classrooms where a webcam, a microphone, a soundbar or a touch panel must serve in turn the room PC and a guest's laptop. The two computers connect over USB-C; peripherals can use two USB-C and two USB-A sockets. Switching happens automatically, by sensing which computer is active, or manually with the front buttons, from the web interface, over TCP/IP or via RS-232, so the switch fits into room control systems. Older peripherals, USB 2.0 or 1.1, work too.
Key features
- USB 3.2 Gen 2 with data transfer up to 10 Gbps
- Two computers connected over USB-C
- Four peripheral ports: two USB-C and two USB-A
- Automatic switching on signal detection
- Control from front buttons, web interface, TCP/IP and RS-232
- Backward compatible with older USB 2.0 or 1.1 devices
Connections

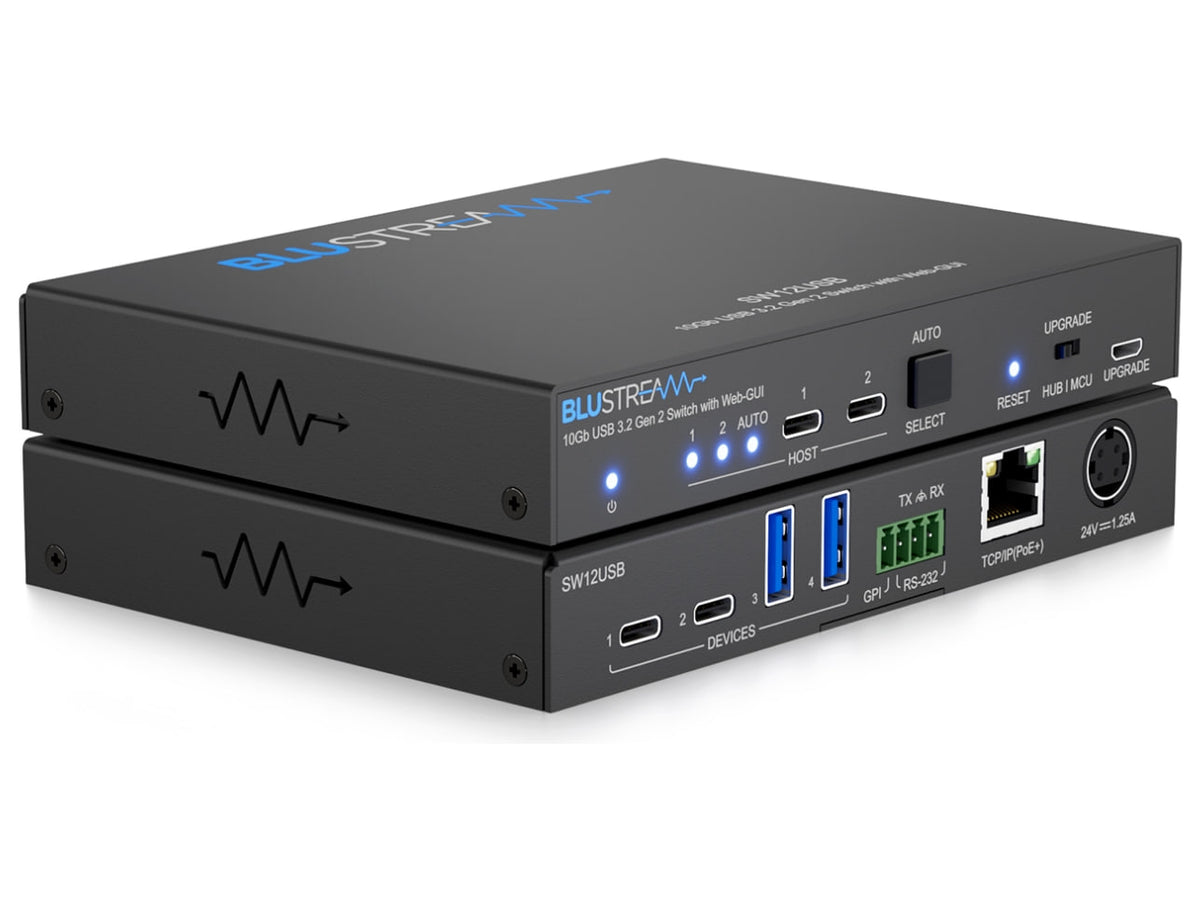

Two USB-A and two USB-C sockets for peripherals, two USB-C for computers, an RJ45 for IP control, a 4-pole Phoenix terminal for GPI and RS-232 and a micro-USB for firmware updates. The switch measures 150 x 110 x 23 mm and runs from the bundled 24 V adapter with 4-pole DIN plug; a mounting kit and quick guide are also included.
