Four-input HDMI 2.1 switcher for 8K and 4K 120 Hz signals

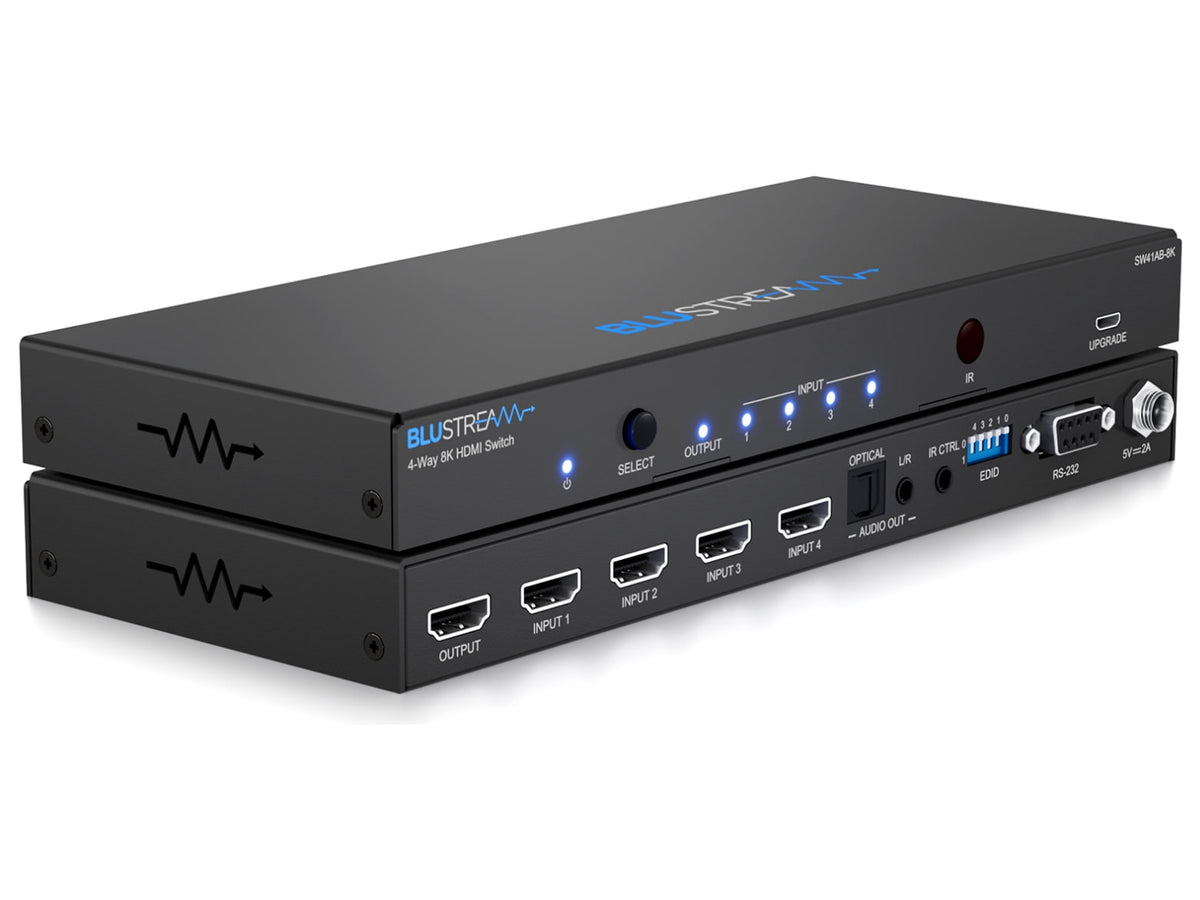

The SW41AB-8K is an HDMI 2.1 switch that gathers four sources and sends them, one at a time, to a single output, keeping 8K at 60 Hz and 4K at 120 Hz signals intact.
It is meant for systems where current consoles, players and computers rely on HDMI 2.1 features such as ALLM and VRR, which are preserved. The source is chosen automatically, when the switch detects a new TMDS signal or the 5 V line of a freshly connected source, or by hand with the IR remote, the front buttons or an RS-232 command. Audio can be extracted to a stereo analogue output and an optical S/PDIF output, to feed a separate sound system. It complies with HDCP 2.3 and handles source EDID in an advanced way.
Key features
- Four HDMI 2.1 inputs switched to one output
- 40 Gbps HDMI 2.1 bandwidth with HDR
- 8K at 60 Hz in 4:2:0 10-bit, 8K at 30 Hz or 4K at 120 Hz in 4:4:4 10-bit
- ALLM and VRR support
- Multichannel bitstream audio, object-based formats included
- Automatic switching with 5 V and TMDS detection
Connections
Four inputs and one output on 19-pin HDMI type A; optical S/PDIF output and 3.5 mm stereo minijack for audio; 3.5 mm minijack for the IR receiver; DB9 serial port. Power is 5 V 2 A. Size 196 x 104 x 41 mm with connectors, without the removable feet.
Box contents
Switcher, REMSW41 remote control, 5 V 2 A power supply, IRR IR receiver, mounting brackets and user manual.
