4K wireless multiview presenter for meeting rooms and classrooms

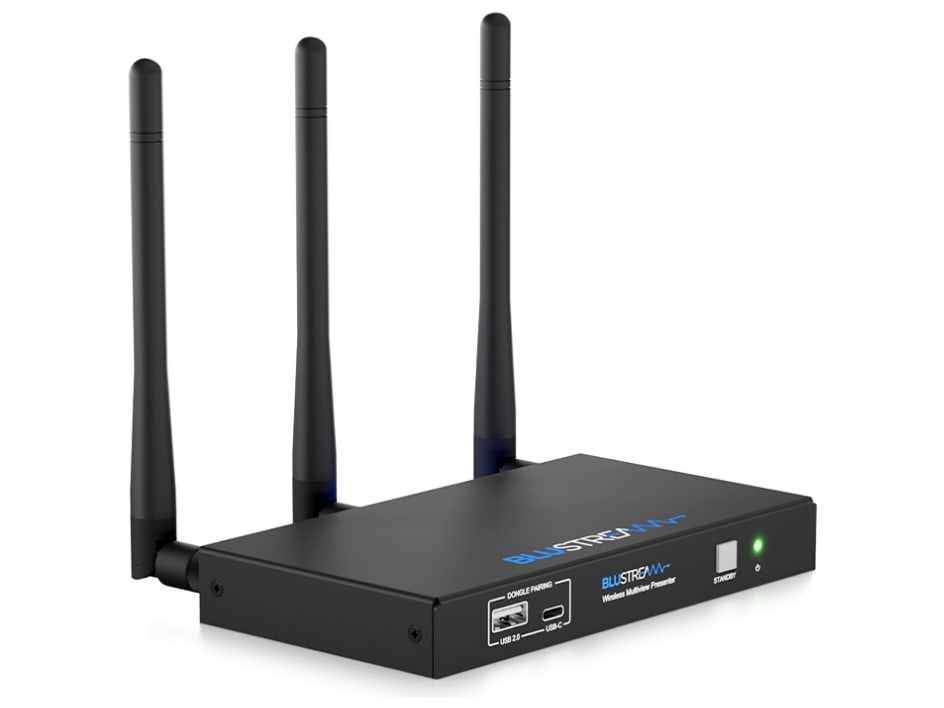

The Blustream WMF51 is a presentation switch that receives wireless content from AirPlay, Miracast, Chromecast and Blustream dongles and puts it on one HDMI output, up to four at a time in multiview.
It is a BYOD solution for meeting rooms, classrooms and small collaboration spaces: participants share the screen of their own device without cables, through the office network or the built-in 2.4/5GHz Wi-Fi hotspot, which reaches 1080p in point-to-point mode. It also accepts the plug and play dongles WMF-USBC and WMF-HDMI; with these and with Miracast, USB 3.0 touch-back is available, so the computer can be operated from a touch screen. The internal scaler drives the output up to 4K 60Hz in 4:2:0. An on-screen menu with preview, a whiteboard and annotation over the picture round off the functions; control comes from the web interface, the front panel, serial RS-232 or the TCP/IP network.
Key features
- Wireless AirPlay, Miracast, Chromecast and Blustream dongle inputs to one HDMI output
- Multiview of up to four signals with configurable layout
- Scaler with output up to 4K 60Hz in 4:2:0
- 2.4G/5G Wi-Fi hotspot and dual LAN port to join the existing network
- Analogue stereo audio output
- Manual or automatic source selection
Technical data
HDMI Type A output, 3.5mm stereo jack for audio, 3-pin Phoenix for RS-232, two RJ45 (1000 and 100Mbps), a USB 3.0 Type A for touch-back, a USB 2.0 Type A and a USB-C for pairing dongles, three SMA connectors for the MIMO Wi-Fi antennas (802.11ac, also b/g/n) with WPA and WPA2 encryption. Power comes via PoE (802.3af) or the included 12V 1.5A adapter; it draws 3.25W in standby and 11W at full load. It measures 165 x 22 x 90mm without antennas.
