4K multi-format wireless presentation switch with two HDMI outputs

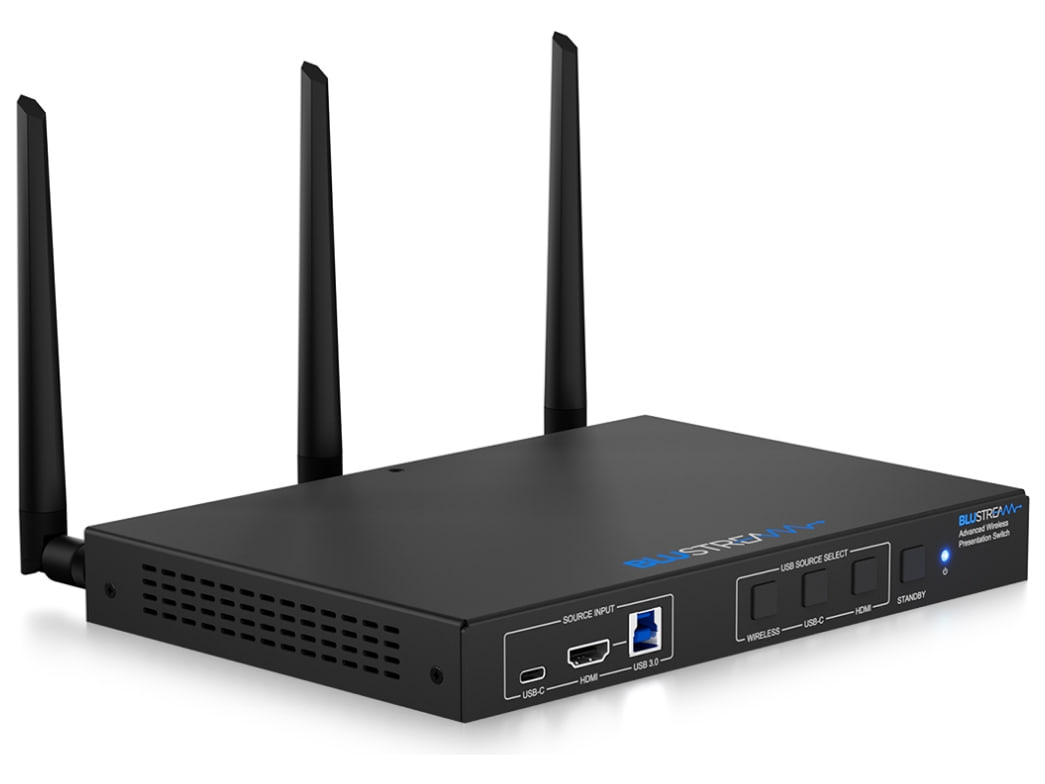

The WMF72-V2 is a presentation switch that gathers wired HDMI and USB-C sources and wireless AirPlay, Miracast and Chromecast sources, sending them to two HDMI outputs.
The two outputs can mirror the same picture or work as an extended desktop, useful in more elaborate video conferencing rooms. Multiview places up to five sources side by side with a configurable layout, and the built-in scaler drives the main output up to 4K at 60 Hz with 4:4:4 colour and the secondary one up to 1080p at 60 Hz. The internal 2.4 and 5 GHz Wi-Fi access point welcomes guest devices, while the two LAN ports tie it into the existing network. With the WMF-HDMI-D or WMF-USBC-D dongles it becomes a BYOD solution for meeting rooms, classrooms and shared work areas.
Key features
- Wired sources (HDMI, USB-C), wireless ones (AirPlay, Miracast, Chromecast) and Blustream dongles
- Multiview of up to 5 sources with configurable screen arrangement
- USB-C with DisplayPort, USB, 1 Gbps networking and charging up to 65 W
- USB webcam and microphone shared over Wi-Fi, plus USB touch-back
- Digital whiteboard and annotations drawn over the screen
- On-screen menu with preview, manual or automatic source selection
- Balanced or unbalanced analogue audio output
Connections
One HDMI and one USB-C input, two HDMI outputs, audio out on a 5-pin Phoenix terminal, RS-232 on a 3-pin Phoenix and two 1 Gbps RJ45 network ports. There are also three USB 3.0 Type A ports, one USB 3.0 Type B, USB 2.0 Type A and Type C ports for pairing and three SMA connectors for the 802.11ac Wi-Fi antennas (b/g/n compatible) with WPA/WPA2 encryption. Control is from the front panel, over RS-232, TCP/IP or the web interface. Power is 24 V 5 A; it measures 220 x 27 x 161 mm without antennas.
Box contents
Switch, 24 V 5 A power supply, 3-pin and 5-pin Phoenix plugs, three antennas, mounting kit and quick reference card.
