A 30 A power cable with three 3 sq mm conductors in silver-plated OCC copper with square strands, FEP insulation and a shield.
EVO3 Optimum: the design

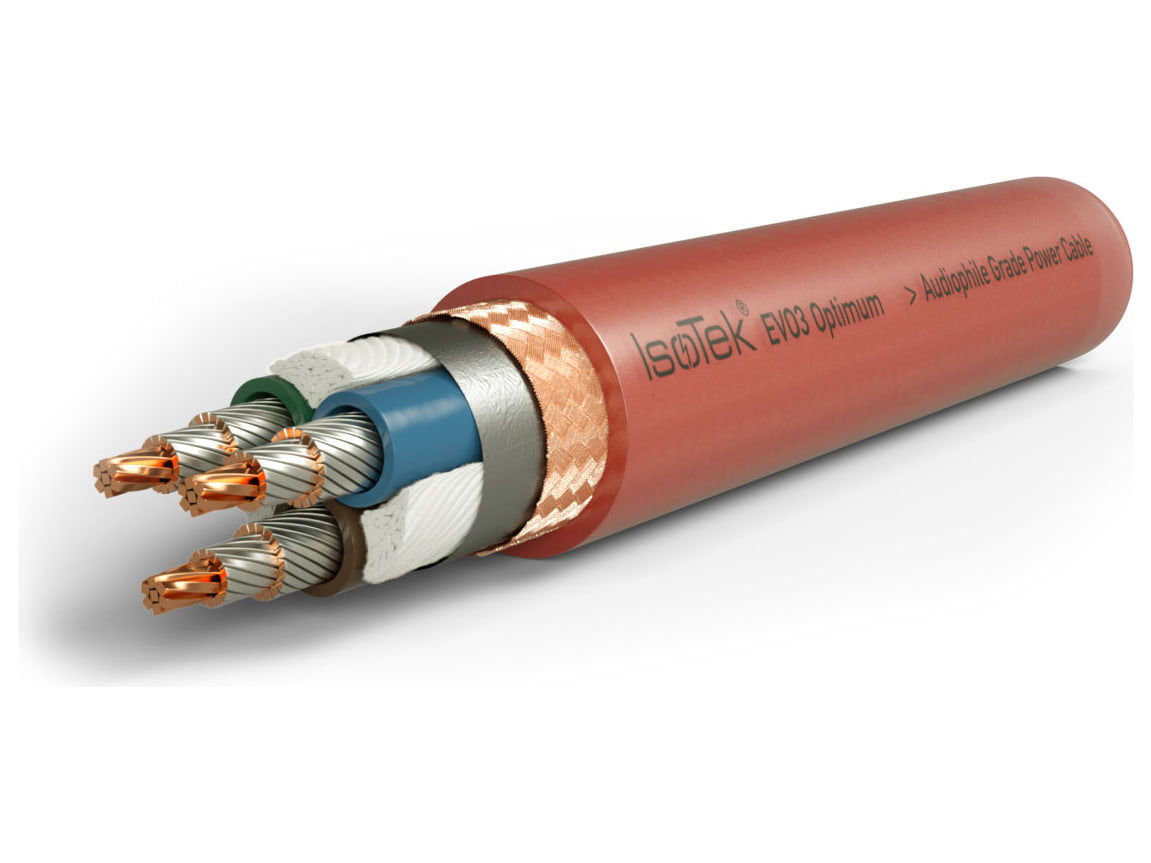

At the heart of EVO3 Optimum are three silver-plated OCC copper conductors: each strand has a square section, so the wires pack more closely. OCC copper is purer than conventional OFC, more flexible and more resistant to fatigue and corrosion.
Insulation is FEP; the three gently twisted conductors are surrounded by cotton filler and a Mylar wrap, then by an OFC copper braid that screens high frequencies. This is the cable IsoTek recommends for the largest power amplifiers.
Specifications
- Three 3 sq mm conductors with square strands
- Silver-plated OCC (Ohno Continuous Cast) copper conductors
- FEP dielectric
- Cotton filler, Mylar wrap
- Earthed OFC copper braid shield
- Flexible PVC outer jacket
- Cable rating: 30 A
- Outer diameter: 12.5 mm

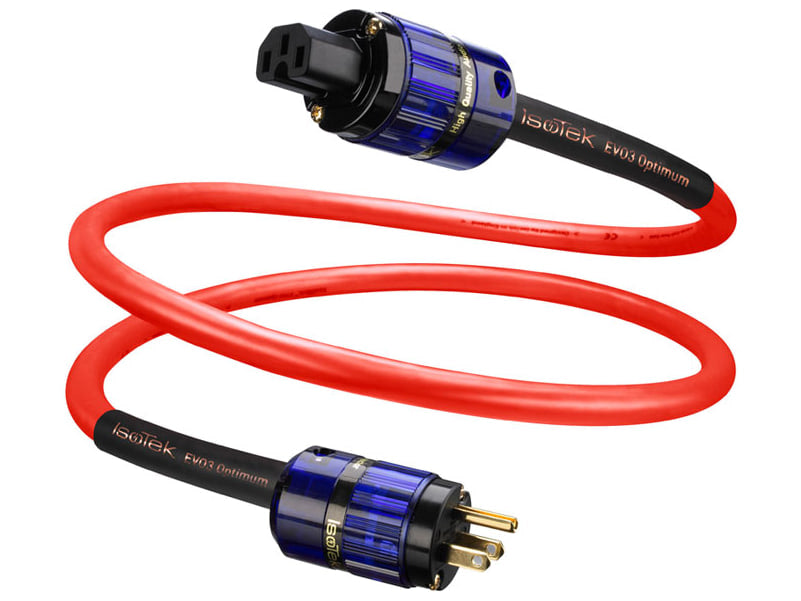

- Audiophile-grade connectors with 24ct gold-plated contacts
- Lengths: 2 m, 3 m and 5 m
