ULTRA PRO FIBER
With the advent of 4K video with HDR or Dolby Vision, wide color gamut and high resolution LPCM 24/96K audio tracks, the amount of data being transmitted over an HDMI cable has tripled. Traditional copper cables are no longer adequate.
The solution is to convert HDMI signals to optical signals and send them through a glass optical fiber at the speed of light.
ULTRA PRO Series FIBBR HDMI cables are ISF certified and are capable of carrying native 4K, uncompressed 18Gbps content up to 70 meters without any loss or interference.
The FIBBR ULTRA PRO cable received the AVS FORUM – BEST OF CEDIA 2017 award in the category “Best fiber optic HDMI cable”
DESCRIPTION:
FIBBR ULTRA PRO HDMI cables are constructed of the highest quality glass fiber, exclusively sourced from YOFC, the largest fiber producer in the world.

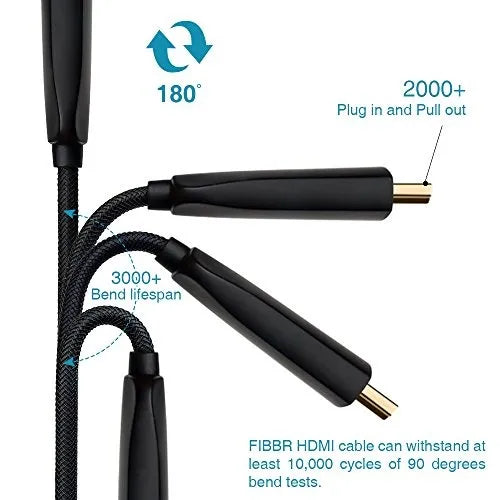

Proprietary BendRobust™ technology allows the fiber to be bent 180 degrees and ensures flexibility and durability under extreme conditions without signal interruption.
The cable is sheathed in braided PET, it is thin and flexible, extremely light (weighing about 60% less than a traditional copper cable), but it is incredibly robust.
FIBBR ULTRA PRO is a hybrid cable: the audio and video signals are transmitted over one-way optical fiber, while the copper conductors are used for the +5V power supply, EDID controls and HDCP authentication.

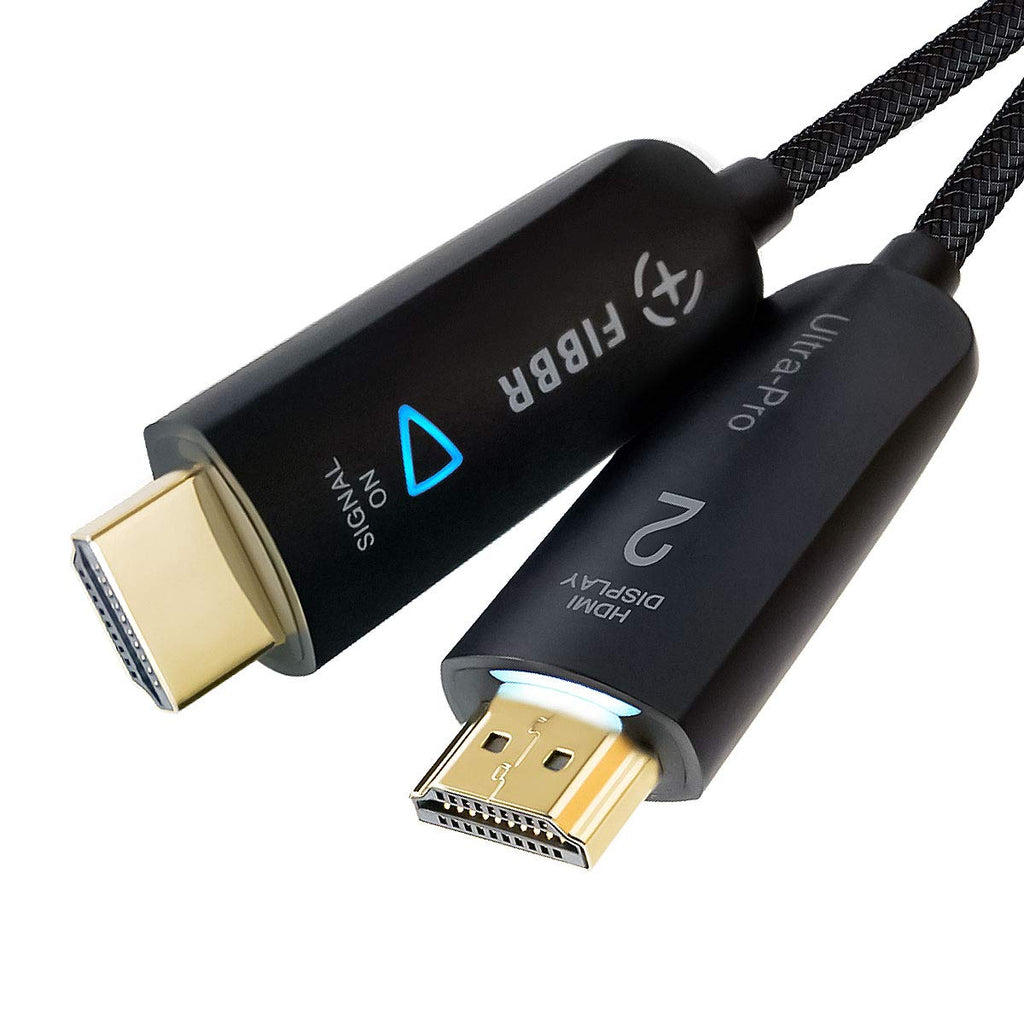

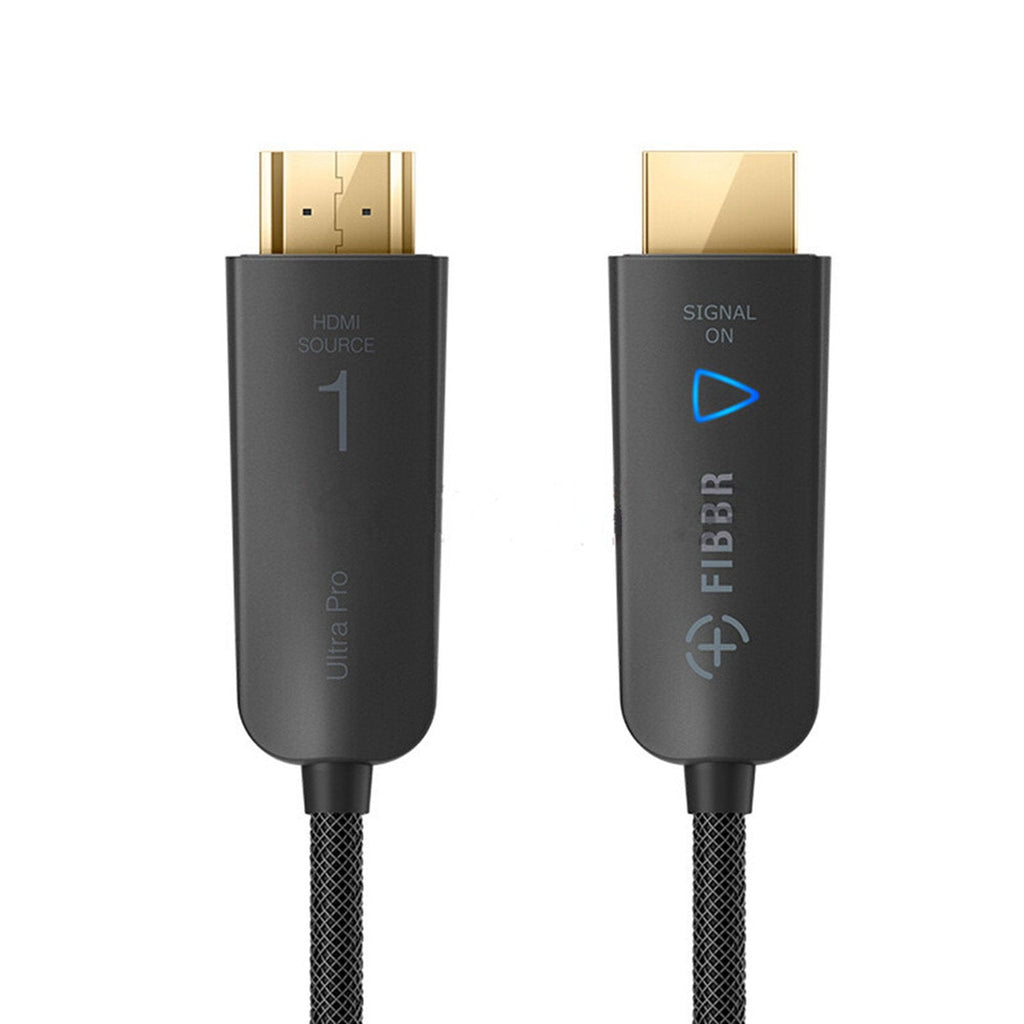

Cable installation is made easy by indicating the source side and destination (display) side on the connector. On the source connector there is an LED that confirms the operating status. A further luminous indication is present on the Display connector.
EASIER THAN ANY HDMI EXTENDER
The converters are housed inside the connectors, so there is no need to use external repeaters. In addition, there is no need for an external power supply which would require additional power supplies or patch cables.
The FIBBR ULTRA PRO cable completely eliminates the weak points: in a typical installation with HDMI repeaters there are normally 4 HDMI connections (source - transmitter and receiver - display) plus two RJ45 connectors and 1 or 2 power supplies to the repeaters.
With ULTRA PRO, source - display connections are direct and can be easily inspected. Troubleshooting is extremely simple.
TECHNOLOGICAL ADVANTAGES
YOFC is the largest optical fiber cable supplier in the world and its subsidiary FIBBR is the first active optical cable supplier in the consumer electronics industry.
ULTRA PRO cable has the lowest bend radius on the market, the lowest attenuation is thin, light and fire resistant. It is built with Halogen-free materials and complies with RoHS/REACH standards.
TECHNICAL SPECIFICATIONS
- HDMI v2.0b for UltraHD 4K
- Real fiberglass (not plastic)
- It supports HDR10, Dolby Vision, and WCG
- Support HDCP v2.2, EDID, CEC,
- Supports Dolby TrueHD, DTS-HD Master Audio, Atmos,
- High bandwidth, no delay, no attenuation
- 4:4:4 4K@60Hz
- Bend radius: 180°
- Available from 3m to 70m)
- Self powered for easy installation
- LED present on the Display connector
- Status indicator on Source connector
- Cable diameter: 4.6mm
- Intrezziato PET sheath
- Material: 4 core fiber optic cable
- Bandwidth: 18Gbps
- Connector in composite material
- Certifications: uL, CE, RoHS, FCC and REACH
