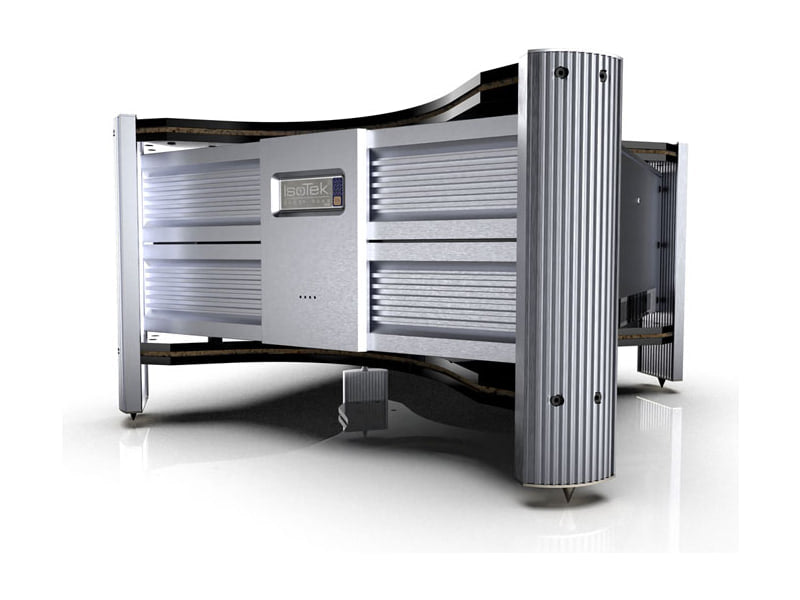

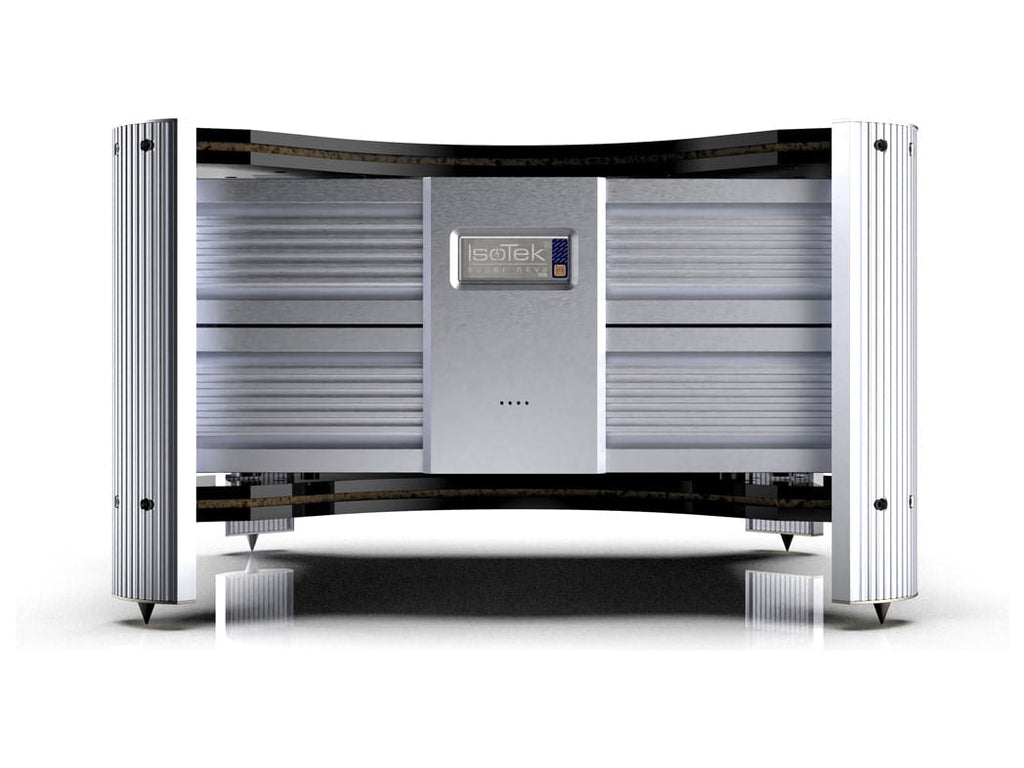

IsoTek EVO3 Super Nova

Passive eight-outlet mains filter for the source components of high-end systems, with an EVO3 Premier cable supplied.

EVO3 Super Nova: the design

Among IsoTek's passive filters for sources, the most advanced is EVO3 Super Nova: it is meant for components with a steady current draw, that is CD players, music servers, DACs, preamplifiers and phono stages.

It adapts to the connected load and isolates each outlet from the others, to stop differential-mode noise passing from one component to another. The chassis sits on the ISIS isolation system.

Specifications

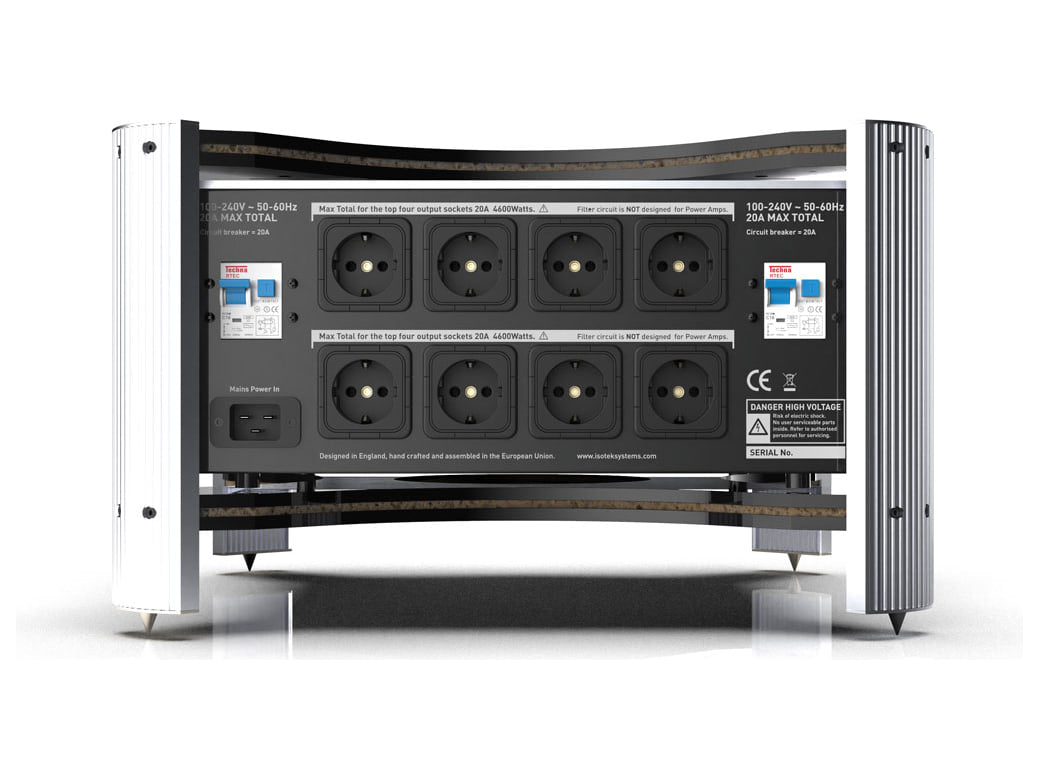

• 8 independent 16 A outlets for sources
• RFI reduction: 80 dB
• ISIS isolation system
• Star-earthed network
• Internal wiring in solid-core silver-plated OCC copper with FEP air dielectric
• Mains inlet: 16 A IEC C20
• Maximum power: 3,680 W (16 A at 230 V)
• Mains voltage: 100-240 V, 50-60 Hz
• Supplied cable: EVO3 Premier
• Size: 500 x 300 x 500 mm (W x H x D)
• Weight: 45 kg
