JBL Stage 280CSA: square, angled in-ceiling speaker with a 200 mm woofer
When the listening position is not beneath the speaker, the Stage 280CSA sends sound where it is needed: its tilted baffle turns woofer and tweeter towards the listeners. It is the 200 mm version of the 260CSA and repeats its square shape on a larger scale. It is supplied as a single unit.

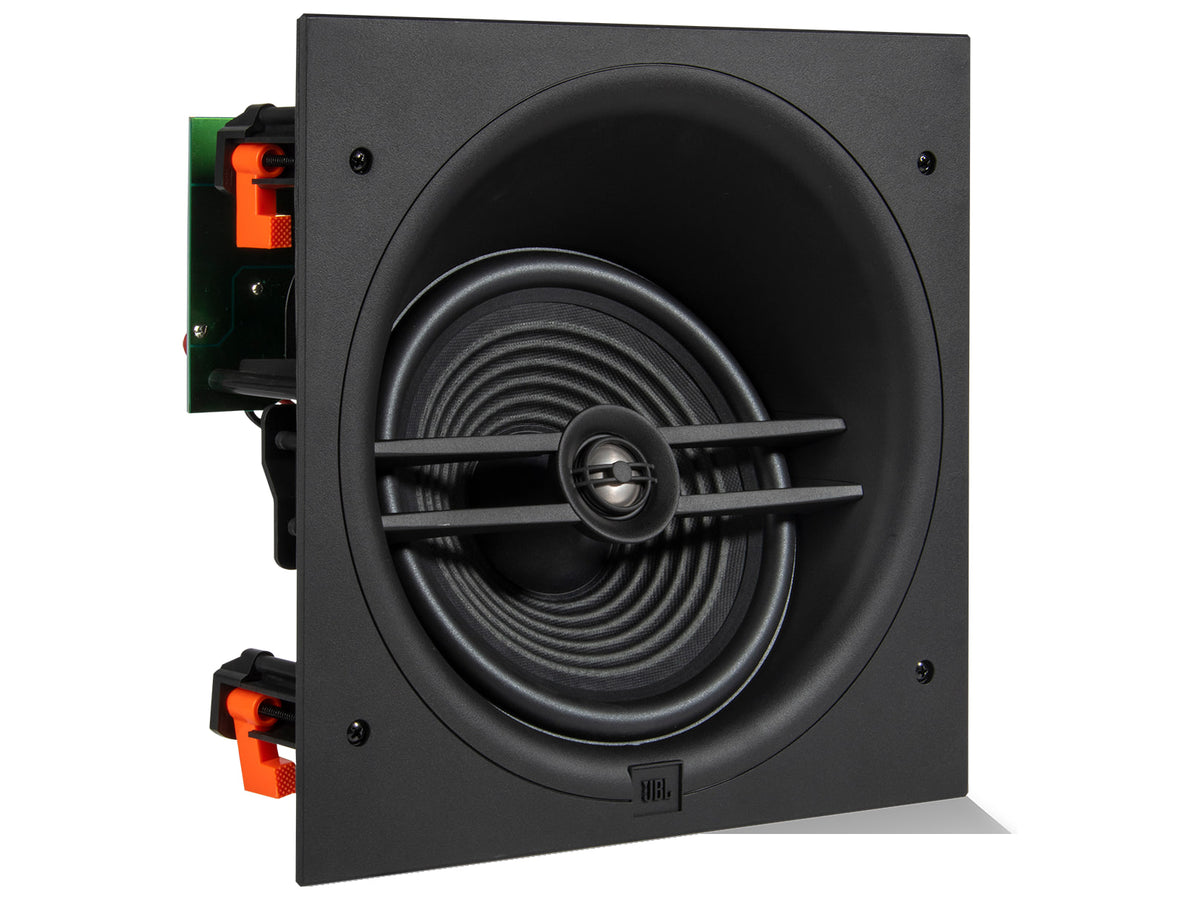

A round two-way coaxial driver is fitted at an angle inside the square frame. The 200 mm woofer has a polycellulose cone; the tweeter is a 25 mm aluminium dome with an acoustic-lens waveguide. The rigid baffle, finished with acoustic smoothing, helps the transducers blend, and the frameless grille lines up with the ceiling.
Key features
- Tilted drivers, to be pointed at the listening zone
- Suggested amplifier: 20 - 120 W RMS
- Sensitivity 90 dB (2.83 V at 1 m), nominal impedance 8 ohms
- Frequency response 42 Hz - 25 kHz (-6 dB on axis)
- Crossover point: 2900 Hz
- Weight 2.9 kg, the highest in the Stage built-in range
Technical data
Square opening of 260 x 260 mm, grille of 289 x 289 mm, mounting depth of 138 mm: that is 41 mm more per side and 11 mm more in depth than the 260CSA. Fixing by the XL-2 system, for thicknesses up to 50 mm; inputs on nickel-plated spring terminals.
Finishes

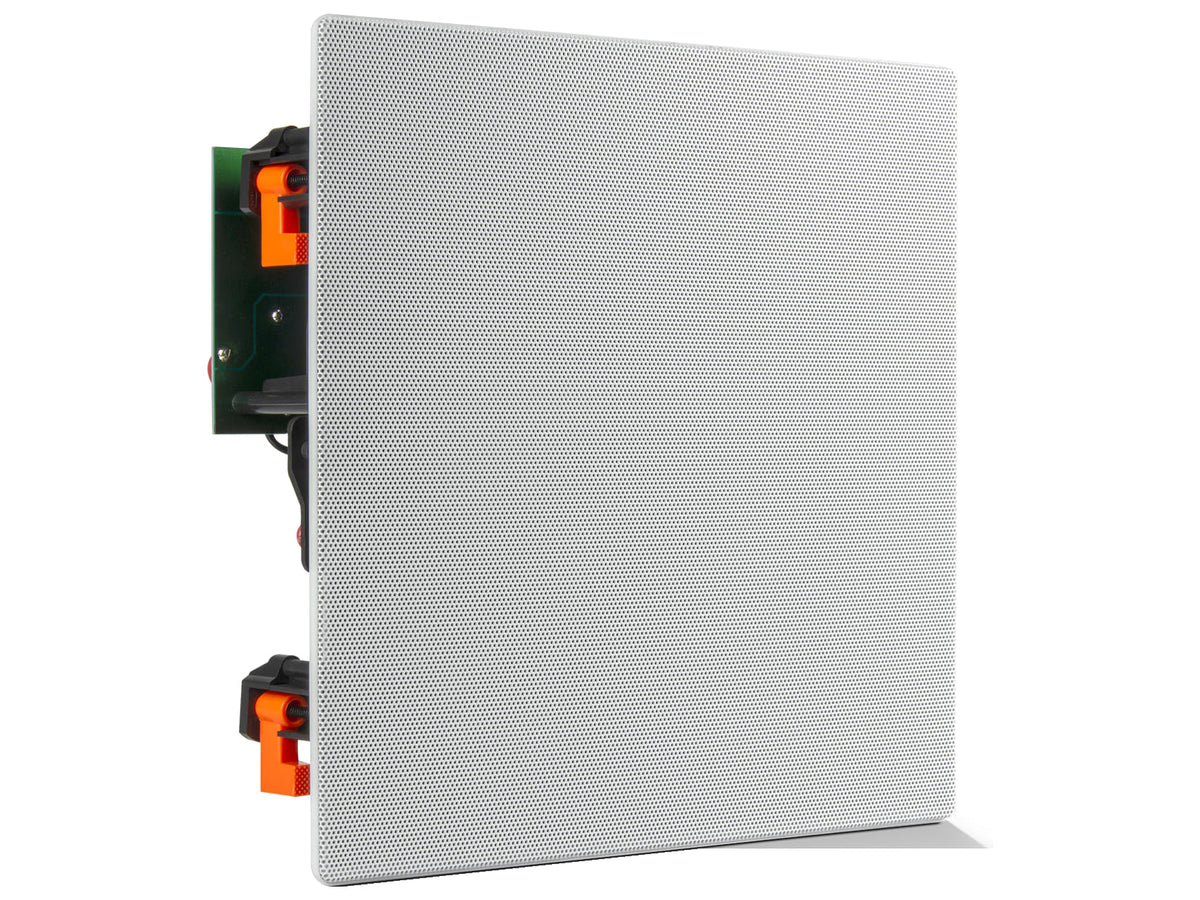

White, with a magnetic metal grille. Frame and grille can both take paint.
