DELA N1-S40: flagship digital music library with 4 TB SSD
DELA (formerly Melco) N1-S40 is the brand's flagship music library. It builds on the technology of the Melco-branded N1 series, with a larger 4 TB SSD installed in a purpose-designed mount, the HS5 (Highly Stable Solid State Storage System).
The full-size chassis is 3 mm stainless steel with thick aluminium panels, for vibration resistance. The power supply is derived from that of the N10, with a larger transformer and a custom capacitor bank; the clock is an ultra-low-jitter NDK unit and an input accepts an external 10 MHz clock. It is built in Japan, in Nagoya.
Functions

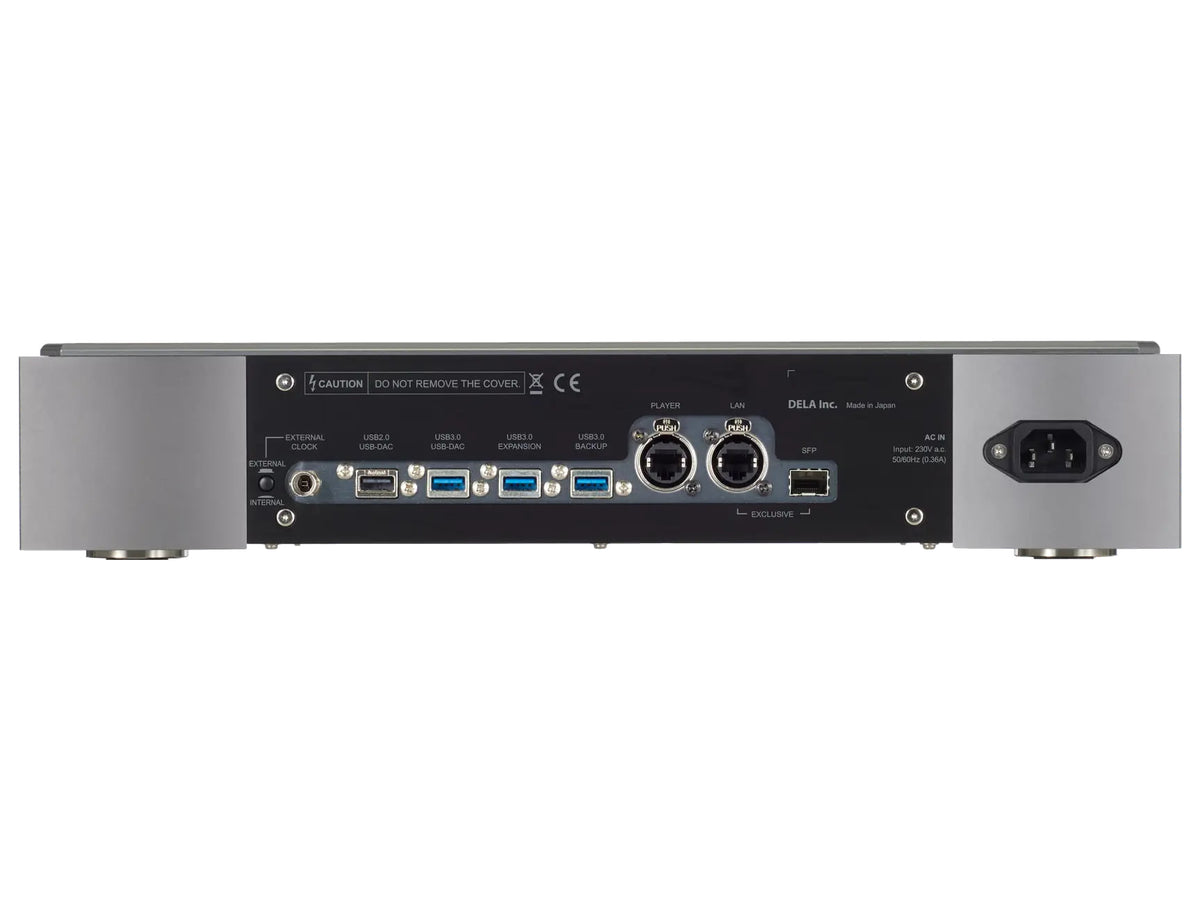

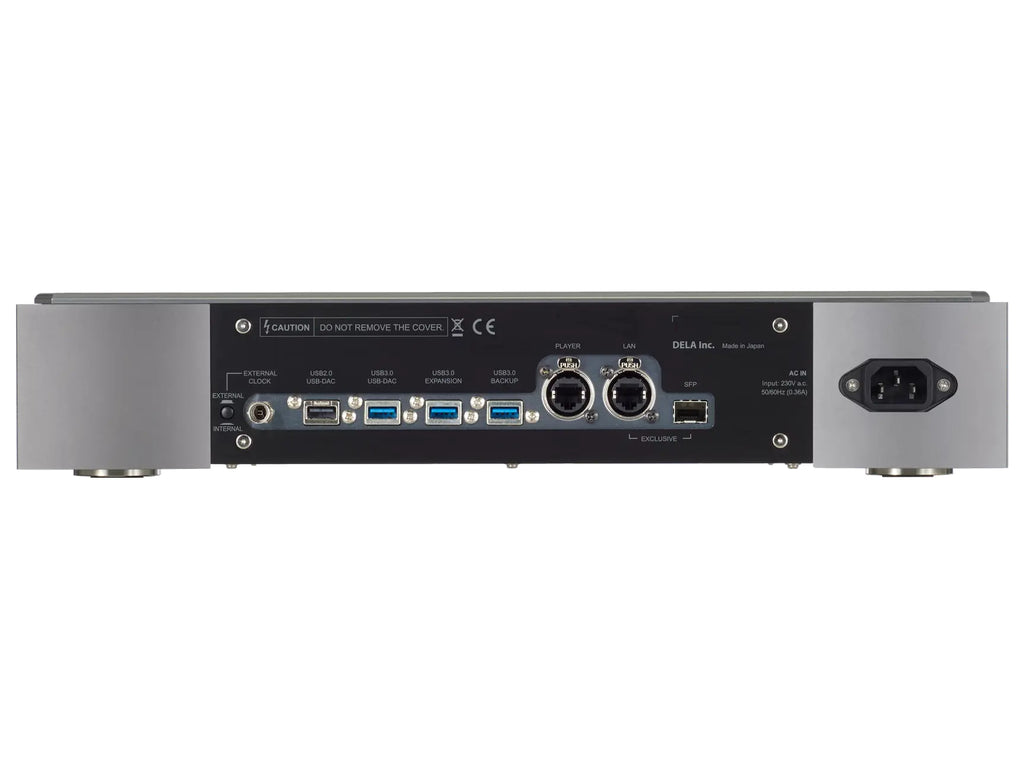

It is operated from the front panel, with no computer or app. It imports files from USB sticks and drives and CDs from a USB drive, automatically downloads to internal storage the music purchased from a tablet or smartphone, and acts as a media server with Twonky or MinimServer2; SongKong enriches the library data. Connected to a USB DAC it works as a transport, UPnP AV / OpenHome compatible and Roon Ready. Backup is differential and the software updates with notification. There are five USB ports (four 3.0 and one 2.0), two network ports and one SFP port for fibre.
Technical data
- Storage: 4 TB SSD on HS5 mount
- Network: LAN and PLAYER ports (RJ45) 100/1000 Mbps; SFP port max 1,000 Mbps
- Terminals: USB 3.0 front 1, USB 3.0 rear 3, USB 2.0 1; BNC clock input 10 MHz, 50 ohm, 0.5-5 Vpp
- USB player, PCM: FLAC, WAV, ALAC, AIFF, AAC, 16-32 bit up to 384 kHz, with automatic downsampling to suit the DAC; gapless playback
- USB player, DSD: DSF and DFF, 1 bit up to 11.3 MHz (Quad DSD); gapless playback
- USB drives: NTFS (differential backup); exFAT and FAT32 (full backup)
- Power supply: 230 V or 120 V AC, pre-set according to country, 50/60 Hz
- Dimensions (W × H × D): 440 × 82 × 353 mm, excluding protruding parts
- Weight: approx. 14 kg
