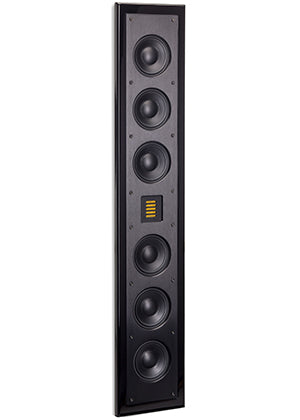

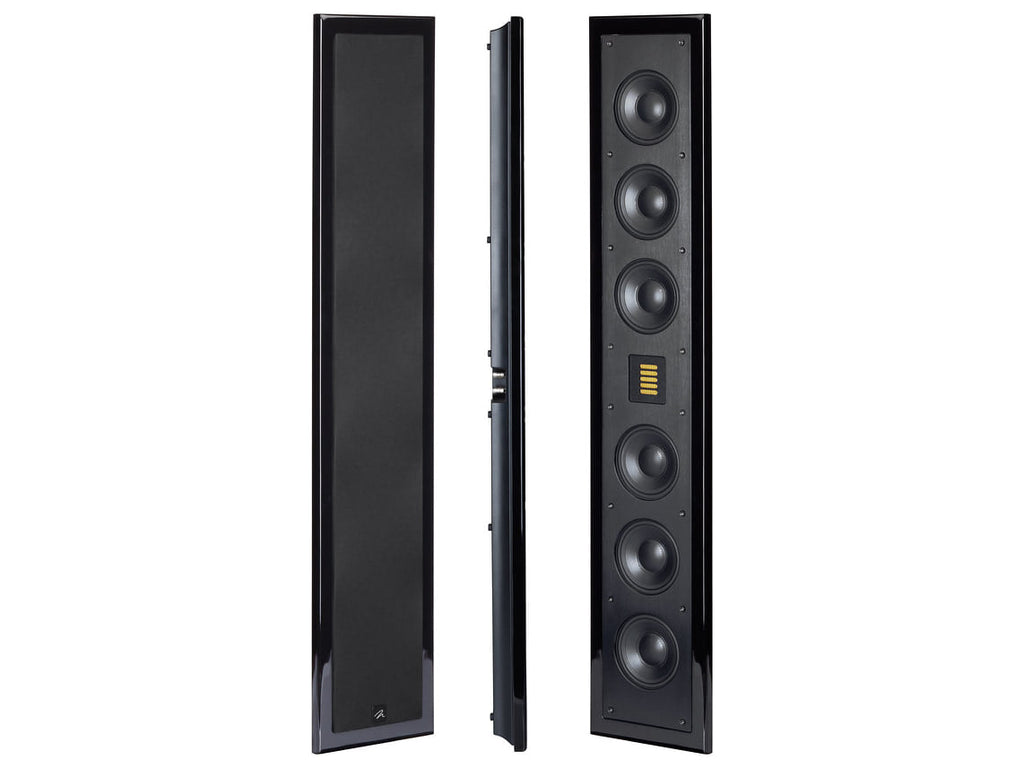

The long version of the ultra-thin SLM speaker, proportioned for televisions of 65 inches and above: a two-way design with a Folded Motion tweeter, two 102 mm woofers and four passive radiators, for wall or shelf use on left, centre and right channels.
SLM XL: what is inside
Compared with the SLM, the SLM XL gains two more passive radiators and a cabinet stretched to 867 mm, a length that matches the height of screens measuring 65 inches or more. The four 102 mm paper radiators work alongside two active long-throw woofers of the same size and lower the bottom limit of the response to 100 Hz. Thickness stays in flat-television territory at 48 mm overall, and the 4.1 kg weight calls for no special fixings.

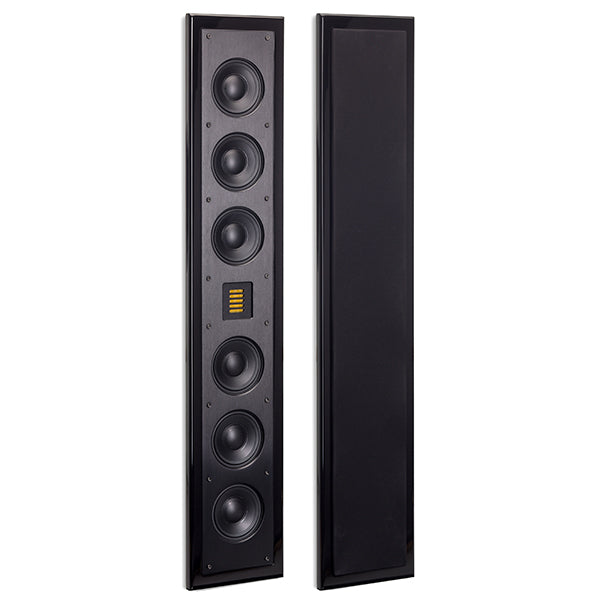

At the top end is a 26 × 36 mm Folded Motion tweeter with a 133 × 44 mm pleated diaphragm, which takes over at 3,100 Hz. It radiates across 80° in width and in height alike, so the tonal balance does not change whether the speaker is mounted upright beside the screen or lying flat beneath it: three SLM XLs make a consistent LCR front stage. The magnetic badge on the grille can be repositioned and turned to match. Behind the grille, a solid front panel of brushed, anodised aluminium keeps the drivers firmly in position.
The back carries keyhole slots that engage with the wall bracket packed with the speaker; anyone who would rather not drill will also find a curved base in the box for upright use on a shelf or a cabinet. The SLM XL is a passive 4 ohm speaker with 94 dB sensitivity, to be partnered with amplification of 20 to 140 watts per channel. The terminals are low-profile push types, so as not to add to the distance from the wall, and the filter is protected against thermal and current overload.
Specifications
- Type: ultra-thin two-way speaker with four passive radiators
- Frequency response: 100-25,000 Hz ±3 dB
- Sensitivity: 94 dB (2.83 V at 1 m)
- Impedance: 4 ohms, suits amplifiers rated for 4, 6 or 8 ohms
- Recommended power: 20 to 140 W per channel
- Dispersion: 80° horizontally, 80° vertically
- Crossover point: 3,100 Hz
- Tweeter: 26 × 36 mm Folded Motion, 133 × 44 mm diaphragm
- Woofers: two 102 mm units with paper diaphragms
- Passive radiators: four 102 mm paper units
- Crossover: air-core inductors, polyester film and low-loss electrolytic capacitors, thermal and current protection
- Terminals: push-type, low profile
- Included: wall bracket and base for upright shelf placement
- Dimensions: 867 × 162 × 48 mm (H × W × D)
- Weight: 4.1 kg
- Supplied: sold singly
