The compact architectural loudspeaker from the M Series
MK Sound IW5 is an architectural loudspeaker with 4-inch bass/midrange driver and 1-inch soft fabric dome tweeter, 100 Hz-20 kHz response and 85 dB sensitivity. The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels.
It is designed for compact in-ceiling/in-wall coverage and multi-room systems. The architectural range uses driver and crossover technology from MK Sound monitors so visible and concealed speakers can be mixed without changing tonal character. The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels.
Key features
- The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels.
- Mid/bass section: 4-inch bass/midrange driver.
- High-frequency section: 1-inch soft fabric dome tweeter.
- 100 Hz-20 kHz response and 85 dB sensitivity.
- Recommended amplifier power 25-125 W.
- 103 mm mounting depth.

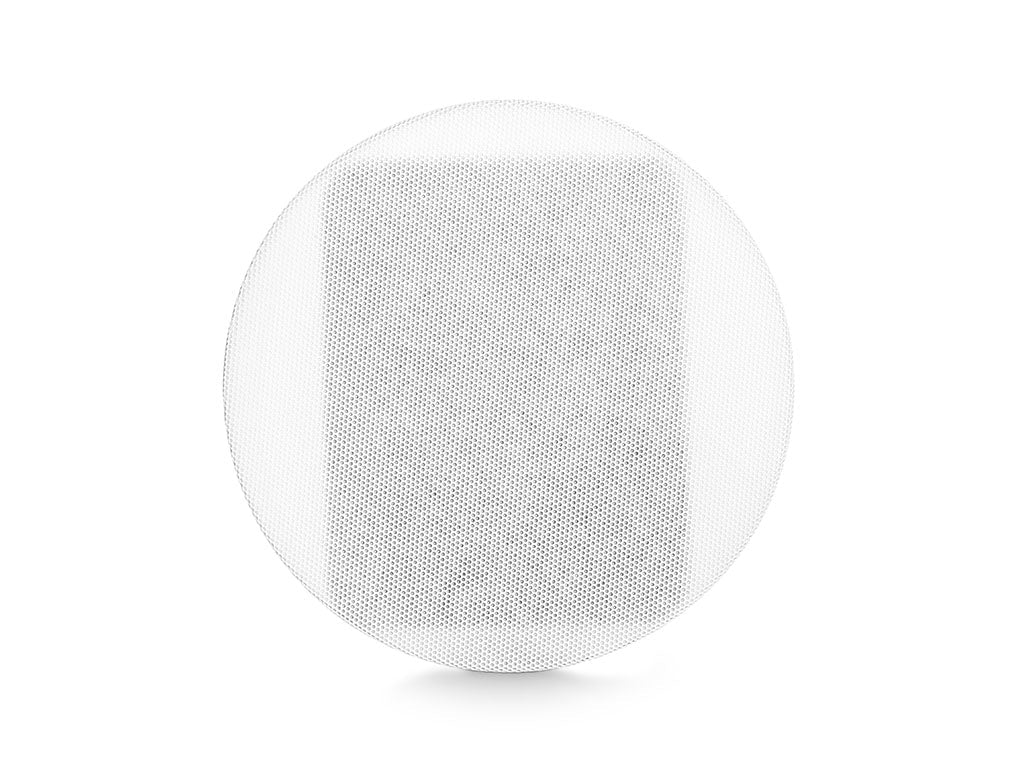

- Low-profile paintable metal grille.
Drivers and response

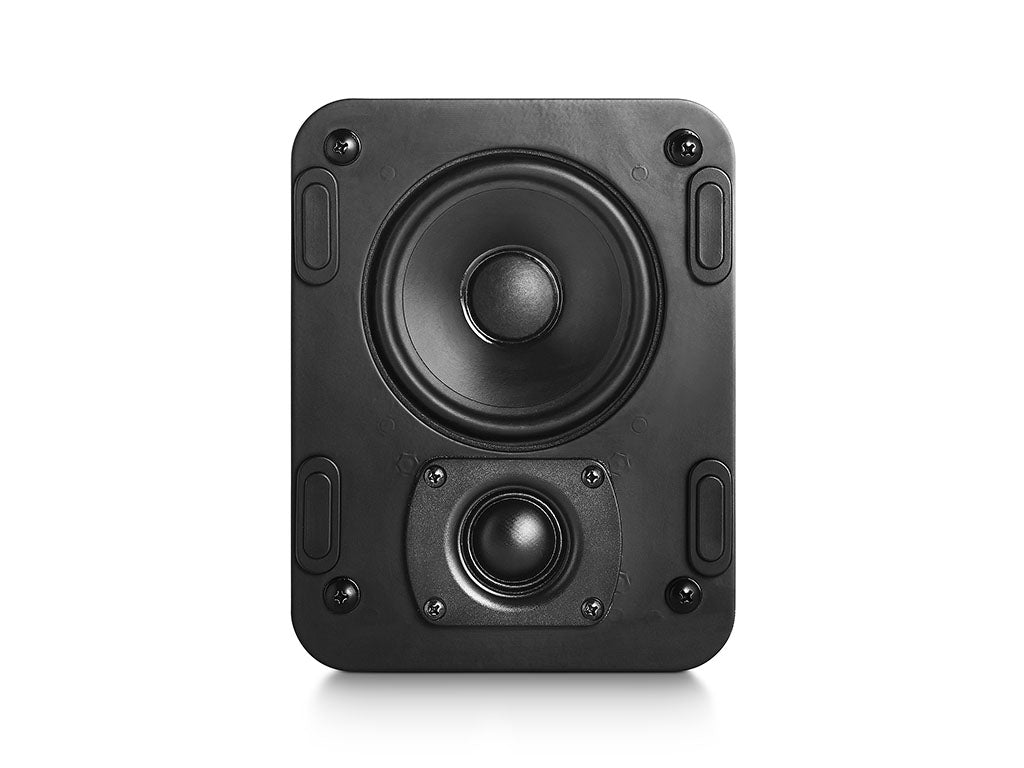

The system uses a 4-inch polymer-coated bass/midrange driver with a 1-inch soft fabric dome tweeter. Rated response is 100 Hz-20 kHz, with 85 dB sensitivity and recommended amplifier power of 25-125 W; voicing follows the M Series for consistent integration.
Architectural integration
The IW range uses steel baffles and low-profile metal grilles to reinforce the wall, reduce vibration and leave only the required surface visible. Grilles can be painted to match the room finish.
Installation

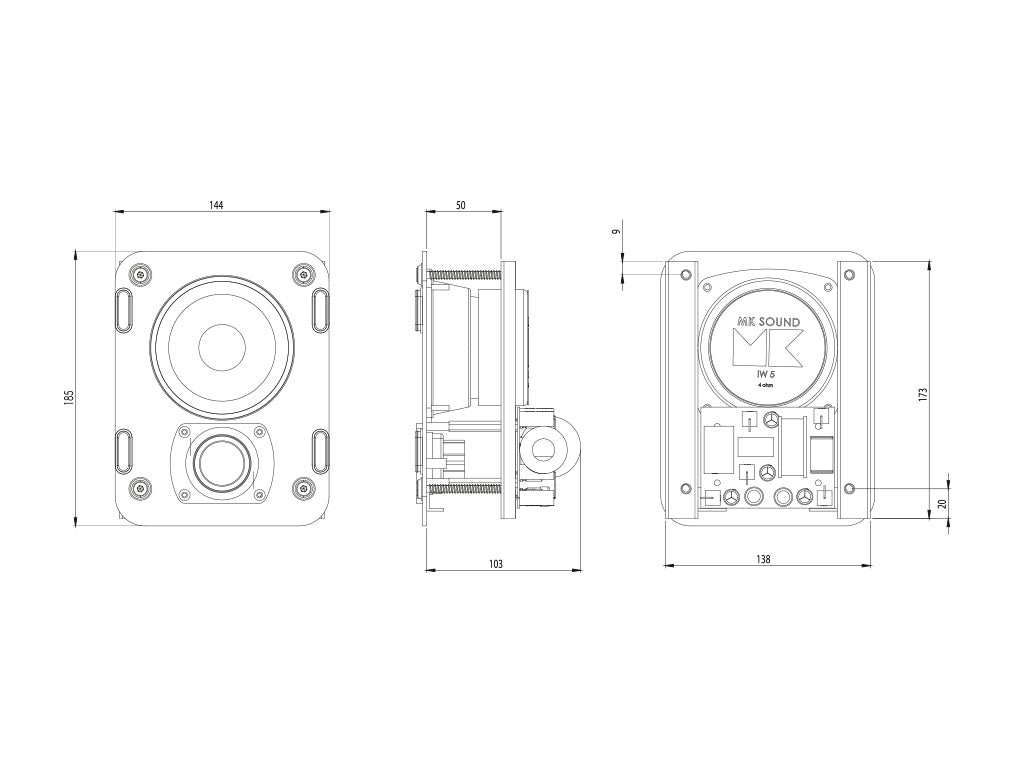

The baffle measures 220 mm diagonale, wall cut-out is 164 x 124 mm and required depth is 103 mm; weight is 2.4 kg. The IW mounting system is designed for stable installation with the grille sitting close to the finished surface.
Supply and finish
The loudspeaker is sold individually; two units are required for a stereo pair and additional units for more channels. The white metal grille is paintable to match the wall or ceiling.
