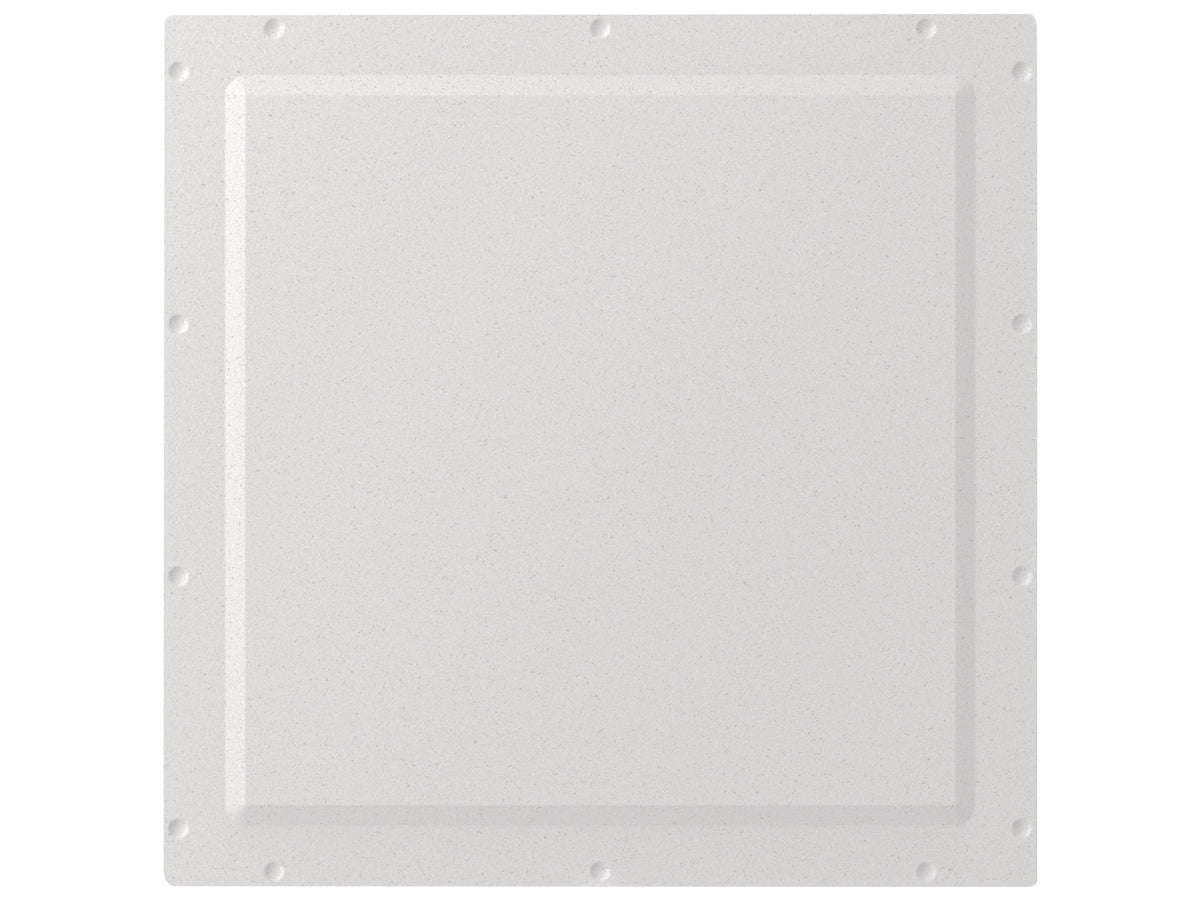

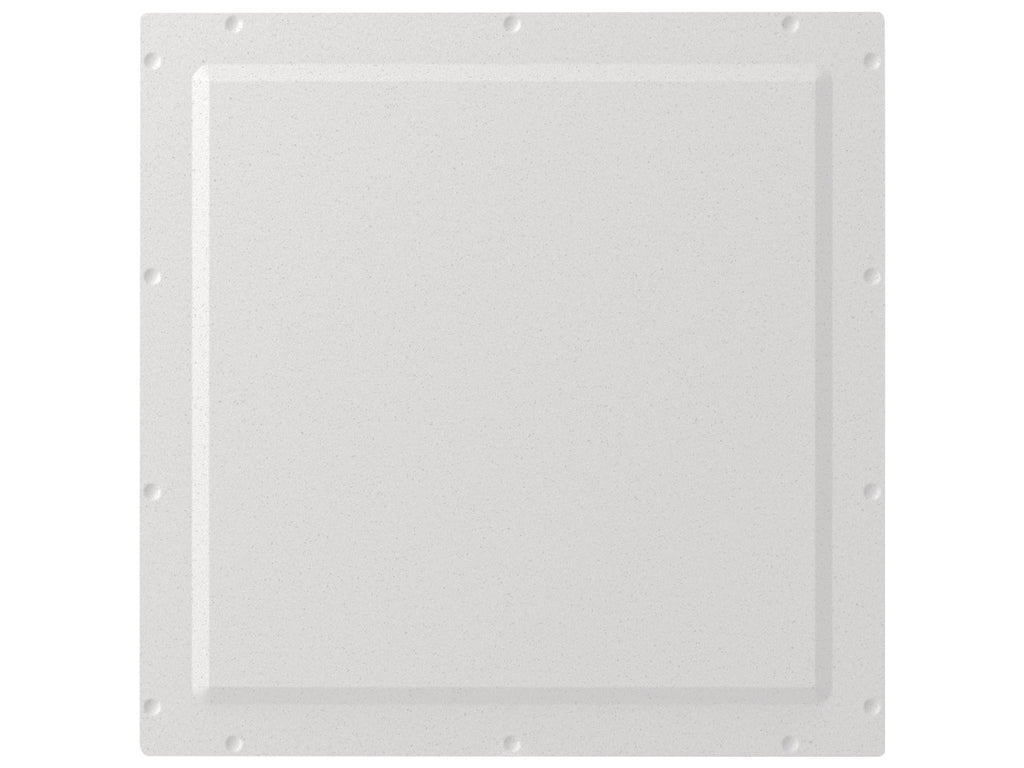

Invisible 6.5" in-wall speaker from the Invisible Series, with 70/100 V transformer
Sonance IS6T is the version for professional systems of the 6.5" invisible speaker: it goes into the drywall, gets skimmed and painted like the rest of the surface and disappears. Carbon fibre woofer and built-in line transformer for 70/100 V constant-voltage systems. Sold singly.
The sound comes from Motion Flex technology. Mids and highs are handled by the Wave Flex Drive Unit, a 127 cm² bending-wave membrane with a 44 mm voice coil; bass comes from the Air Flex Woofer, a 633 cm² air-pulse membrane pushed by the 165 mm woofer. The two zones of the membrane are isolated from each other and the CDX crossover keeps the tone balanced away from the axis too.
Key features
- Frequency response from 50 Hz to 30 kHz (+/- 3 dB)
- Nominal impedance 4 ohms, power handling 100 W RMS
- Sensitivity 84 dB (2.83 V at 1 m), 170° hemispherical dispersion up to 10 kHz
- Sonance Laminated Core transformer with 30, 15 and 7.5 W taps at 70 and 100 V, plus 3.8 W at 70 V, and direct 4 ohm operation
- Finish layer of up to 3 mm over the membrane
- DISC system to measure the finish thickness and keep every speaker sounding the same
Installation

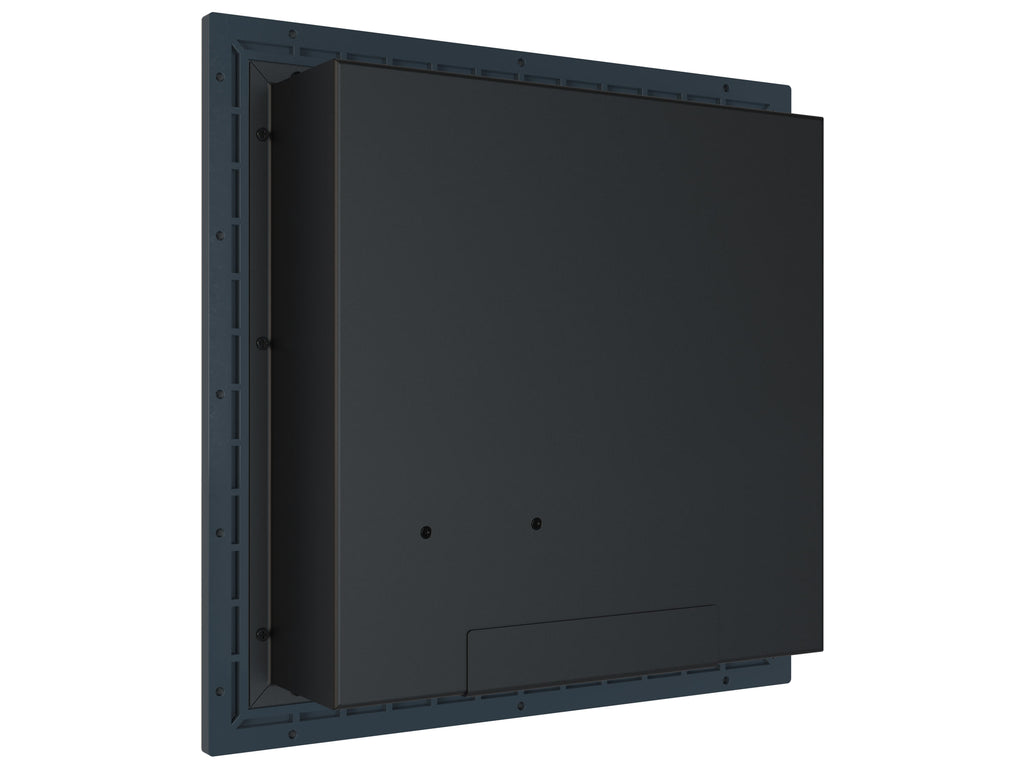

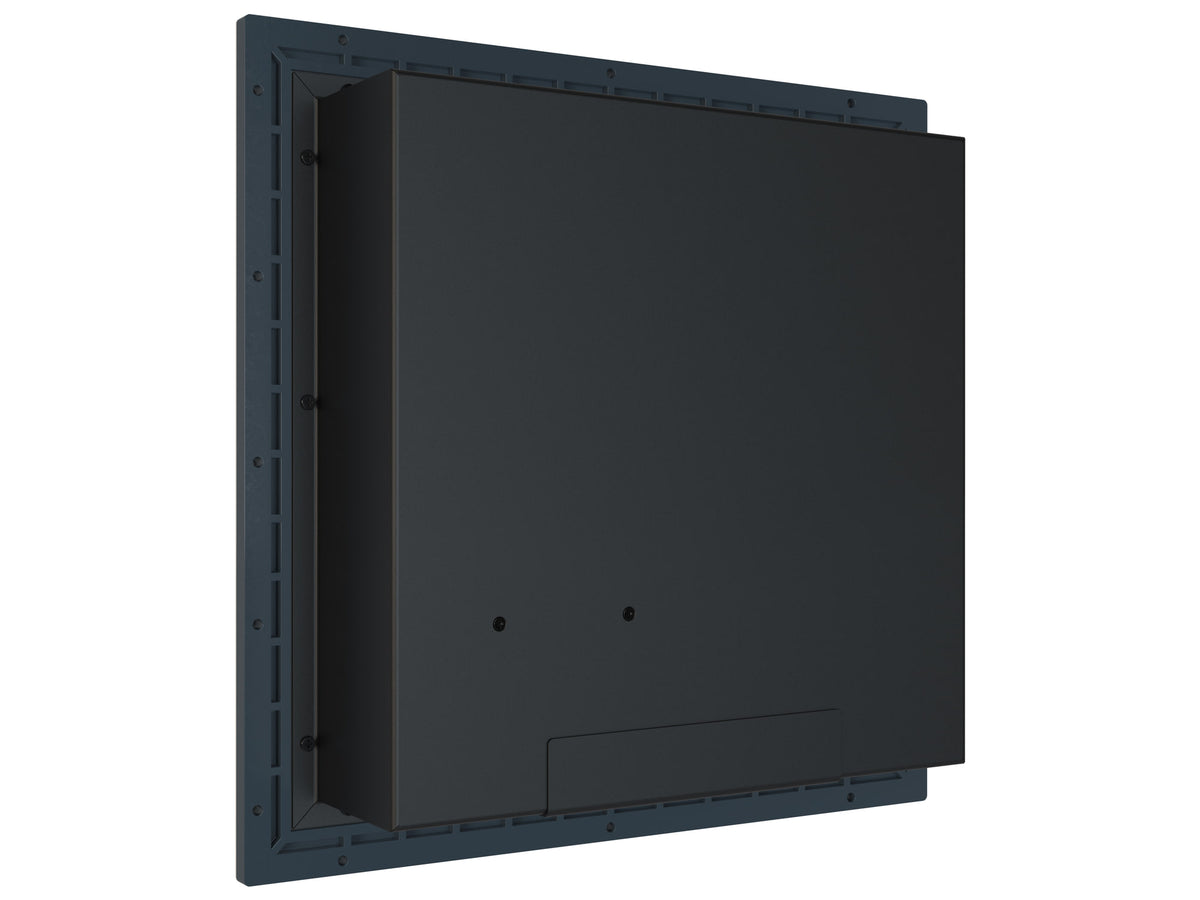

The panel measures 409 x 409 x 80 mm (width by height by depth) and needs 86 mm of mounting depth. Besides drywall it can be covered with wallpaper, leather, wood veneer and some types of plaster. As options Sonance offers the IS-ENCL S acoustic enclosure and the small-size Space Saver spacers.
Unit of sale
The unit of sale is the single speaker.
