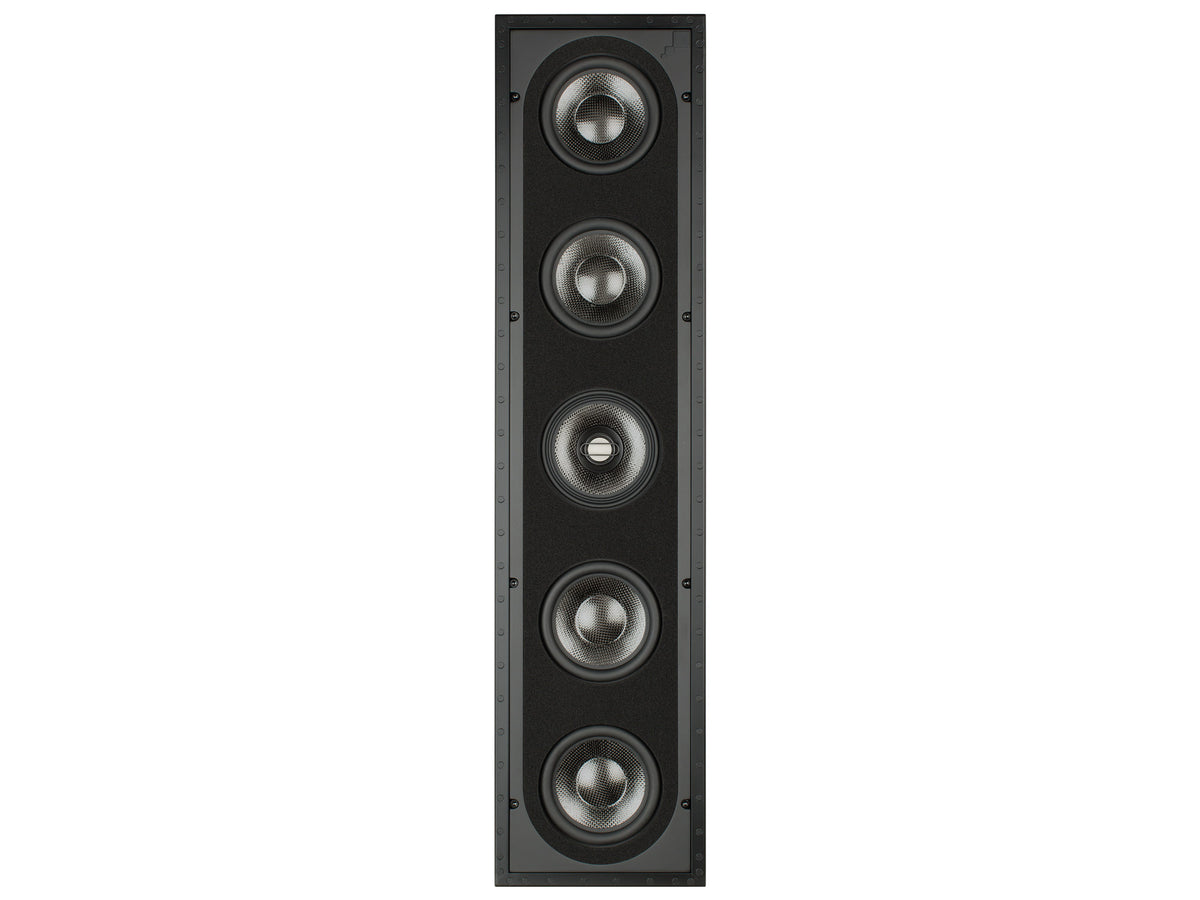

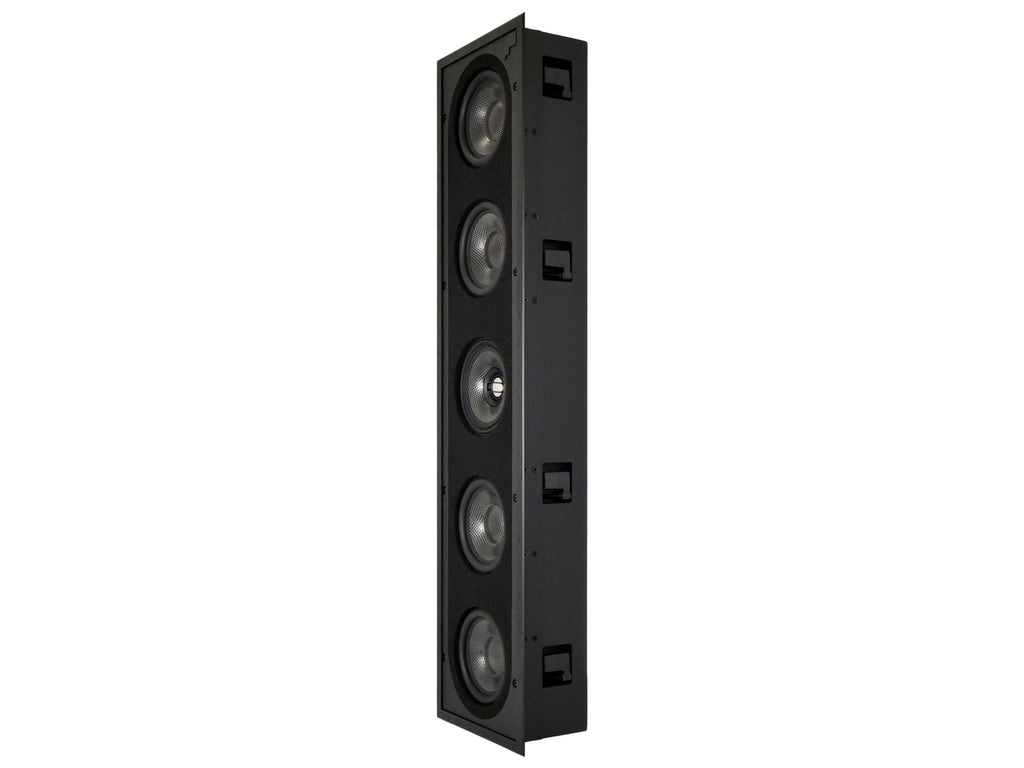

Built-in wall LCR speaker from the Reference Series, Large format
The Sonance R2 is the Large-format LCR speaker of the Reference Series for building into walls: it is meant for the surround audio of media rooms and theaters, with television, films, games and concerts.

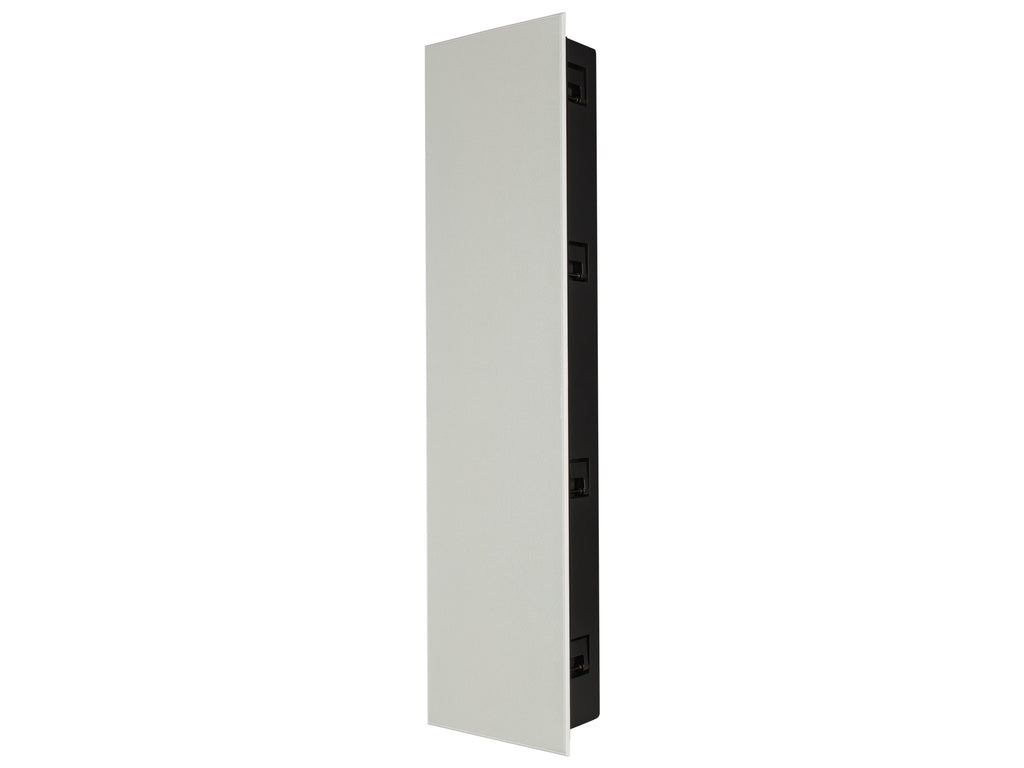

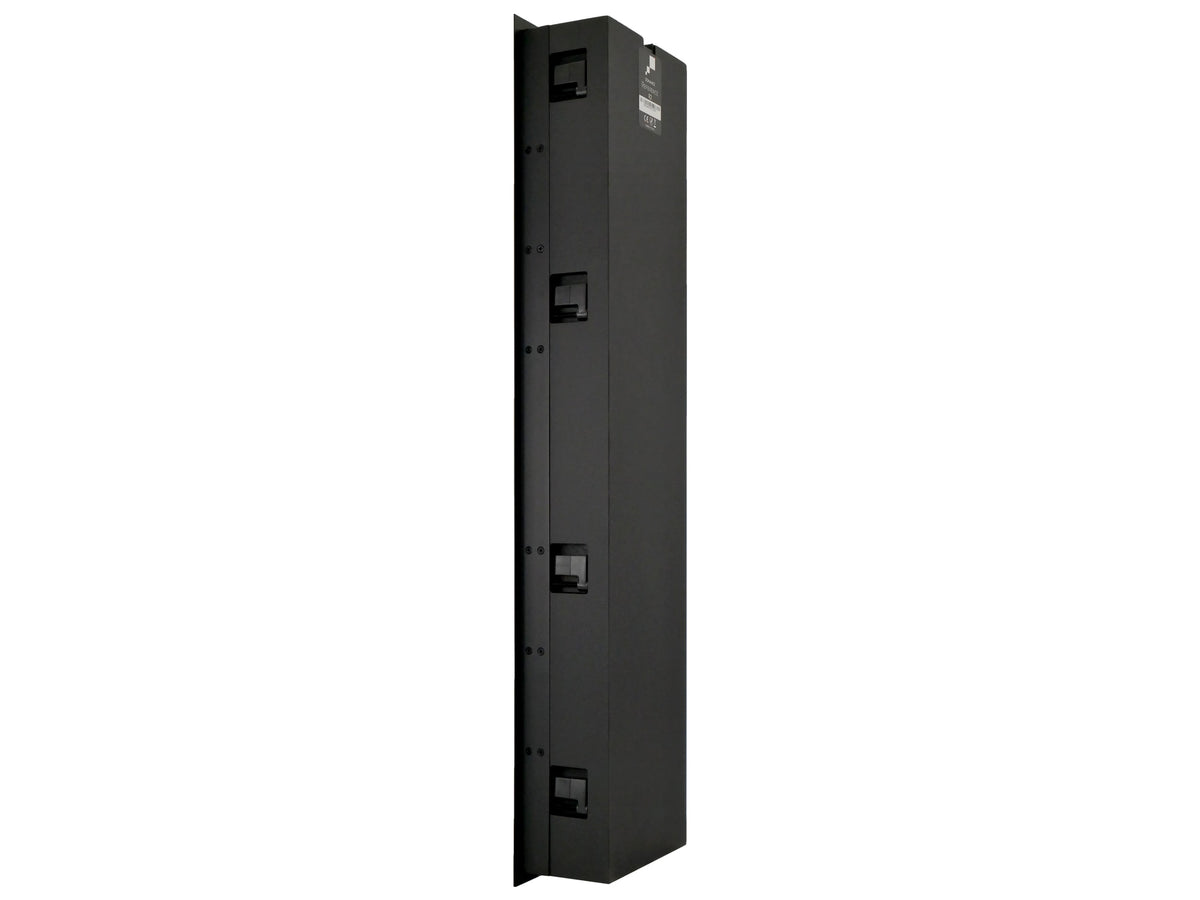

It combines a fourth-generation coaxial driver, which brings midrange and tweeter together for precise imaging and clear dialogue, with four high-excursion woofers. The built-in enclosure improves output and cuts the sound that leaks to neighbouring rooms, while the low-profile grille blends quietly with the decor and follows the look of the Sonance Visual Performance series.
Key features
- 1" (25 mm) tweeter with a ceramic dome, cooled by ferrofluid and backed by an acoustic rear chamber
- 5.25" (133 mm) midrange whose cone is laminated in carbon fibre and Rohacell, with rubber surround
- Four 5.25" (133 mm) woofers whose cones are laminated in carbon fibre and Rohacell, with rubber surrounds
- Frequency response: 70 Hz - 30 kHz (+/- 3 dB)
- Power handling: from 5 to 200 W RMS
- Sensitivity: 92 dB (2.83 V/1 m)
- Separate crossover networks for a precise, detailed sound
Installation
The R2 measures 225 x 886 x 98 mm and needs a cut-out of 191 x 851 mm. It is sized for a standard cavity in a wall or a ceiling; mounted upright, it sits within a standard stud bay. The grille is perforated steel and the finish is white.
System composition
Models of the Reference Series can be freely combined with one another, so as to get the best sound whatever the layout of the room. Sonance suggests teaming them with its own DSP amplifiers for a result tuned to measure.
