JBL Studio 680

JBL Studio 680: 2.5-way floorstanding loudspeaker with two 165 mm woofers

The Studio 680 is the slimmest tower of the Studio 6 range: 230 mm wide like the Studio 630 stand-mount model, but just over a metre tall and with two woofers in place of one. Sold as a pair. It is suited to amplifiers of up to 200 W.

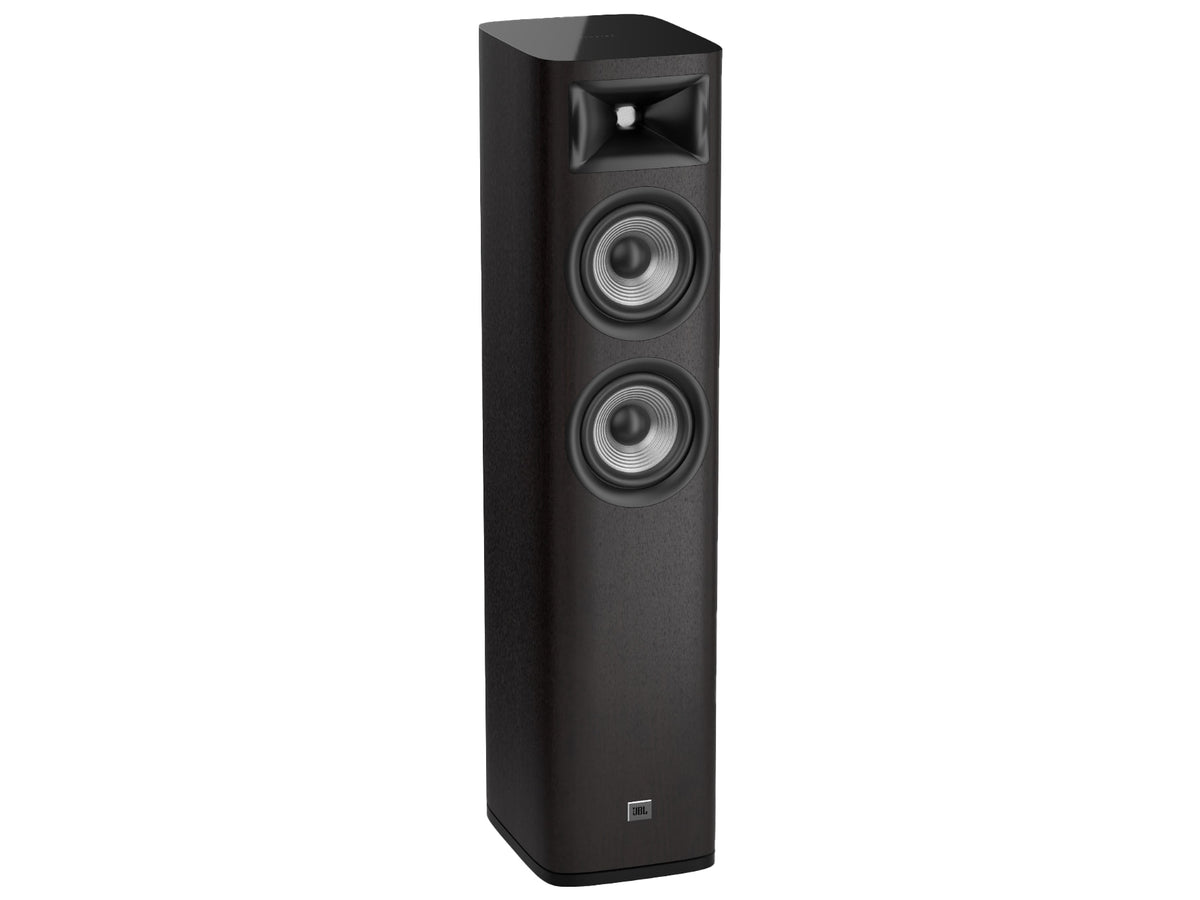

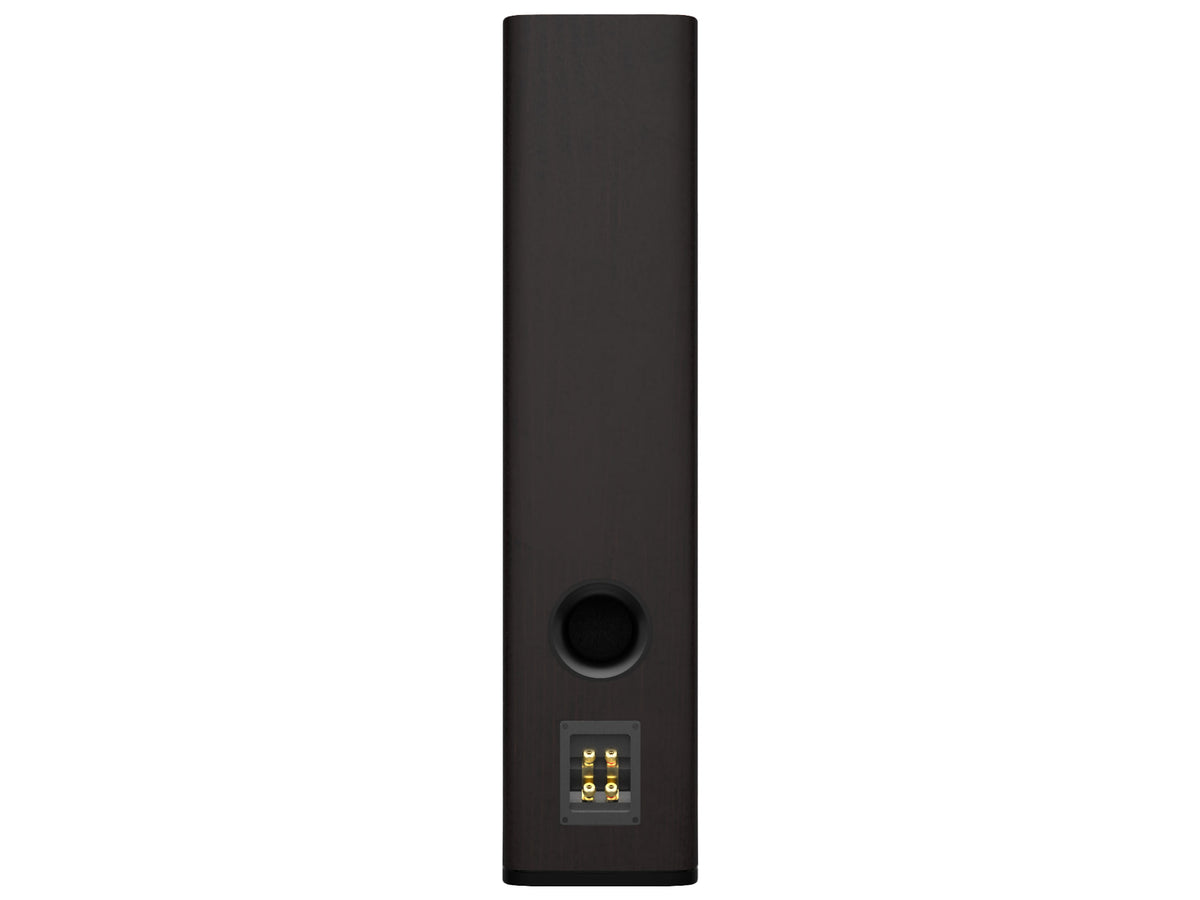

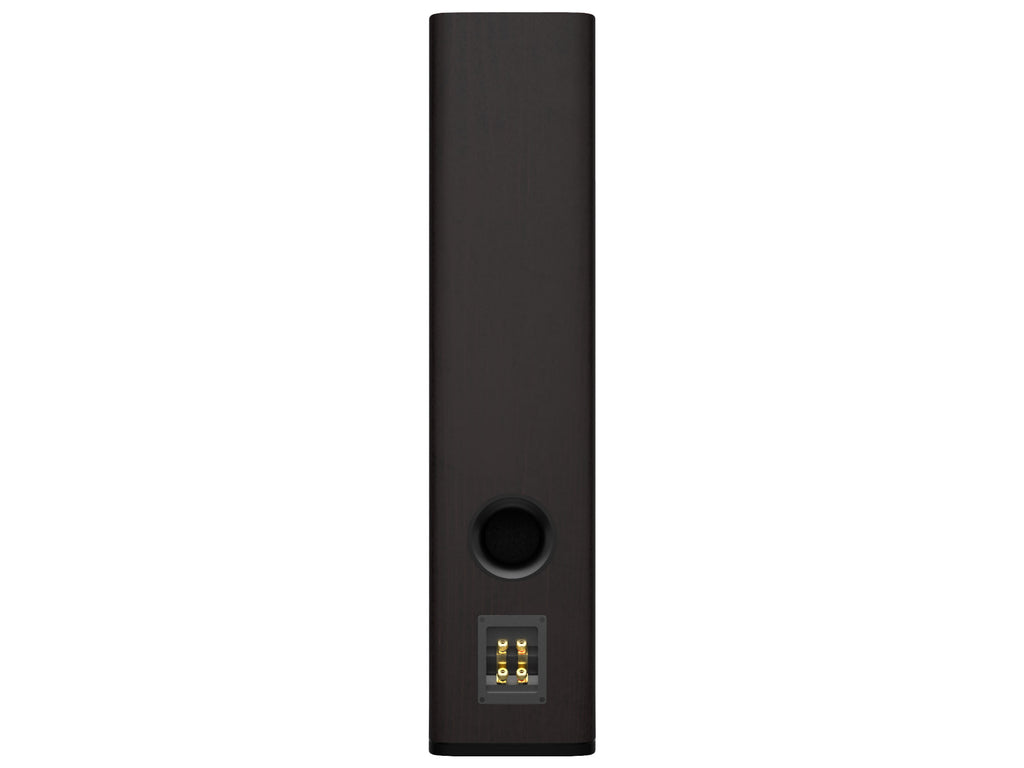

The cabinet carries two 165 mm woofers with PolyPlas cones and a 25 mm compression driver set into the HDI (High-Definition Imaging) waveguide. The 2.5-way layout has two crossover points, at 600 Hz and at 1.8 kHz. The cabinet is a bass-reflex type with its tuning port on the rear side.

Key features

• 2.5-way bass-reflex tower with the port at the back
• Twin 165 mm PolyPlas woofers
• HDI waveguide matched to a 25 mm compression driver
• Response from 38 Hz to 40 kHz
• Sensitivity 88 dB (2.83 V at 1 m), nominal impedance 6 ohms
• Suggested amplification up to 200 W

Technical data

Each loudspeaker measures 230 x 300 x 1005 mm (width x depth x height) and weighs 22.6 kg; the figures apply to a single loudspeaker. Crossovers at 600 Hz and 1.8 kHz. The Studio 690, the next model up, moves to 203 mm woofers, gains 2 dB of sensitivity and takes permitted power to 250 W, in a cabinet 70 mm wider.

Finishes

Available in the Dark Wood finish. Every loudspeaker comes with four carpet spikes and four feet.
