Compact power distributor with 2 dedicated outputs for TVs, projectors and AV components
Clean power and effective protection for home AV and video systems

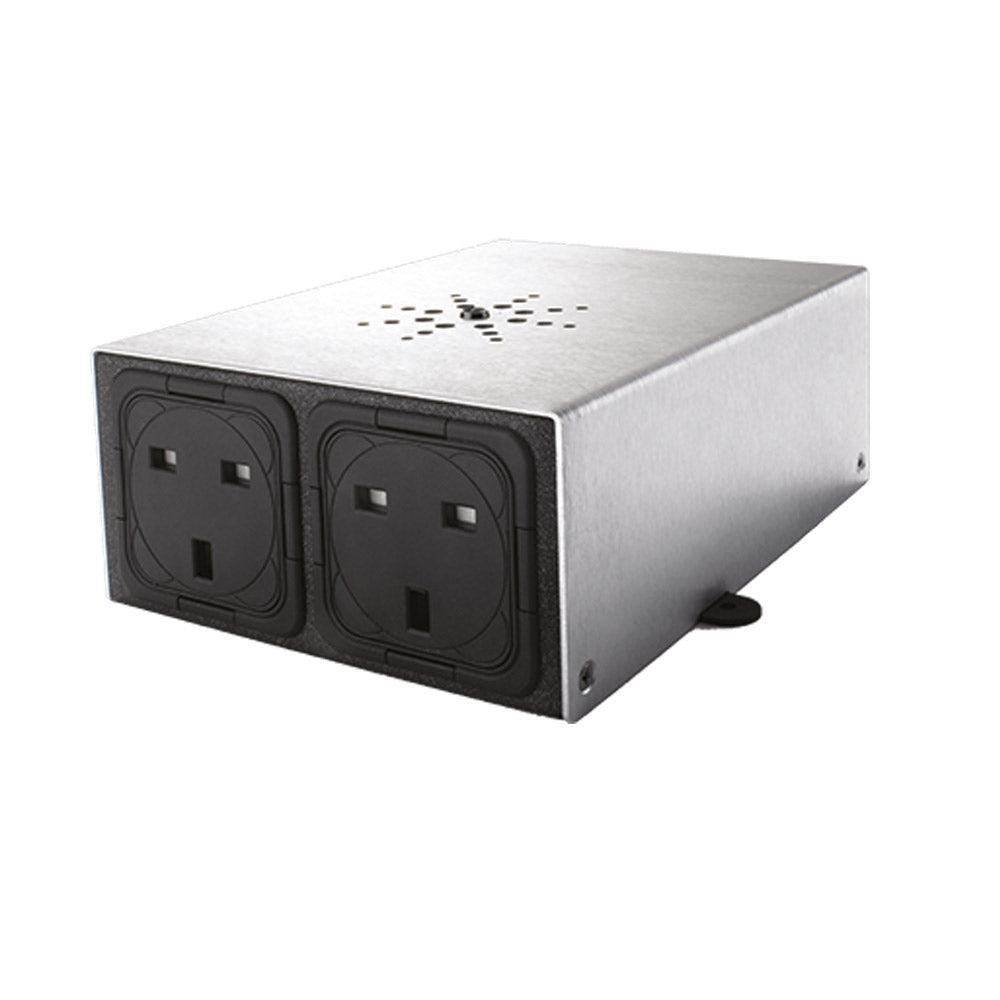

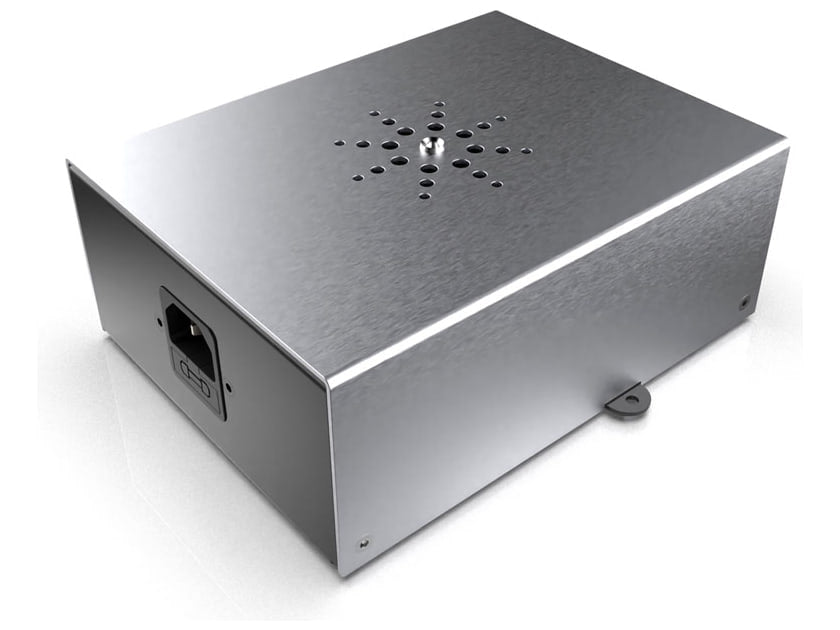

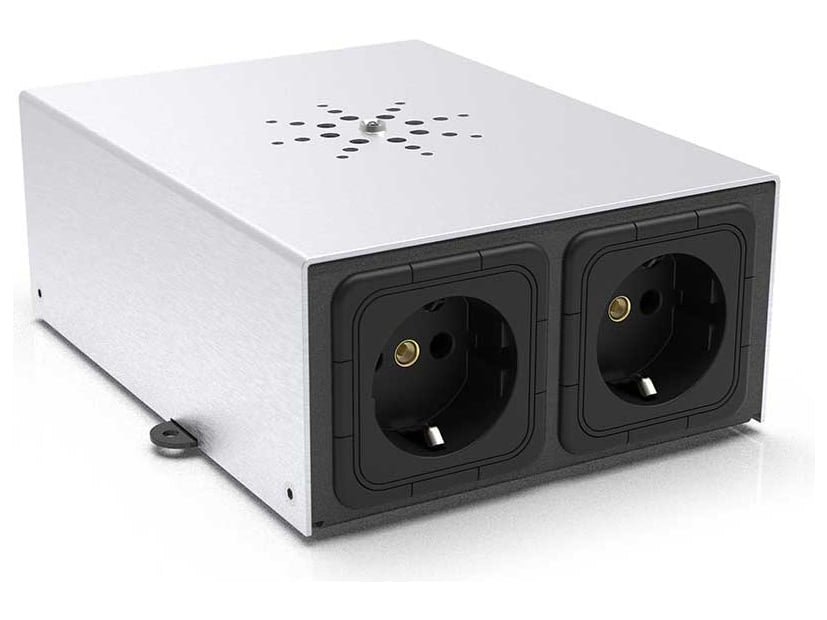

The IsoTek EVO3 Mini Mira is a compact power distributor designed to improve the quality of power supplied to audio-video devices such as TVs , monitors , video projectors , game consoles , set-top boxes and other entertainment electronics. It is part of IsoTek's Discovery series and is designed to offer effective protection against mains disturbances and surges, while maintaining a very compact size that is easy to place even behind furniture or near the projector.
Two separate circuits for display and components
The project integrates 2 distinct outputs , one dedicated to the Visual section and one to the Component section. The Visual socket is intended for screens and video projectors, while the Component socket is intended for other AV electronics such as consoles, players or multimedia devices. IsoTek specifies a 10A IEC C14 mains input , compatibility with 100–240 V / 50–60 Hz networks and a surge protection of 22,500 A.
Ultra compact size and simple integration
The EVO3 Mini Mira measures 130 x 65 x 170 mm and weighs just 0.9 kg , making it very easy to install in domestic settings where space is limited. It offers a total power output of 2,300 W at 230 V or 1,150 W at 115 V , with 2 total outputs and available standards : UK, EU, US, AU and CH . It is a practical solution for those who want a filter/distributor dedicated specifically to the video section of the system, without having to upgrade to larger models in the IsoTek range.
| Typology
|
Compact power distributor / mains filter |
| Number of sockets |
2 |
| Type of exits
|
1 Visual + 1 Component |
| Network input
|
10A IEC C14 |
| Supported mains voltage
|
100 – 240 V |
| Supported network frequency
|
50 – 60 Hz |
| 230V Visual Output
|
1 x 10A (2,300 W total) |
| 115V Visual Output
|
1 x 10A (1,150 W total) |
| 230V Component Output
|
1 x 10A (2,300 W total) |
| 115V Component Output
|
1 x 10A (1,150 W total) |
| Overvoltage protection
|
22,500 A |
| Standard sockets available
|
UK, EU, US, AU, CH |
| Dimensions (W x H x D) |
130 x 65 x 170 mm |
| Weight
|
0.9 kg |
