Audiophile power distributor with 6 independent outputs and advanced filtering for hi-fi and AV systems
A compact solution to improve power, protection and system order

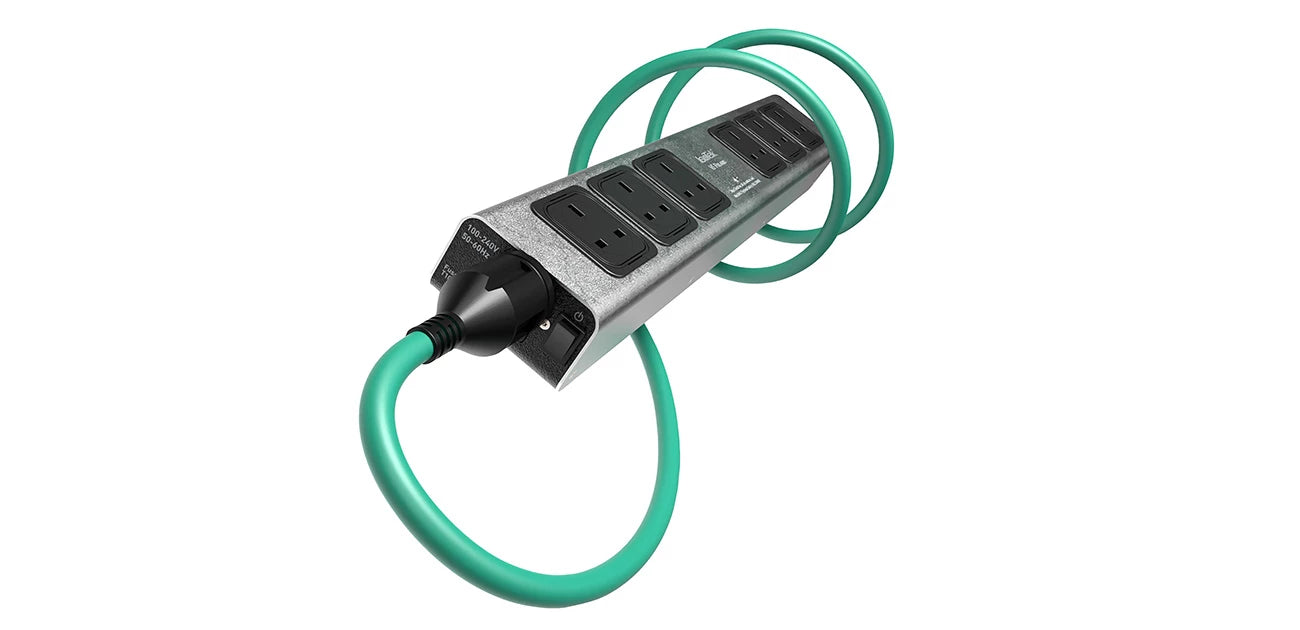

The IsoTek V5 Polaris is a compact power distribution box designed to provide cleaner power and improved energy distribution for home hi-fi and audio-video systems. Compared to the previous generation EVO3, the V5 series introduces more advanced filtering and improved management of cross-contamination between connected components, while maintaining a slim, convenient form factor for placement behind a cabinet or near a rack. IsoTek presents it as one of the most affordable upgrades for instantly improving overall system performance.
Six independent sockets and architecture optimized against differential noise
The design integrates six independent outputs , all connected to the central PCB rather than in series, thus limiting Differential Mode Noise contamination from connected devices. IsoTek claims the V5 Polaris has significantly improved filtering over the previous model, with nine times more Differential Mode filtering , reduced resistance , and a 60% improvement in Direct Current Resistance , all designed to make power distribution cleaner and more efficient. The system also includes System Link , useful for easily expanding the number of outlets while maintaining consistent distribution.
Compact, protected and already complete with power cable

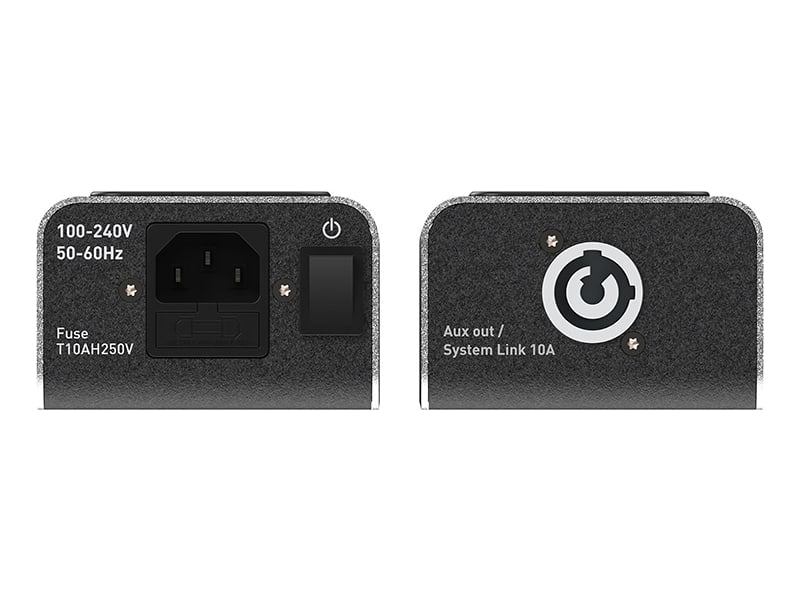

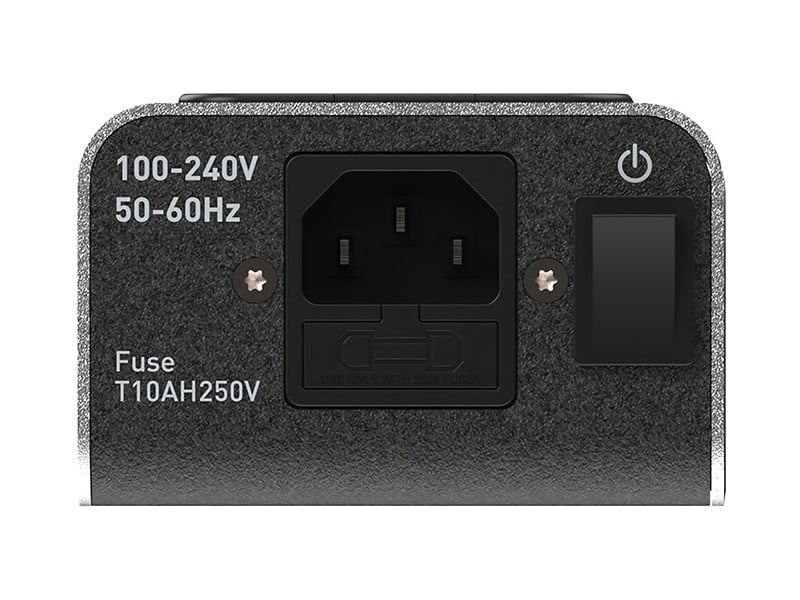

The IsoTek V5 Polaris supports a maximum current of 10A HRC and a total power of up to 2,300W at 230V or 1,150W at 115V . The mains input is 10A IEC C14 , the compatibility is 100–240V / 50–60Hz and the surge protection is up to 45,000A . The dimensions are 80 x 50 x 510mm , the weight is 1kg and the product is supplied with the 1.5m IsoTek EVO3 Initium cable.
| Typology |
Audiophile power distributor / mains filter |
| Number of sockets
|
6 |
| Architecture
|
6 independent outputs connected to the central PCB |
| System Link
|
1 |
| Network input
|
10A IEC C14 |
| Supported mains voltage
|
100 – 240 V |
| Supported network frequency
|
50 – 60 Hz |
| Maximum current
|
10A HRC |
| Total power at 230 V
|
2,300 W |
| Total power at 115V
|
1,150 W |
| Overvoltage protection
|
45,000 A |
| Dimensions (W x H x D)
|
80 x 50 x 510 mm |
| Weight |
1 kg |
| Cable included
|
IsoTek EVO3 Initium 1.5 m |
| Standard sockets available
|
UK, EU, US, AU, CH |
