High current power distributor with 3 independent outputs for amplifiers, power amplifiers and high consumption AV systems
Dedicated power supply for power electronics

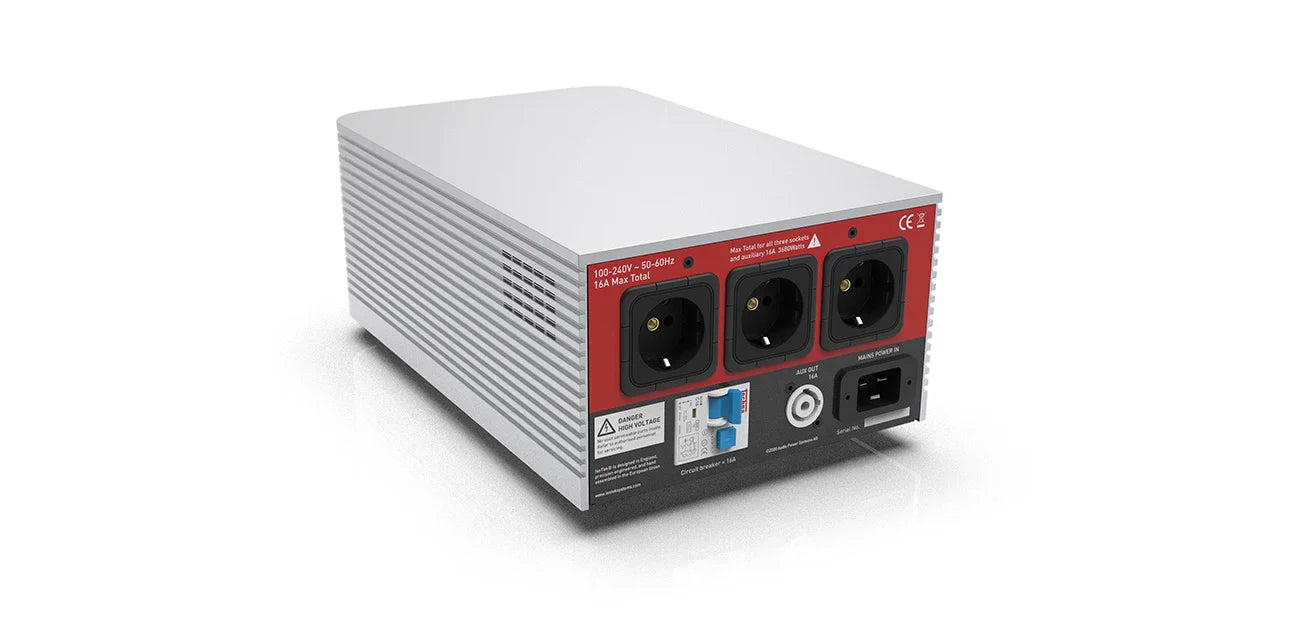

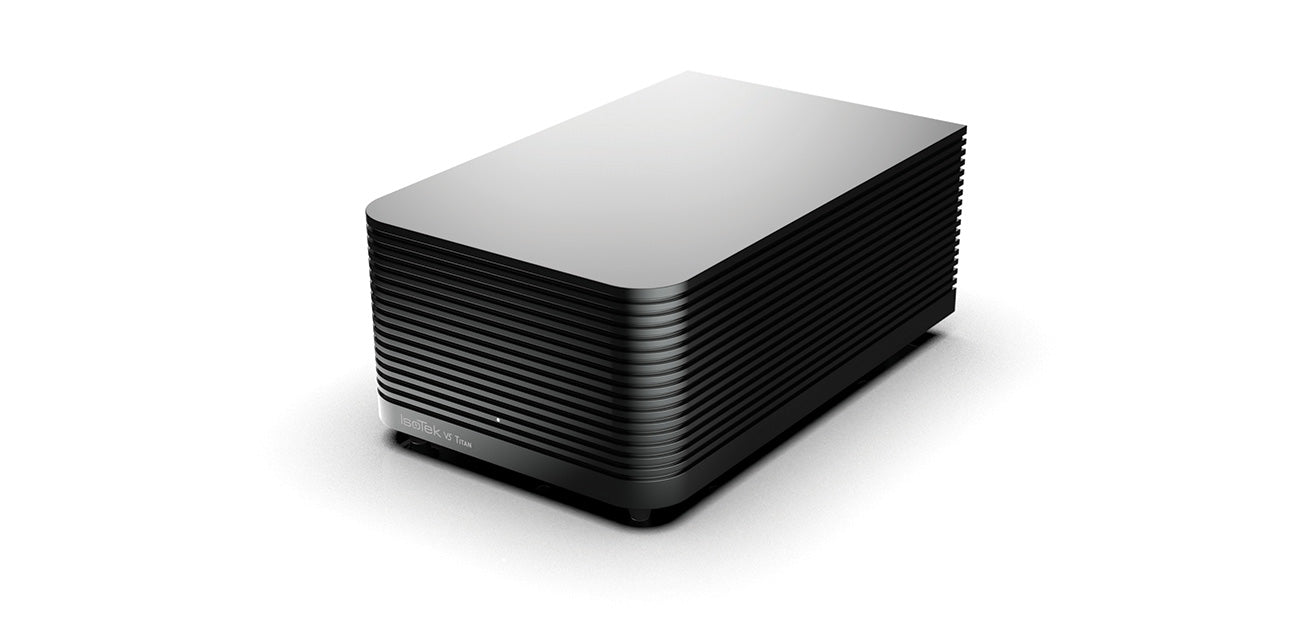

The IsoTek V5 Titan is a high-current power distribution system designed for components requiring large current capacities, such as power amplifiers , integrated amplifiers , monoblocks , powered subwoofers , and other high-current AV electronics. IsoTek describes it as a dedicated power cleaning and distribution system capable of offering abundant current, low impedance, and minimal dynamic limitations.
Three independent filter networks in a compact chassis
The design integrates 3 independent outputs , each with its own dedicated high-current filter network. This architecture is designed to significantly reduce both Common Mode Noise and Differential Mode Noise , while also limiting cross-contamination between connected components. Compared to the previous generation, IsoTek features a completely revised circuitry with over 50% improvement in amperage , lower resistance, and higher current capacity, as well as the introduction of System Link to connect multiple units while maintaining a consistent star-earth architecture.
High power, important protection and complete equipment
The IsoTek V5 Titan uses a 16A IEC C20 mains input, supports 100–240V/50–60Hz mains, and delivers up to 3,680W at 230V or 1,840W at 115V . Its dimensions are 220 x 147 x 350mm and it weighs 12kg . Several specialist retailers also quote 153,000A surge protection and the inclusion of the IsoTek Premier cable , figures consistent with the product being positioned at the high end of the V5 range.
| Typology
|
High current power distributor / network filter |
| Recommended use
|
Power amplifiers, mono blocks, integrated amplifiers, active subwoofers, high-power AV electronics |
| Number of sockets
|
3 |
| Architecture
|
3 independent high current filter networks |
| System Link
|
Yes |
| Network input
|
16A IEC C20 |
| Supported mains voltage
|
100 – 240 V |
| Supported network frequency
|
50 – 60 Hz |
| Power at 230 V
|
3 x 16A (3,680 W total) |
| Power at 115V
|
3 x 16A (1,840 W total) |
| Overvoltage protection
|
153,000 A |
| Dimensions (W x H x D) |
220 x 147 x 350 mm |
| Weight
|
12 kg |
| Cable included
|
IsoTek Premier |

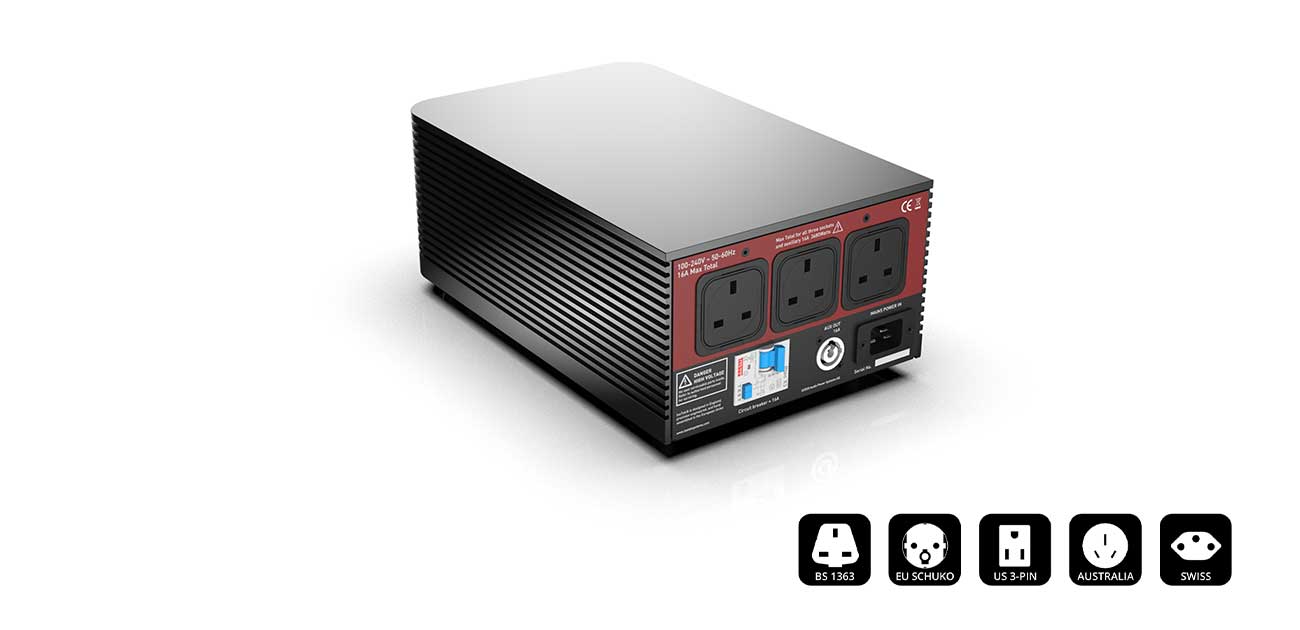

| Standard sockets available
|
UK, EU, US, AU, CH |
