Audiophile power distributor with 9 independent outputs and advanced filtering for hi-fi and AV systems
A compact yet very complete solution for the entire system

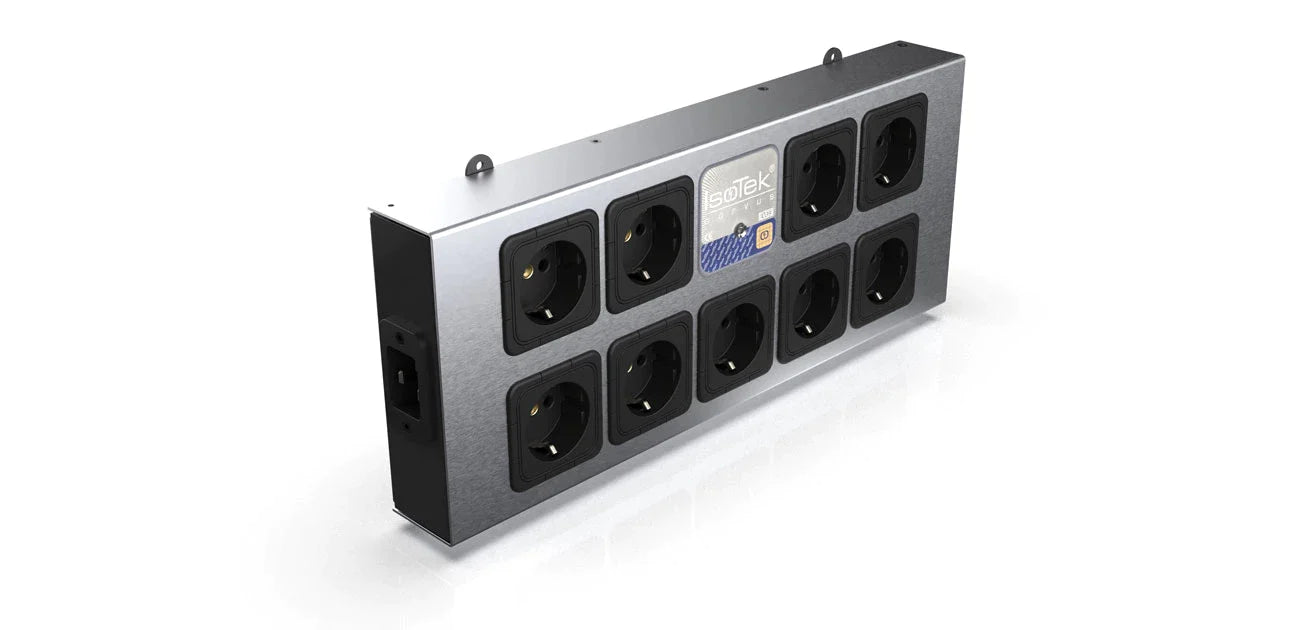

The IsoTek EVO3 Corvus is a power distribution box designed to provide cleaner power, better energy distribution, and greater protection for complete hi-fi and audio-video systems. It is an evolution of the popular EVO3 Polaris , but with a larger 9-outlet configuration and superior handling capacity, making it ideal for those who want to power numerous components with a single compact distribution center. Its slim design also makes it easy to place behind a cabinet or near a rack.
Nine independent sockets and an electrical scheme designed to reduce contamination between components
The design integrates 9 individual outputs that all feed back to the central PCB , avoiding the classic series connection between sockets typical of many traditional power strips. According to IsoTek, this architecture reduces differential noise contamination generated by connected components, improving mutual isolation between the system's electronics. The Corvus also offers 30 dB RFI reduction , full star grounding , and internal wiring made of 6N multistrand silver-plated OFC copper with FEP dielectric , features that make it particularly interesting for high-end audio and AV systems.
Compact construction, high protection and ready-to-use equipment
The EVO3 Corvus uses a 16A IEC C20 mains input, supports 100–240V/50–60Hz voltages, offers a maximum current of 16A and a total power output of up to 3,680W . Surge and surge protection is claimed to be 13,500A , while its very compact dimensions of 363 x 146.5 x 45mm and weight of around 2kg make it easy to fit into many home environments. Several retailers and press materials also note that the IsoTek EVO3 Premier cable is included .
| Typology |
Audiophile power distributor / mains filter |
| Number of sockets
|
9 |
| Architecture
|
9 individual outputs connected to the central PCB |
| RFI reduction
|
30 dB |
| Overvoltage protection
|
13,500 A |
| Grounding
|
Star-earthed complete |
| Internal wiring
|
6N multistrand silver-plated OFC copper with FEP dielectric |
| Network input
|
16A IEC C20 |
| Supported mains voltage
|
100 – 240 V |
| Supported network frequency
|
50 – 60 Hz |
| Maximum current
|
16A HRC |
| Total power |
3,680 W |
| Assembly
|
Wall mounting option |
| Dimensions (L x W x H)
|
363 x 146.5 x 45 mm |
| Weight
|
2 kg |
| Cable included
|
IsoTek EVO3 Premier |
| Standard sockets available
|
UK, EU, US, CH, AU, ZA |
