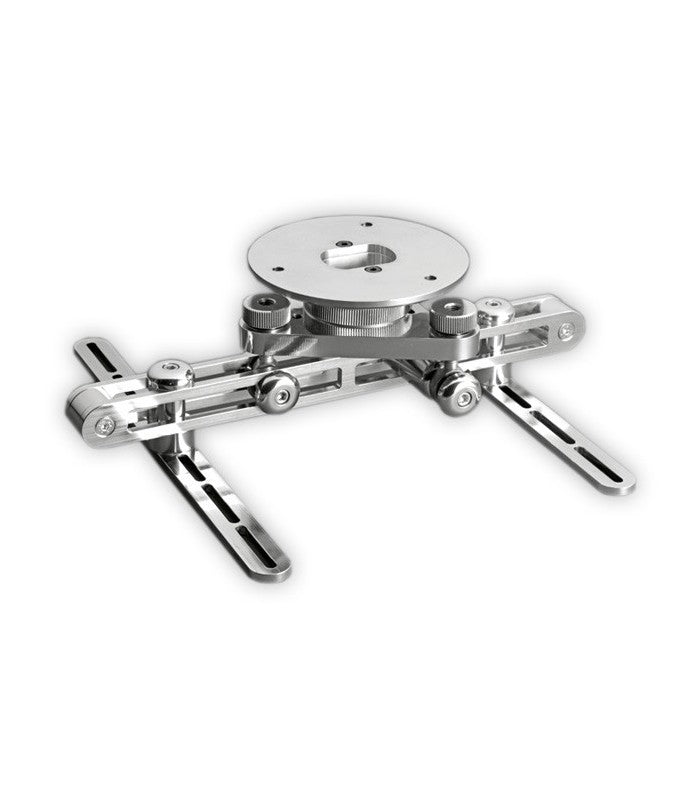

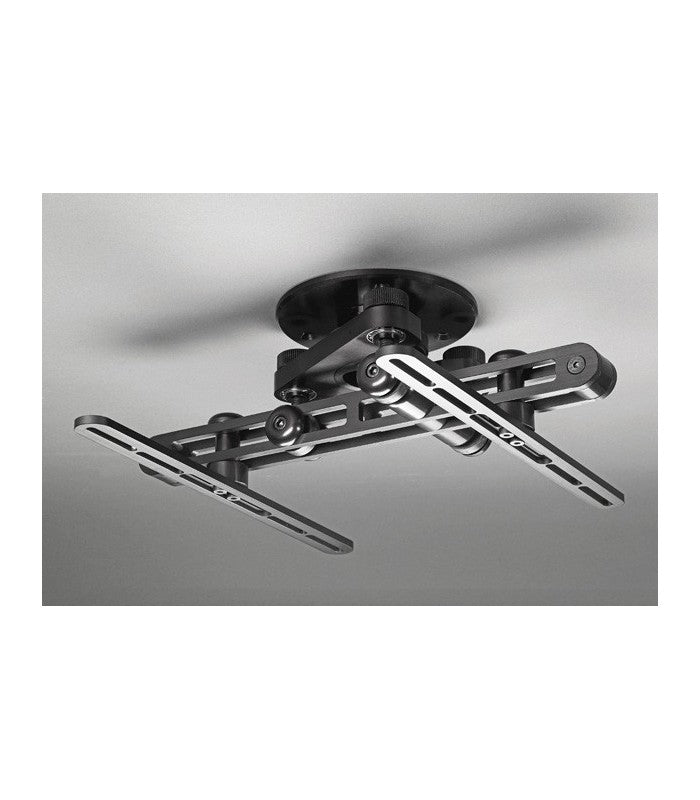

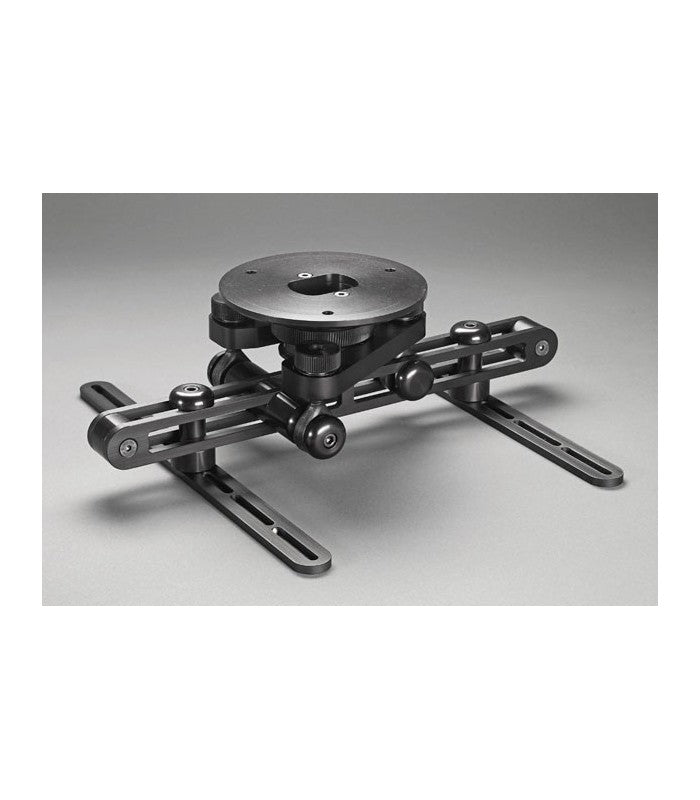

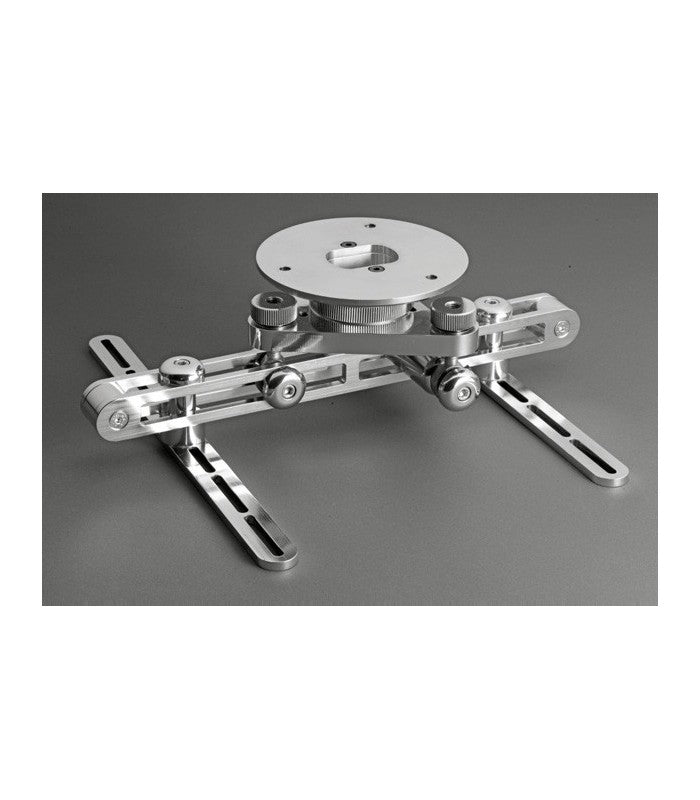

Domolift CPM1 Grade B

Domolift CPM1 Grade B: projector mount with minor cosmetic flaws

Units of the CPM1 mount with minor cosmetic flaws: the function is that of the CPM1, to fit the projector to the ceiling or the wall and align it with the screen.

Adjustment

The mount corrects the plane of the projector micrometrically, independently in every position in space. Nine ball bearings and three knobs give precise, damped movements with no mechanical play, to centre the projected frame exactly. With 14 degrees of freedom it suits almost any projector, and the optional accessories widen the combinations further.

• Built entirely in Anticorodal aluminium
• Maximum load with 4 anchor points: 45 kg
• Sled: 370 mm long, 330 mm wide at most, 110 to 125 mm high; weight 1.8 kg
• Packaging: 42 x 21 x 14 cm, 2.8 kg
• Finishes: black and silver
