Class AB stereo power amplifier with an 800 W linear supply
The Eversolo AMP-F8 is a Class AB stereo power amplifier designed to drive even large floorstanding speakers with authority. Each channel uses three pairs of high-current BJT transistors, matched and connected in parallel to distribute current evenly and maintain linearity as the load changes. The power supply is linear, with a custom 800 W toroidal transformer and a bank of 24 audio-grade filter capacitors; a DC blocking circuit protects the toroid from the DC component of the mains, reducing mechanical vibration and noise.
Power, distortion and speaker control
In stereo the AMP-F8 delivers 180 W RMS per channel into 8 Ω and 280 W RMS into 4 Ω; bridged, it becomes a mono amplifier with 500 W RMS into 8 Ω. The input stage uses a dual differential architecture with symmetrical circuitry and precision negative feedback, which rejects common-mode noise. The result is a THD+N of 0.003% at 1 kHz and a signal-to-noise ratio of at least 115 dB (A-weighted). The damping factor above 400 keeps woofers under control even with complex loads, while the frequency response extends from 10 Hz to 30 kHz within ±0.5 dB.
Inputs, VU meters and build

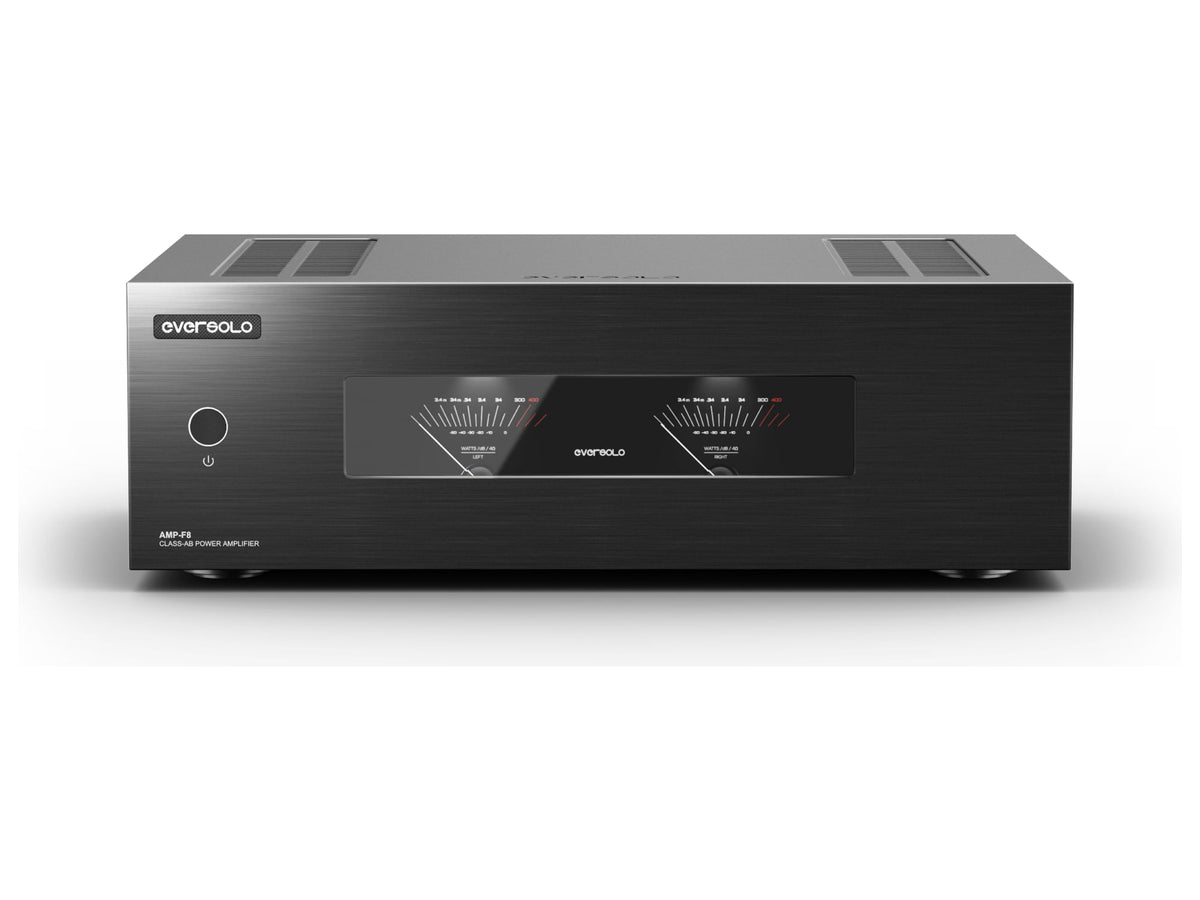

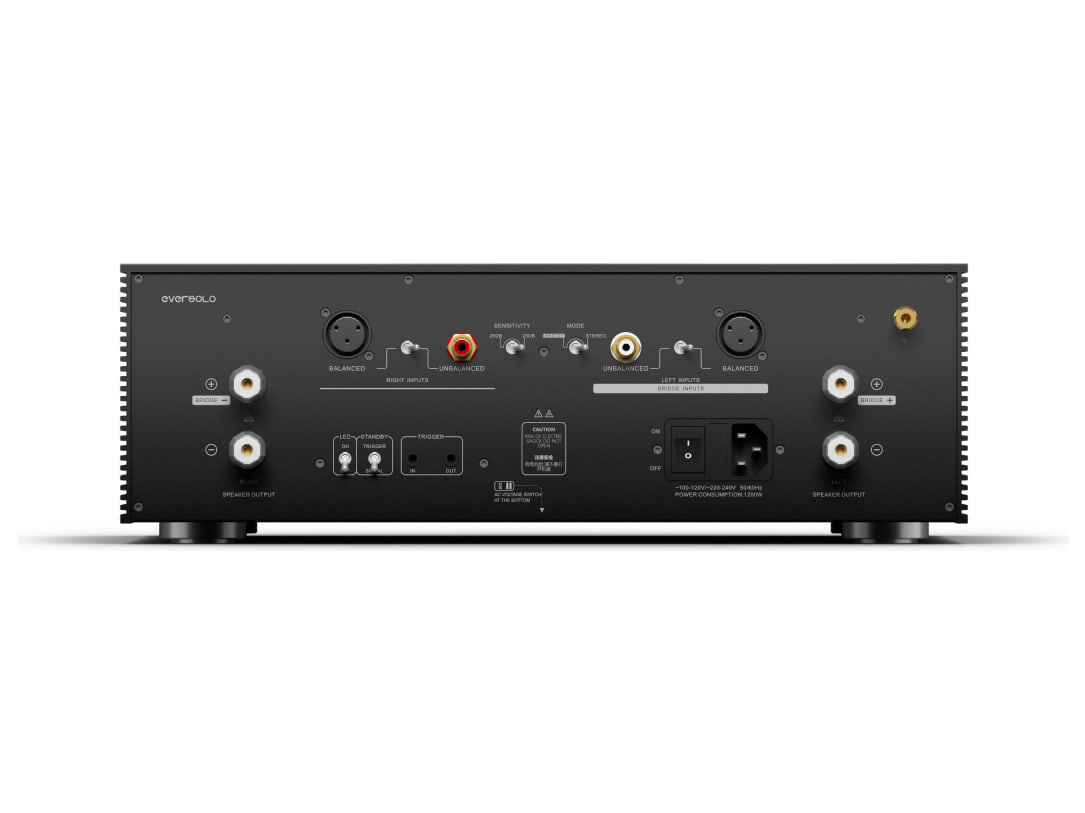

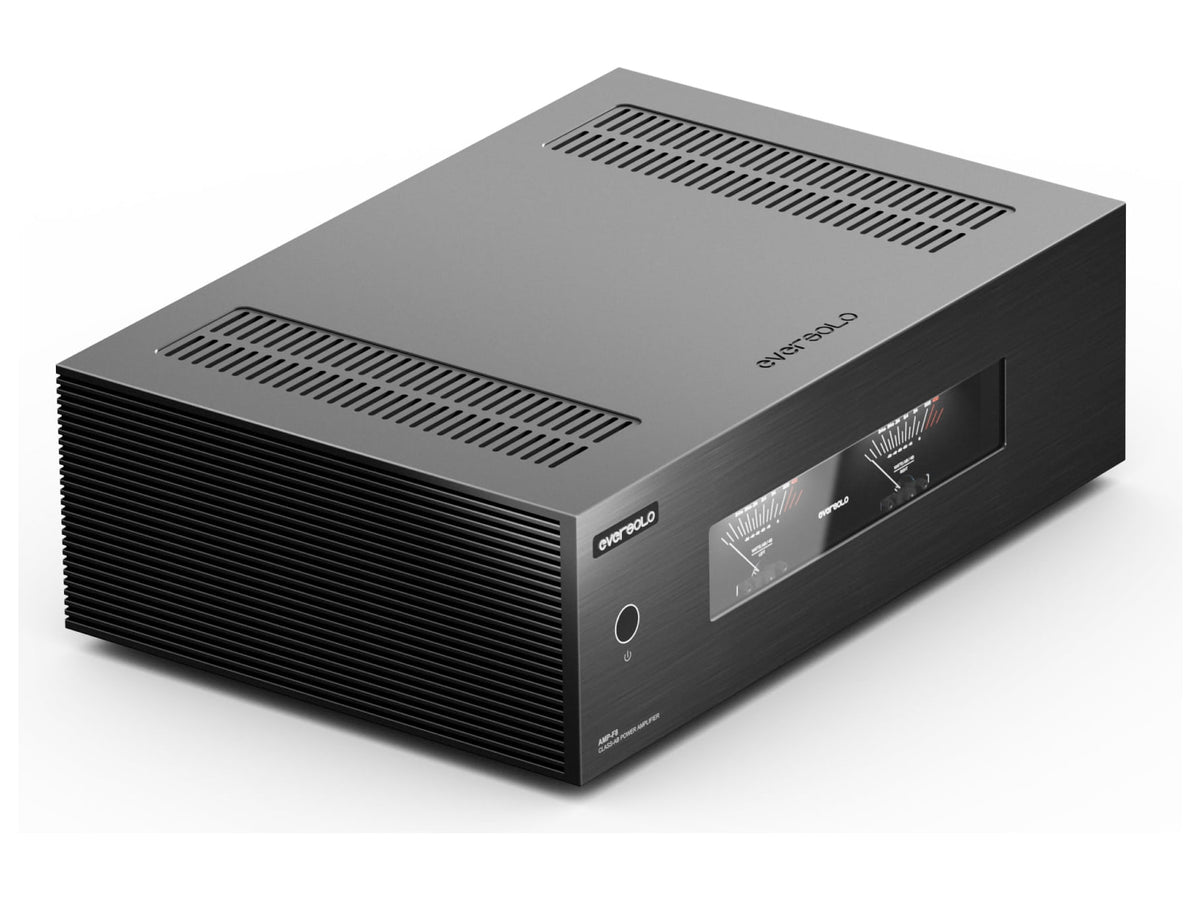

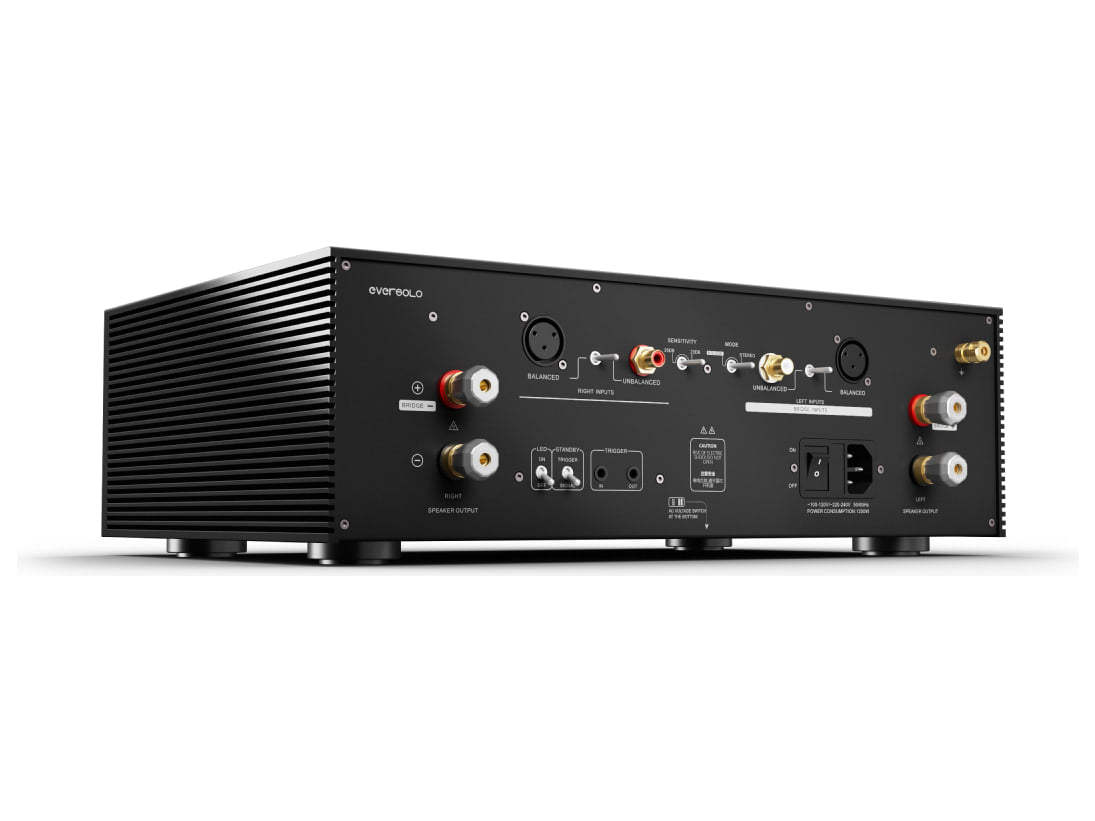

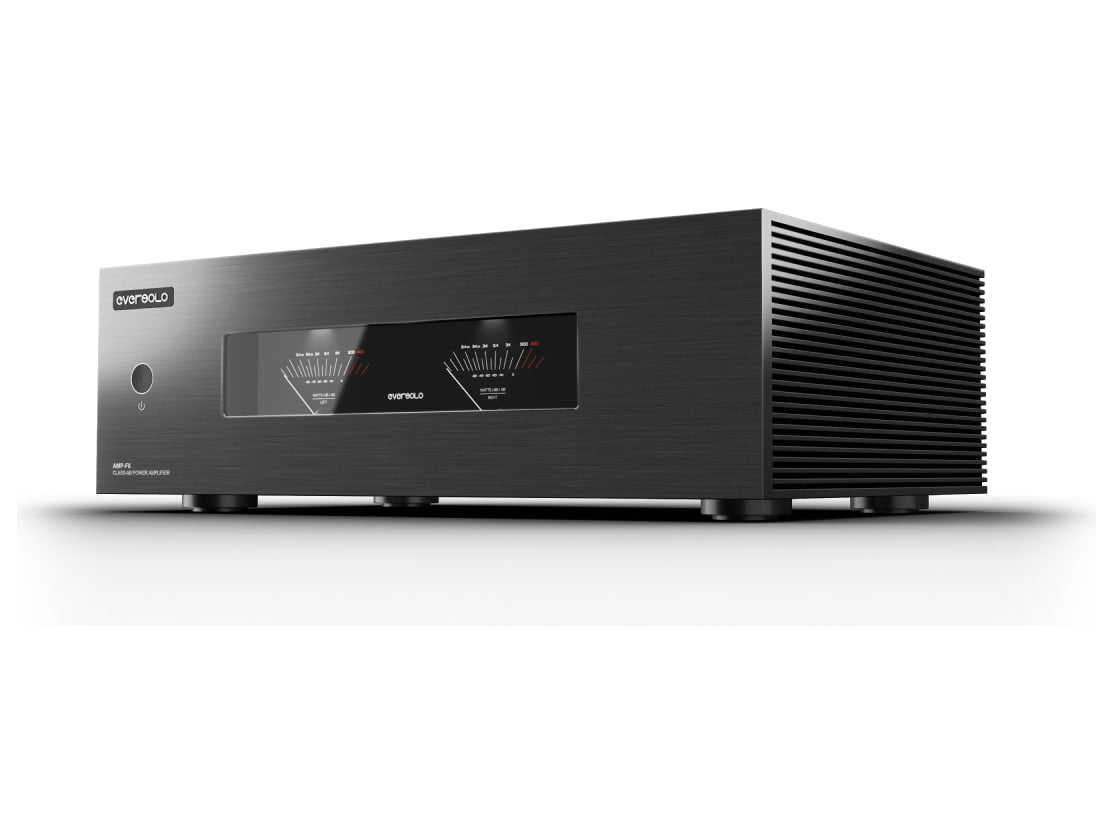

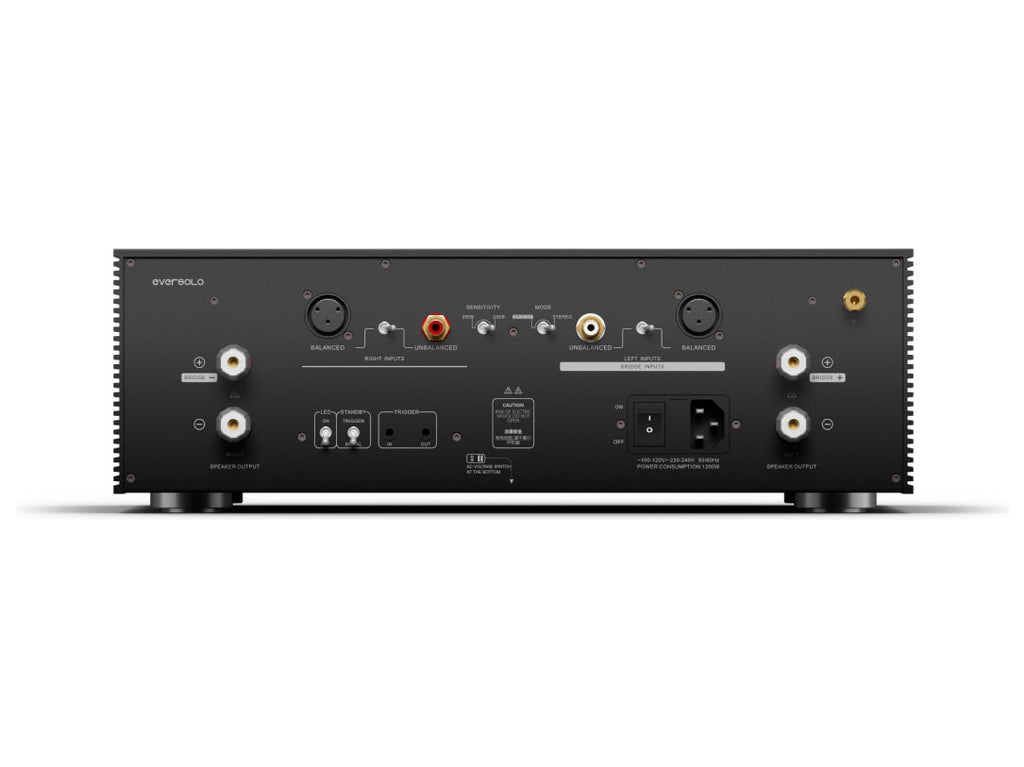

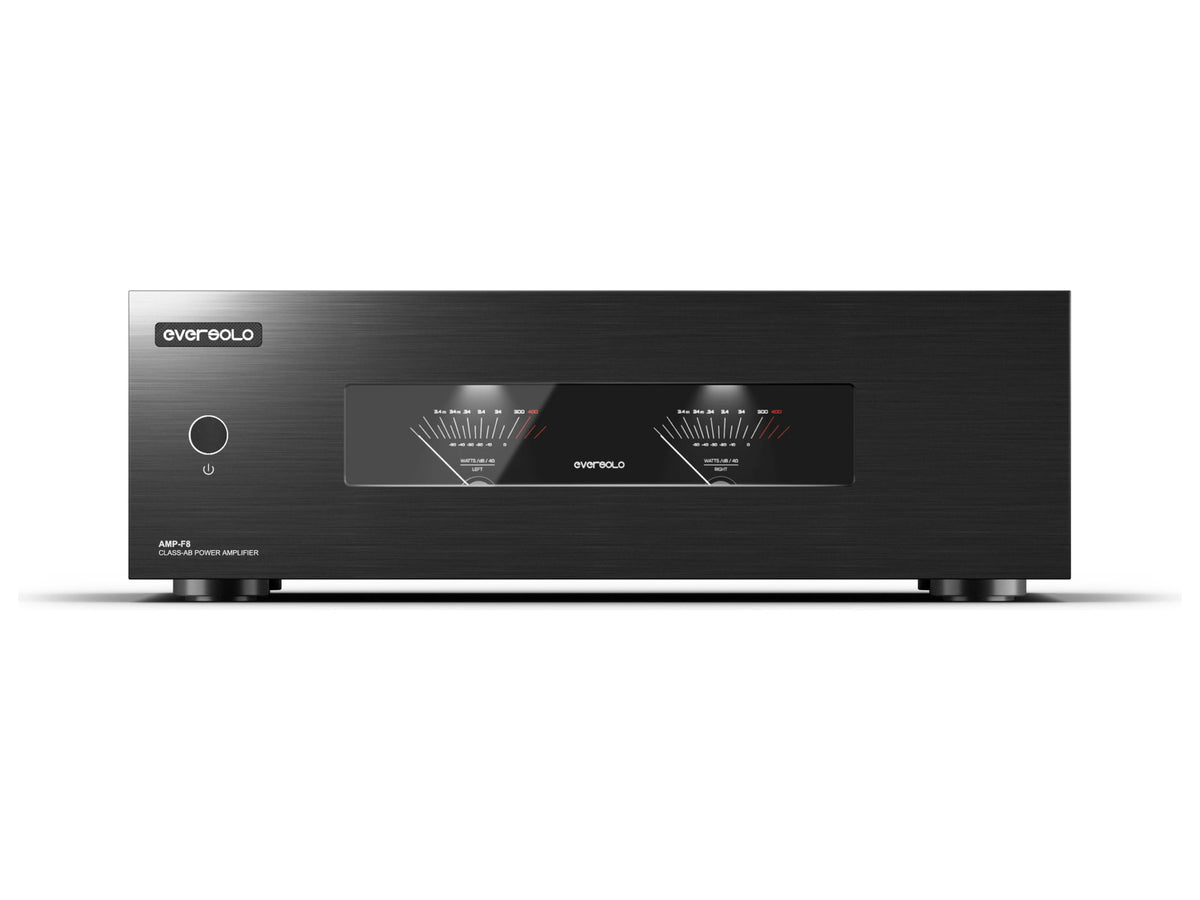

The inputs are balanced XLR and unbalanced RCA, with 23 or 29 dB gain to suit preamplifiers, DACs and streamers with a variable output such as the Eversolo DMP-A8 Gen 2. On the front, two analogue VU meters follow the music in real time. The chassis is CNC-machined from thick aluminium, anodised and sandblasted: it damps resonances, helps heat dissipation and shields against electromagnetic interference. The speaker terminals are of high quality. The AMP-F8 measures 265 × 388 × 119 mm and weighs 15.9 kg; the power cable and trigger cable are supplied.
Technical specifications
| Model |
Eversolo AMP-F8 |
| Type |
Stereo power amplifier |
| Operating class |
AB |
| Stereo power |
180 W RMS into 8 Ω • 280 W RMS into 4 Ω |
| Bridged power |
500 W RMS into 8 Ω |
| THD+N |
0.003% (at 1 kHz) |
| S/N ratio |
≥ 115 dB (A-weighted) |
| Damping factor |
> 400 (8 Ω, 1 kHz) |
| Frequency response |
10 Hz – 30 kHz (±0.5 dB, 1 W into 8 Ω) |
| Crosstalk |
≤ -95 dB (180 W into 8 Ω, 1 kHz) |
| Inputs |
Balanced XLR × 1, unbalanced RCA × 1 |
| Input impedance |
XLR 10 kΩ • RCA 10 kΩ |
| XLR sensitivity (180 W into 8 Ω) |
5.2 V (23 dB gain) • 2.6 V (29 dB gain) |
| RCA sensitivity (180 W into 8 Ω) |
2.65 V (23 dB gain) • 1.3 V (29 dB gain) |
| Internal power supply |
Linear, 800 W toroidal transformer |
| Power requirement |
100–120 V 60 Hz / 220–240 V 50 Hz |
| Maximum power consumption |
1200 W |
| Dimensions (W × D × H) |
265 × 388 × 119 mm |
| Net weight |
15.9 kg |
| In the box |
Power cable, trigger cable, manual |
