Focal 100 ICLCR5: 2-way in-ceiling LCR loudspeaker

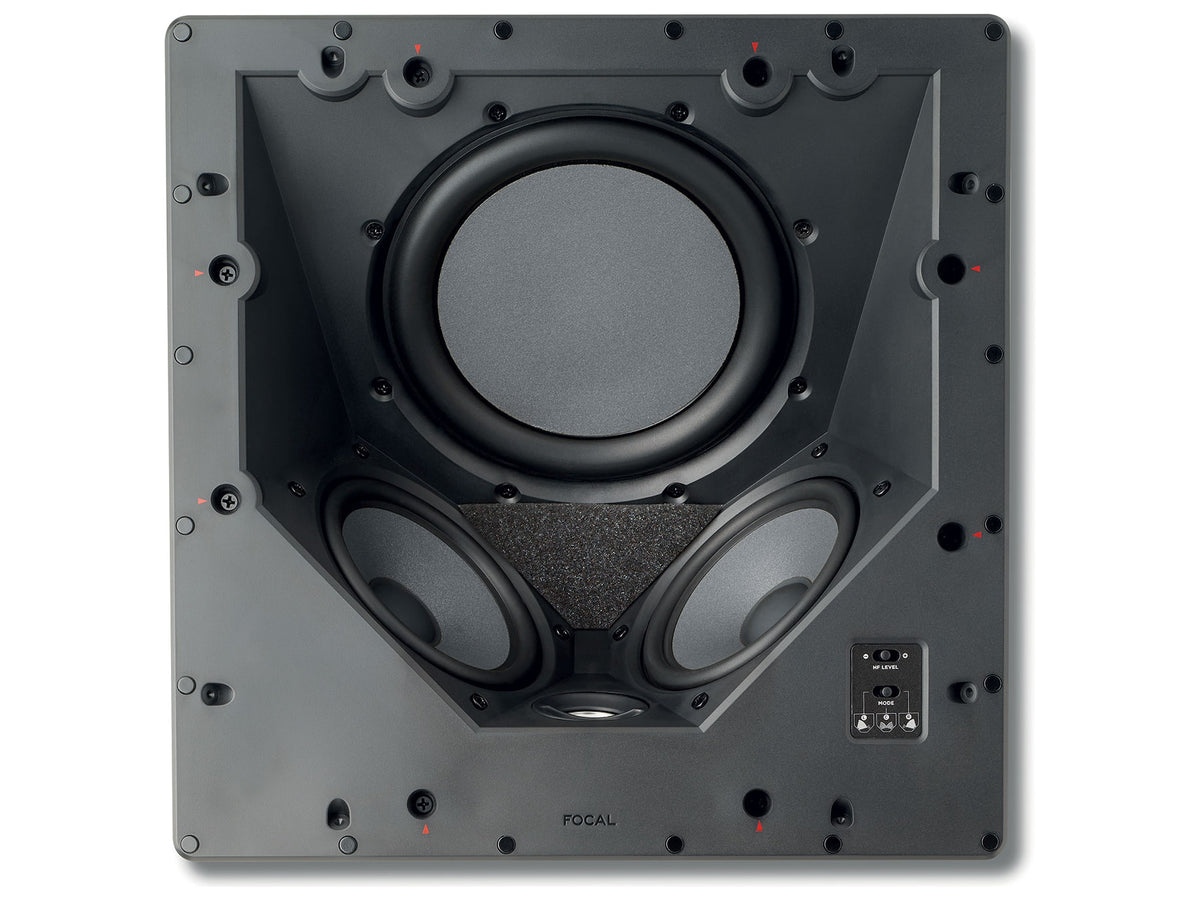

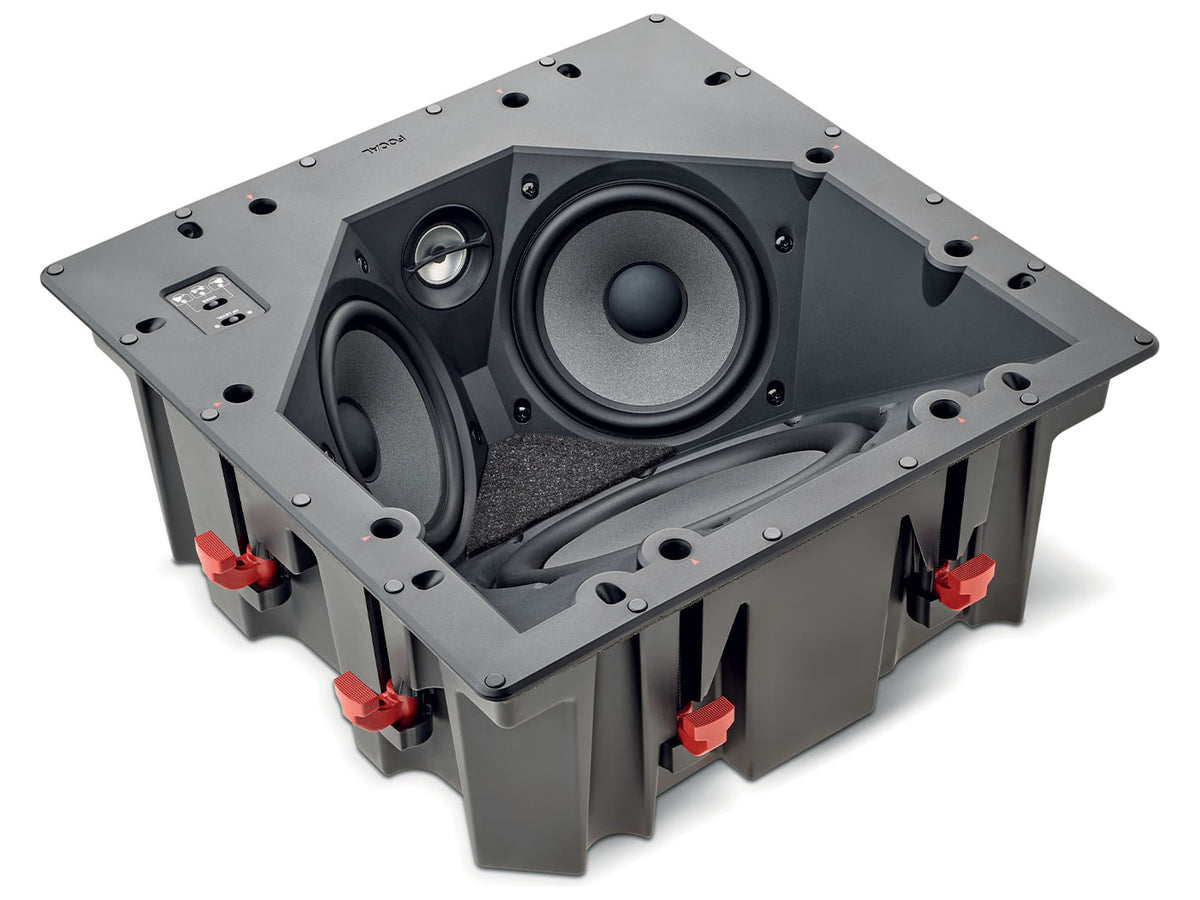

A compact in-ceiling loudspeaker with two 13 cm Polyglass woofers and a tweeter that can be aimed by 20°, meant to complete a home cinema system together with conventional or wall-mounted loudspeakers. It covers five roles: front left, centre or right channel and rear channels. It is the answer for rooms with no wall behind the listening position.
Two three-position selectors set the loudspeaker up: one chooses the left, centre or right function and corrects directivity, so the tone stays the same from every seat; the other raises or lowers the treble by 3 dB according to the acoustics of the room.
The Polyglass membrane, a Focal exclusive, is a cellulose cone coated with glass microbeads: the stiffness of glass adds to the damping of paper, for a clean, uncoloured midrange. The treble is handled by an aluminium inverted-dome tweeter, a Focal signature since 1981, which gives wide dispersion and very low directivity.
Installation

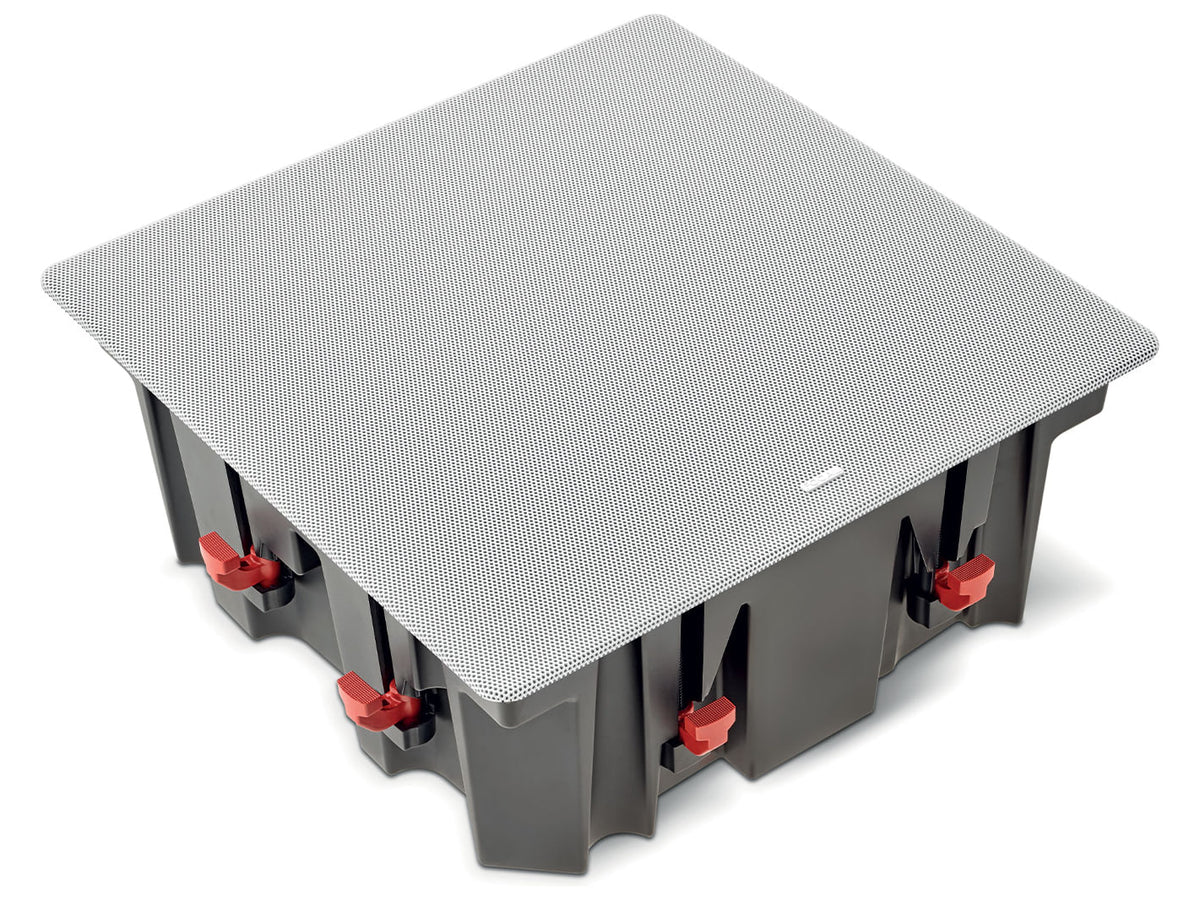

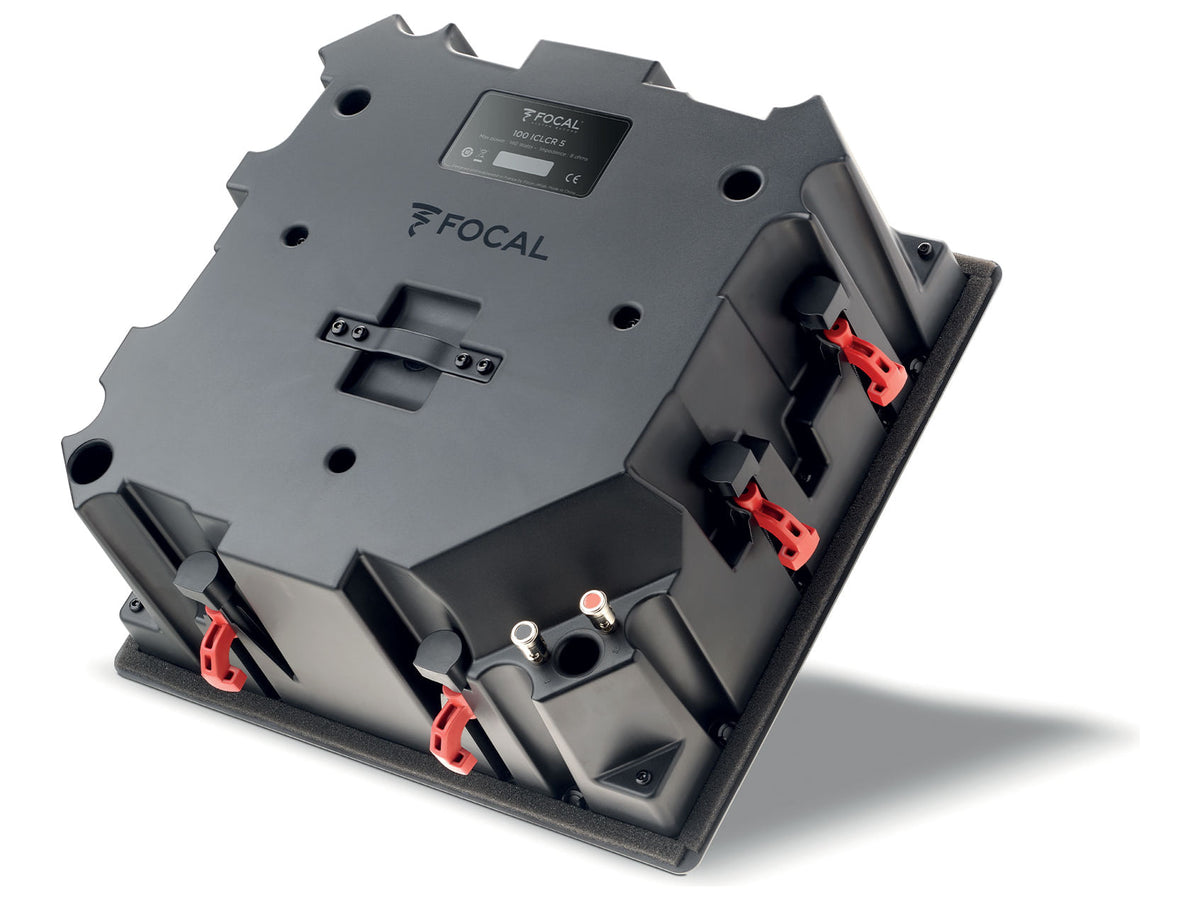

Shallow mounting depth, optimised fixing brackets and a one-piece frame: installation is quick. The magnetic grille is ready to be painted in the colour of the wall or ceiling.
- Frequency response (±3 dB): 65 Hz - 23 kHz
- Low frequency point (-6 dB): 55 Hz
- Mounting depth 150 mm, cut-out 328 × 328 mm, for panels from 8 to 60 mm
- 354 mm high, 354 mm wide, 150 mm deep; it weighs 5.3 kg
- Nominal impedance 8 ohms (minimum 4.6)
- Paintable magnetic grille
