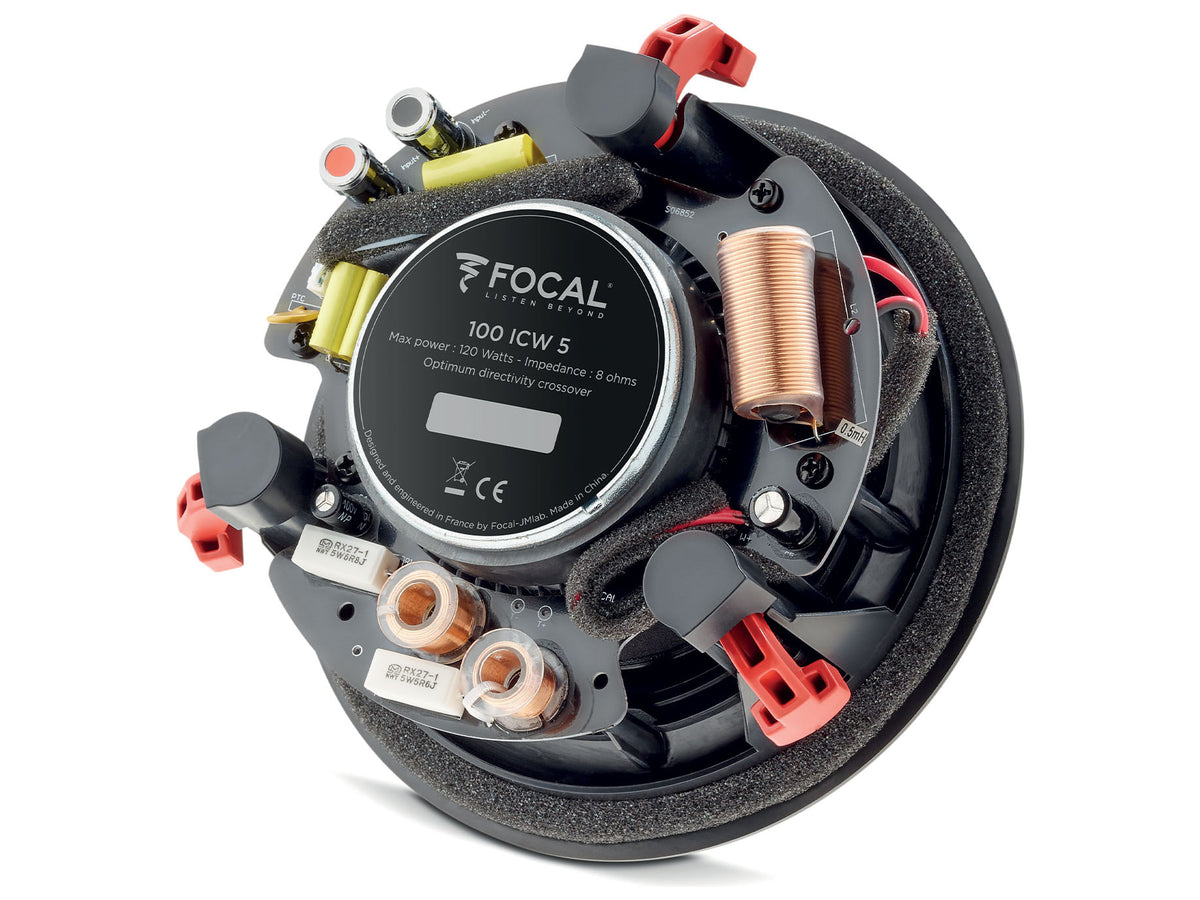

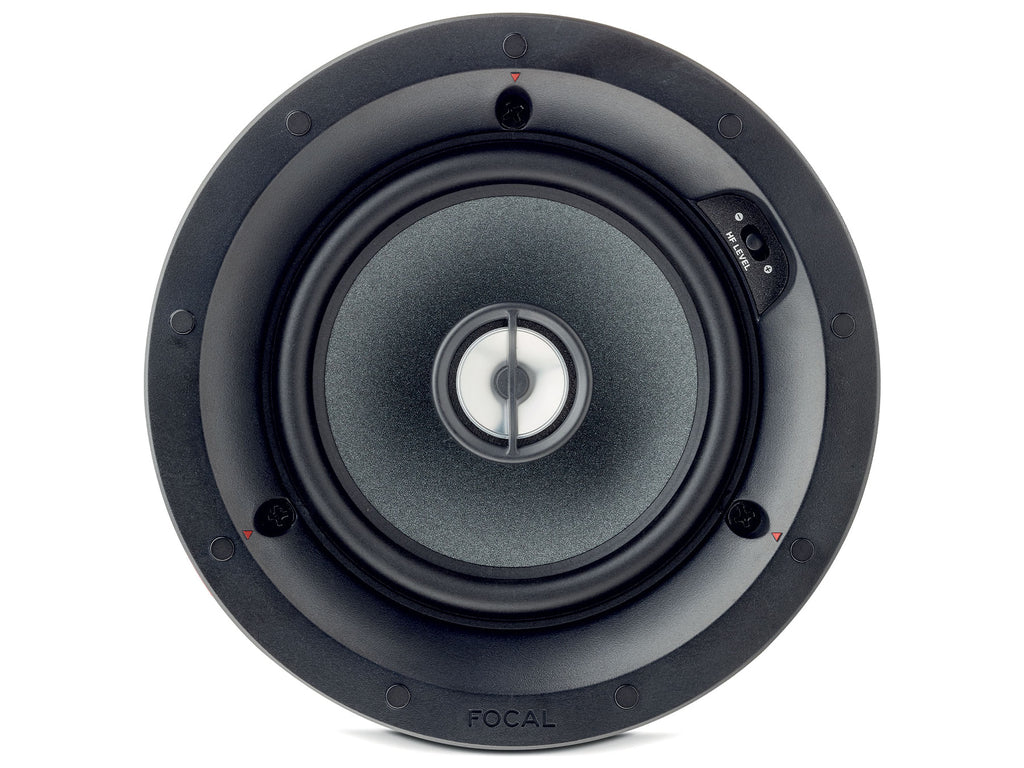

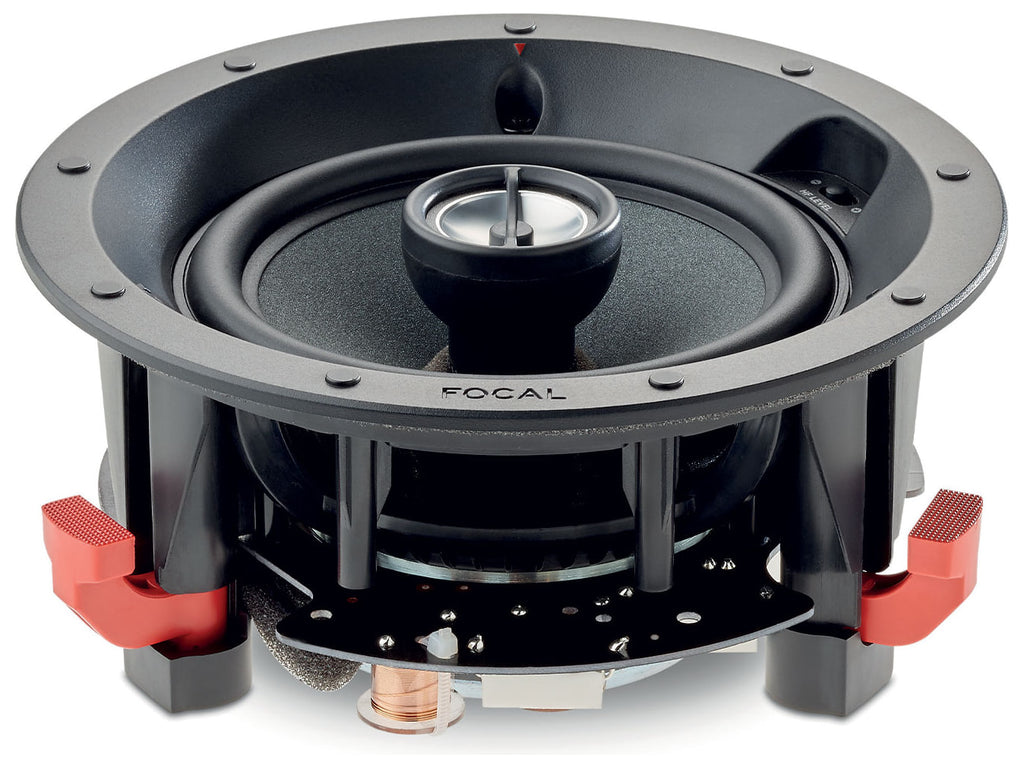

Focal 100 ICW5: 2-way coaxial in-wall and in-ceiling loudspeaker
The 13 cm model of the 100 Series, built into wall or ceiling panels between 8 and 35 mm thick. It serves passage areas such as hallway and living room well, stereo listening in a bedroom or kitchen and a home cinema system. The tweeter level is adjusted to the acoustics of the room.
The Polyglass membrane, a Focal exclusive, is a cellulose cone coated with glass microbeads: the stiffness of glass adds to the damping of paper, for a clean, uncoloured midrange. The treble is handled by an aluminium inverted-dome tweeter, a Focal signature since 1981, which gives wide dispersion and very low directivity.
Installation
Shallow mounting depth, optimised fixing brackets and a one-piece frame: installation is quick. The magnetic grille is ready to be painted in the colour of the wall or ceiling. The Polyglass membrane is tropicalised: the loudspeaker can also work in damp rooms such as a bathroom.
- Frequency response (±3 dB): 65 Hz - 23 kHz
- Low frequency point (-6 dB): 56 Hz
- Sensitivity 88 dB, nominal impedance 8 ohms (minimum 7.3)
- Suggested amplification: 15 - 100 W
- Mounting depth 87 mm, cut-out 160 mm in diameter, for panels from 8 to 35 mm
- It weighs 1.45 kg

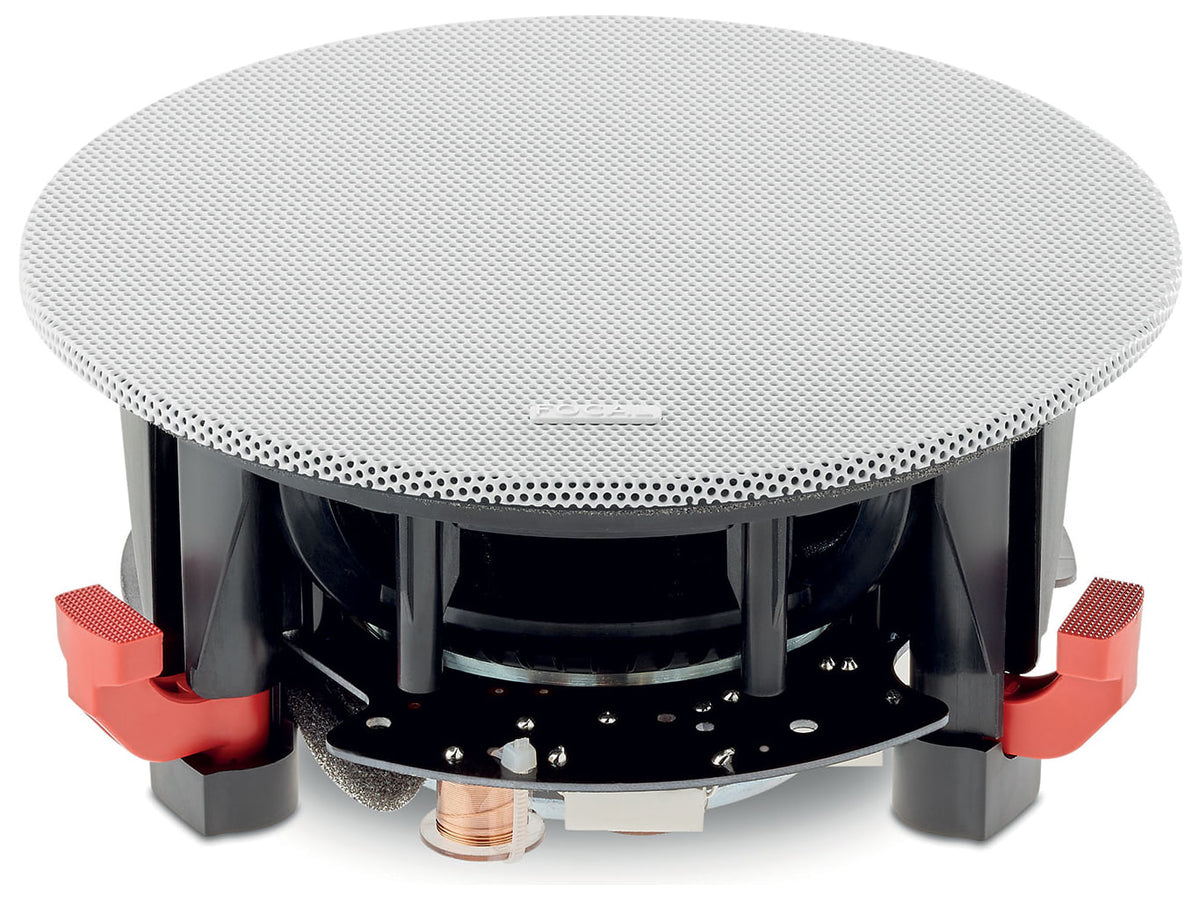

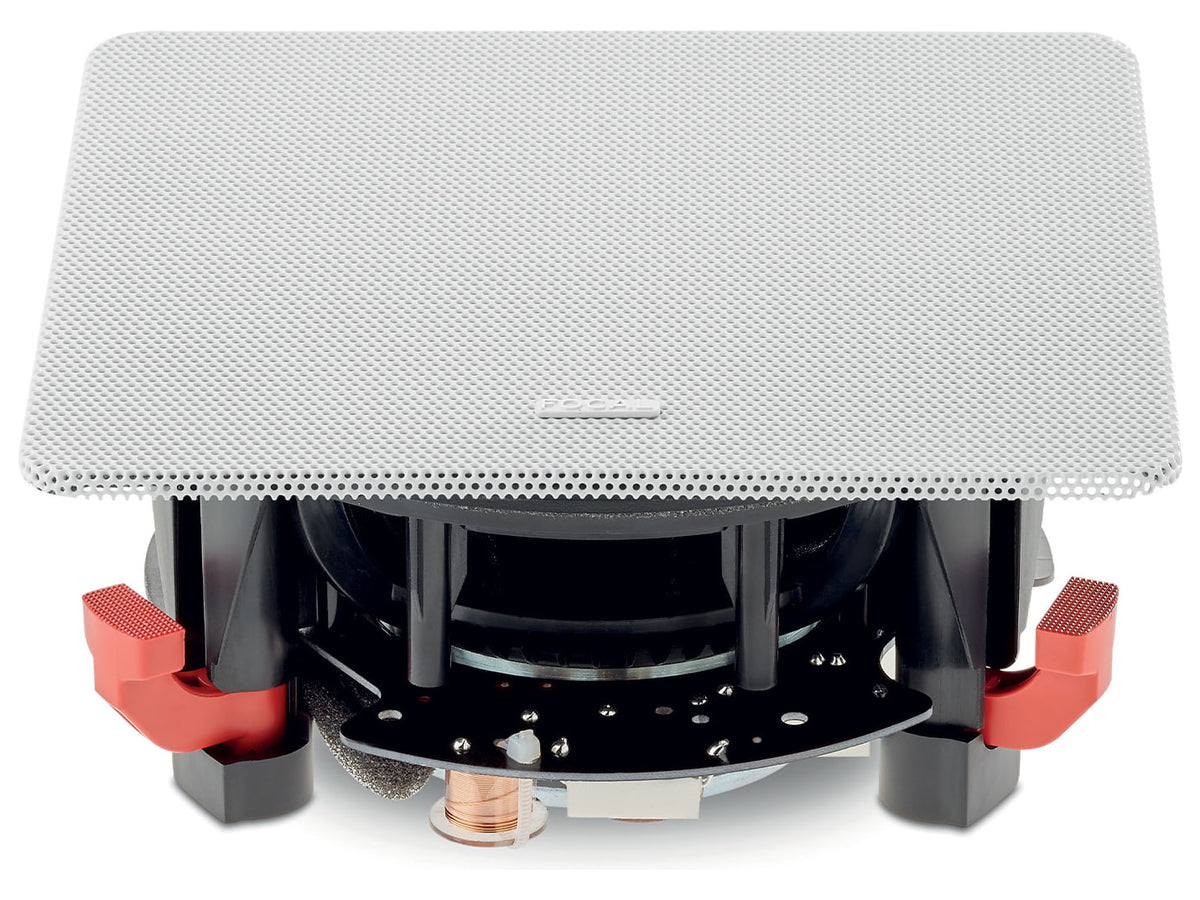

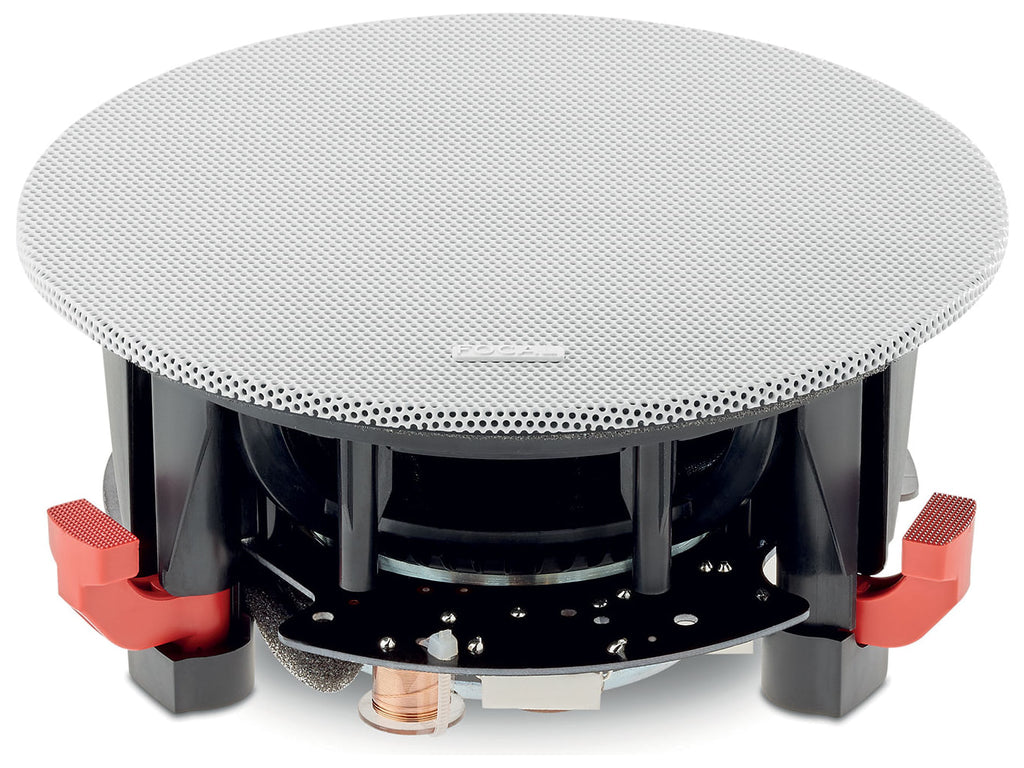

- Round or square magnetic grille, paintable
