Focal 100 IWLCR5: 2-way in-wall LCR loudspeaker

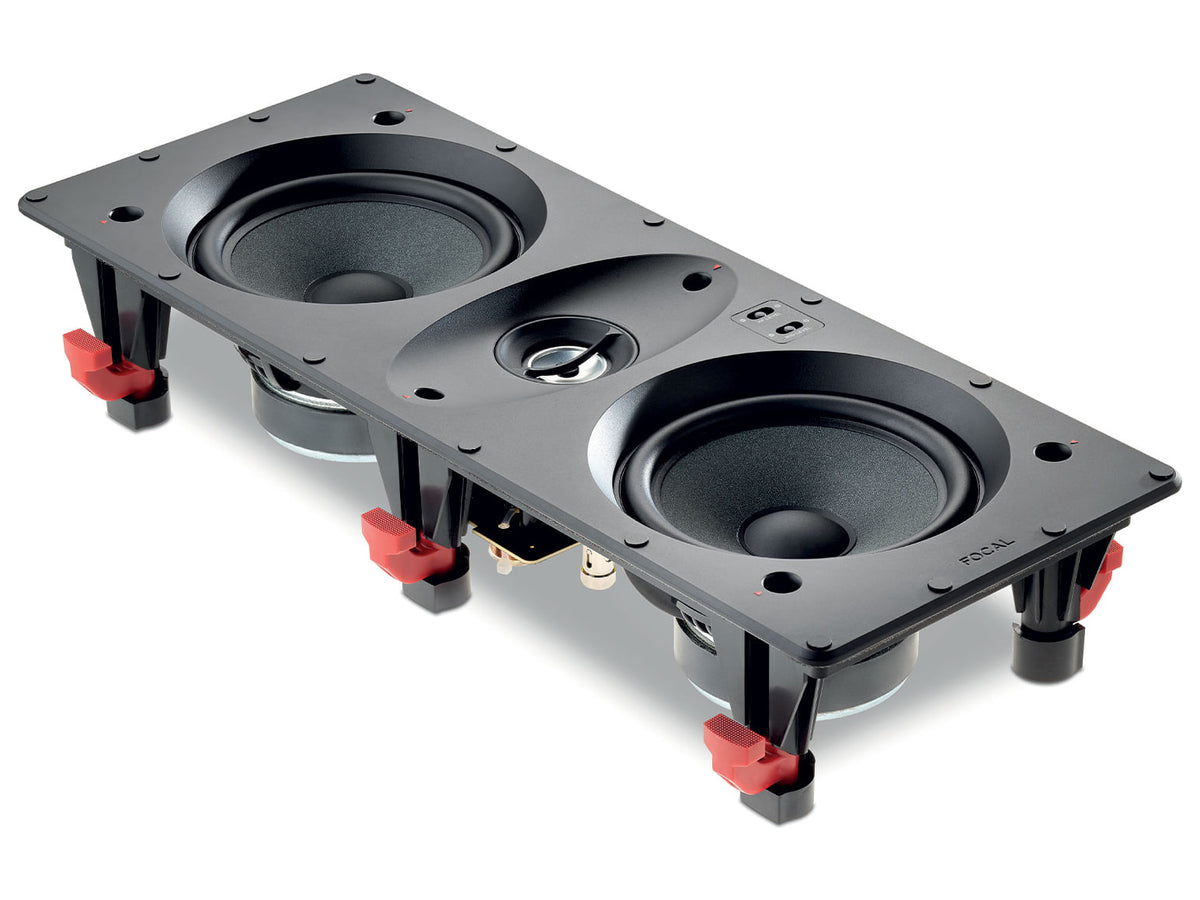

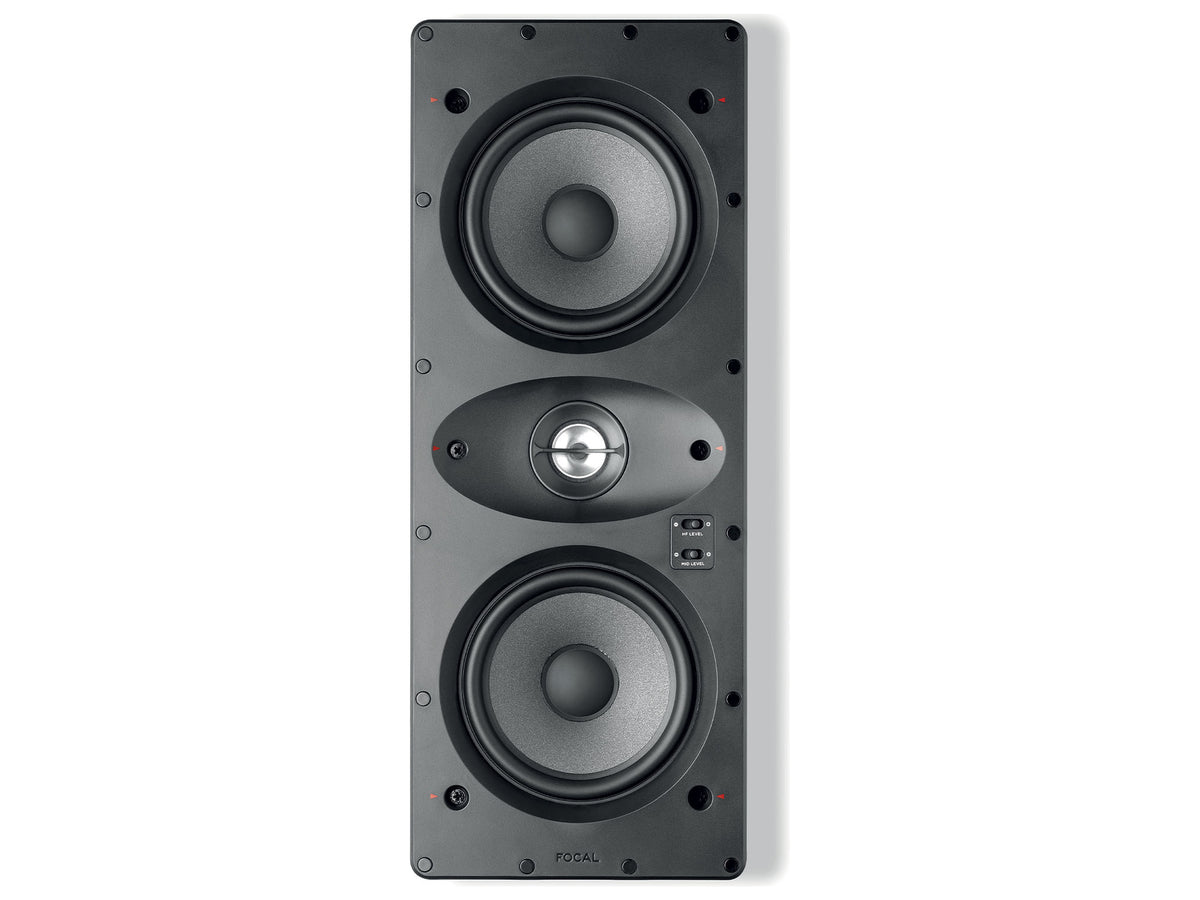

In-wall loudspeaker for the left, centre and right channels of a home cinema system, also usable horizontally below or above the screen. The D'Appolito layout, with the tweeter between two 13 cm Polyglass woofers, handles power well and controls directivity. A three-position switch assigns the left, centre or right function, for the same tonal balance at the listening position.
The inverted-dome tweeter can be aimed; separate correctors for treble and midrange adapt the response to the room.
The Polyglass membrane, a Focal exclusive, is a cellulose cone coated with glass microbeads: the stiffness of glass adds to the damping of paper, for a clean, uncoloured midrange. The treble is handled by an aluminium inverted-dome tweeter, a Focal signature since 1981, which gives wide dispersion and very low directivity.
Installation

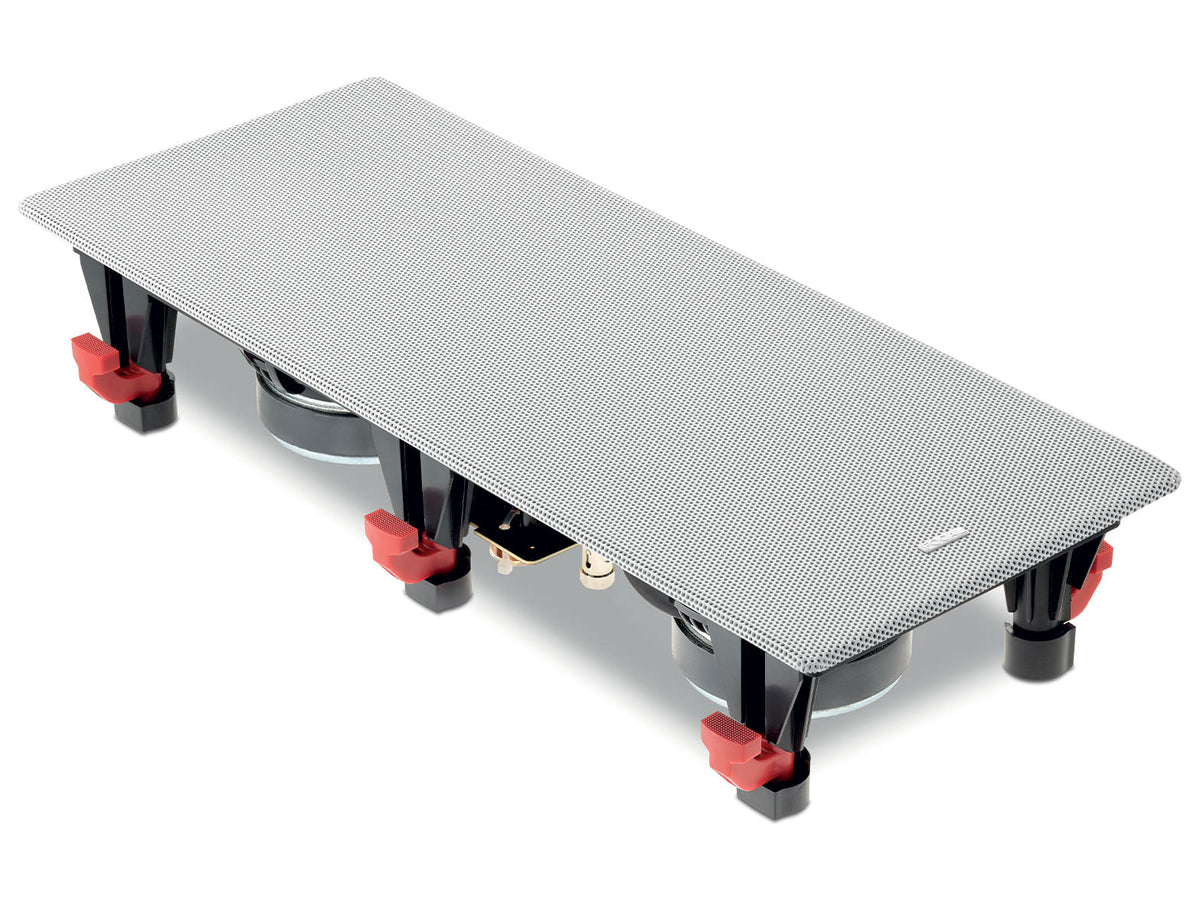

Shallow mounting depth, optimised fixing brackets and a one-piece frame: installation is quick. The magnetic grille is ready to be painted in the colour of the wall or ceiling.
- Frequency response (±3 dB): 55 Hz - 23 kHz
- Low frequency point (-6 dB): 43 Hz
- Sensitivity 90.5 dB, nominal impedance 8 ohms (minimum 3.8)
- Suggested amplification: 25 - 120 W
- Mounting depth 83 mm, for panels from 8 to 35 mm
- 173 mm high, 440 mm wide, 86 mm deep; it weighs 2.9 kg
- Paintable magnetic grille
