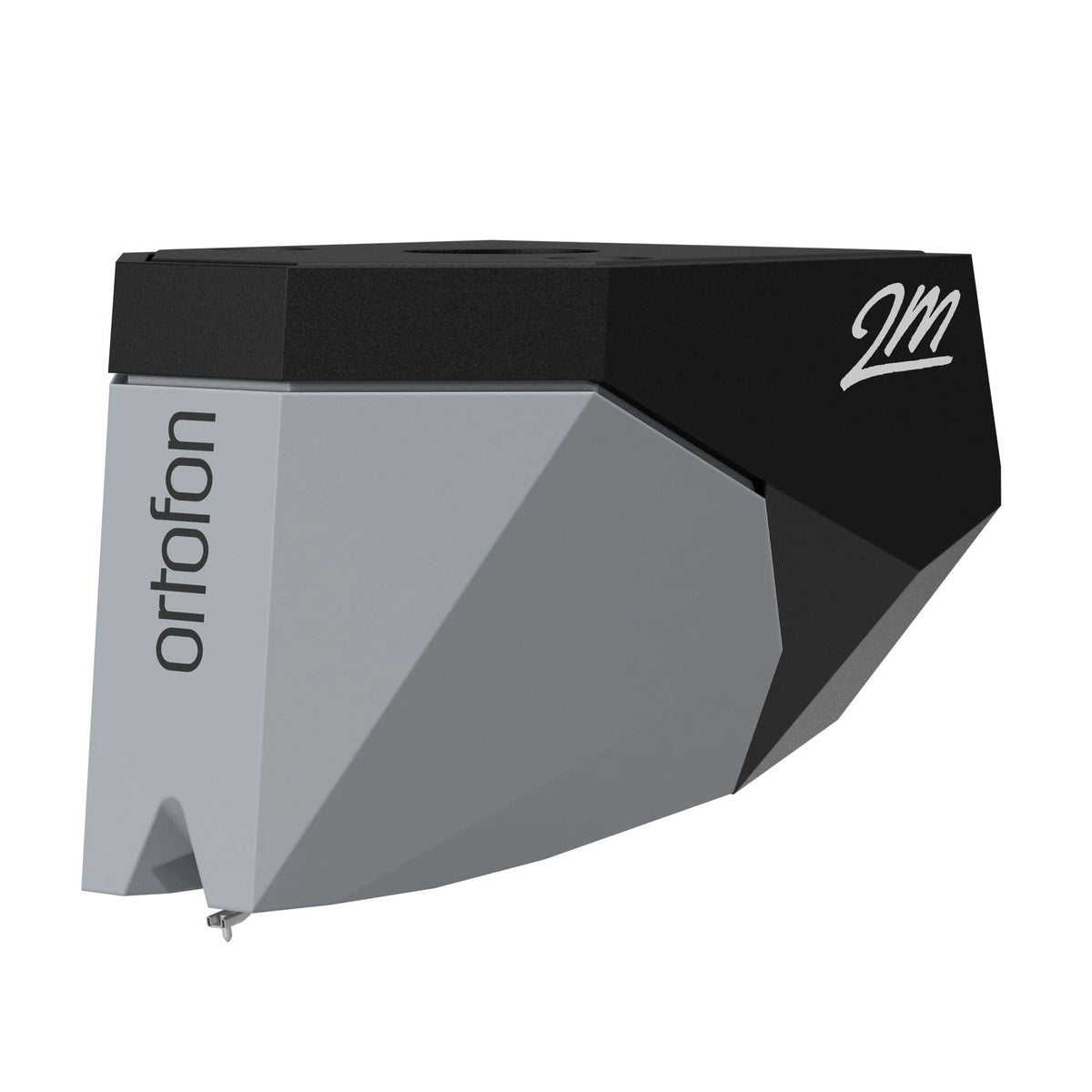

Ortofon 2M 78

Mono moving magnet cartridge with a spherical stylus.

2M 78: the design

The 2M is Ortofon's best-known moving magnet series: the same body across the range, a high output that suits any MM phono input and a user-replaceable stylus. Moving up the range changes the diamond, and with it the detail the cartridge can read from the groove.

It carries a spherical stylus. Output is 4 mV, it tracks at 1.8 g and wants a load of 47 kohms.

It is made for 78 rpm records, whose groove is wider than a microgroove.

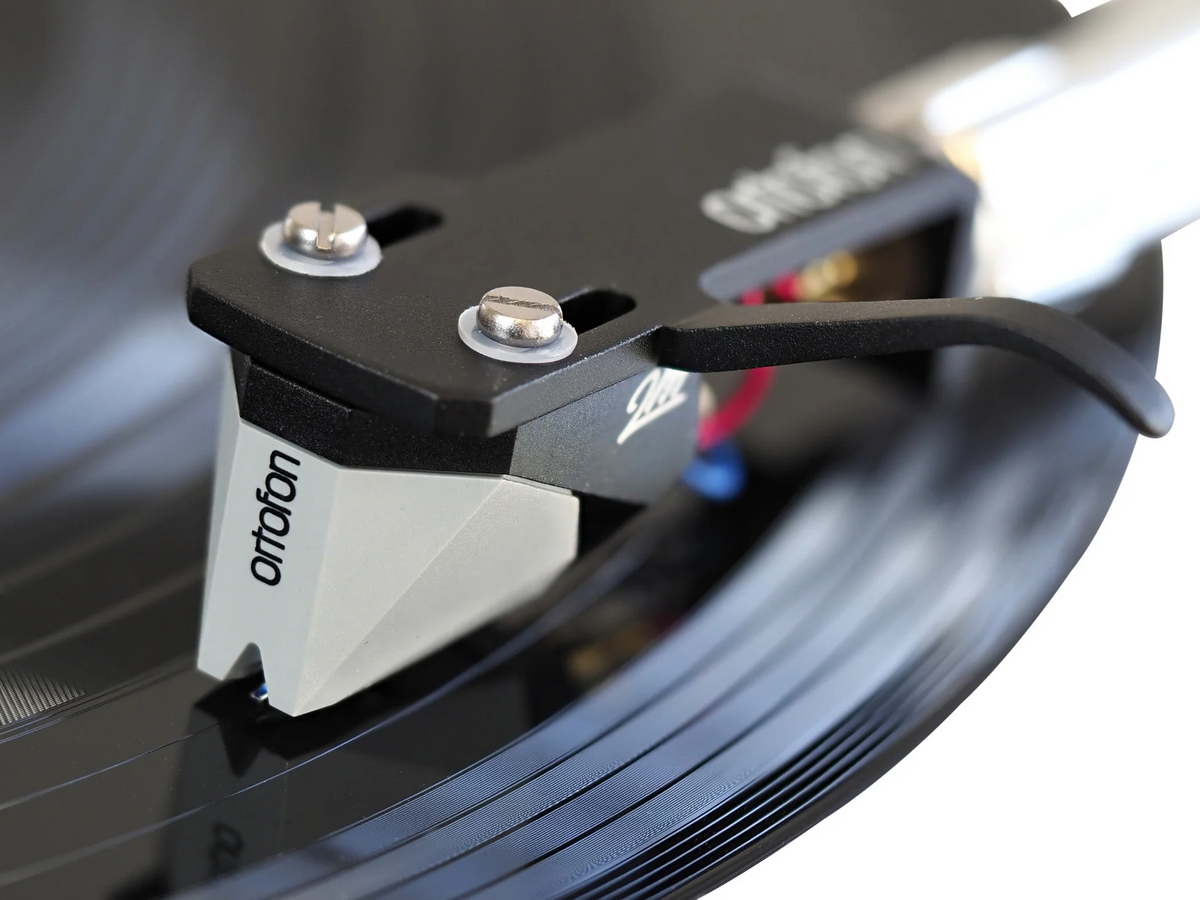

It can be chosen on its own or already fitted to the black SH-4 headshell, ready to plug onto the tonearm.

Specifications

• Type: moving magnet (MM), mono
• Stylus: spherical
• Output voltage: 4 mV
• Recommended tracking force: 1.8 g
• Recommended load: 47 kohms
• Weight: 7.2 g
