Motorised advance and lift wall bracket for TVs, with swivel
EAL-S is the swivel version of the Future Automation Electric Advance & Lift motorised wall bracket: it raises the screen to a better viewing height and turns it towards the viewer. It builds on the same principles as the Electronic Advance and Drop mechanism, of which it is the inverted counterpart.

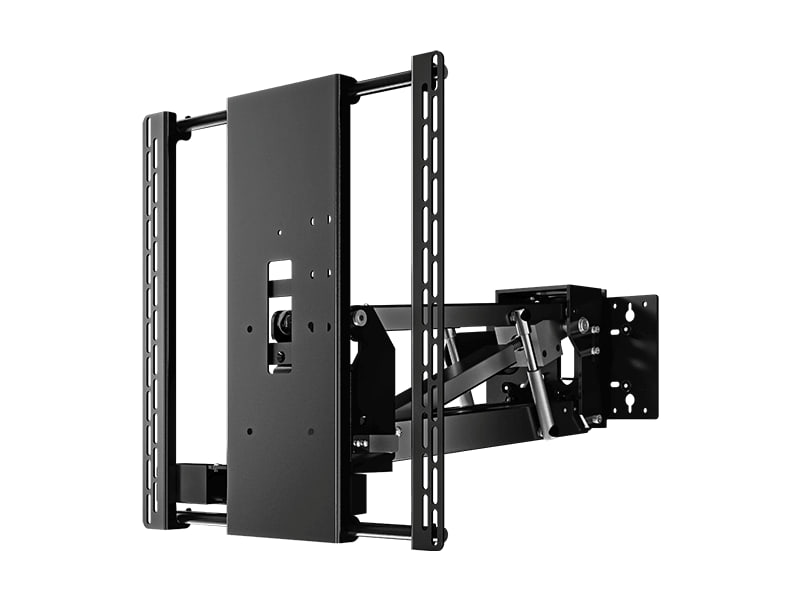

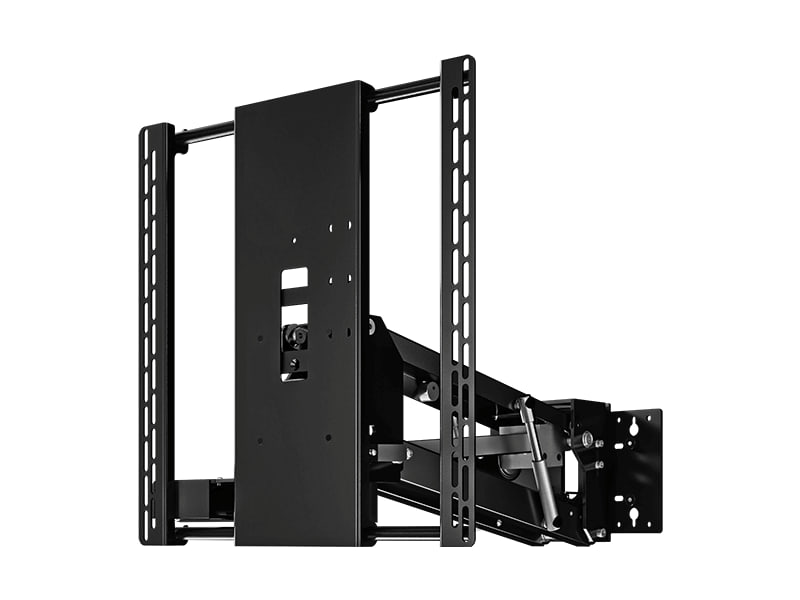

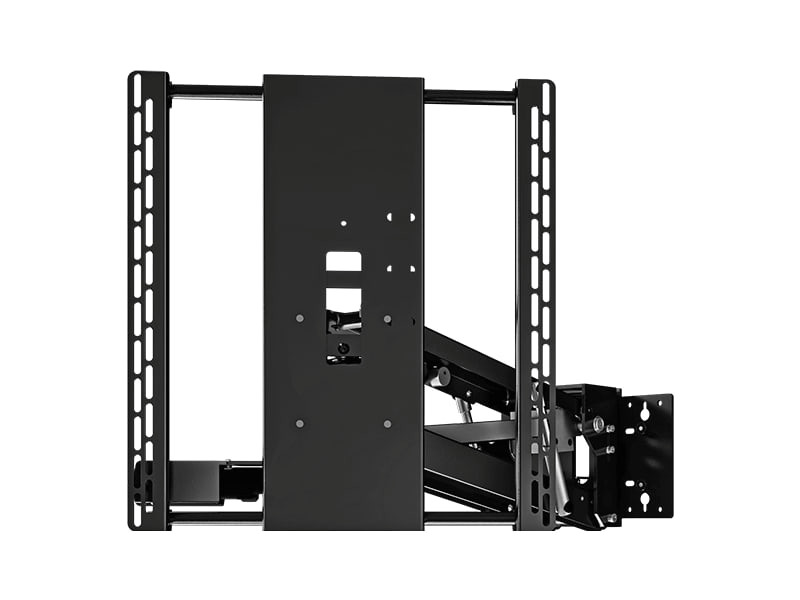

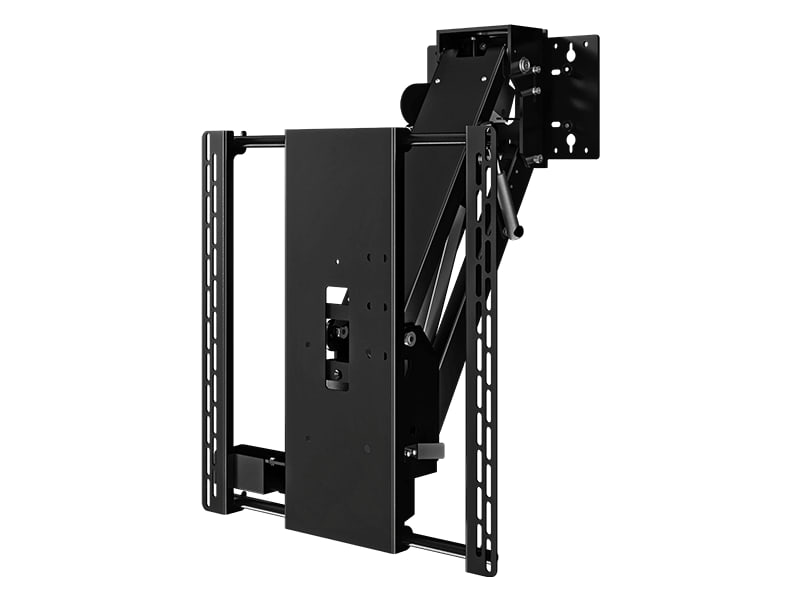

With this bracket the screen can be placed beneath a low cabinet or inside it, which leaves more freedom when deciding where the display goes in the home. The bracket comes away from the wall and pivots upward until the screen is at viewing level; its central column, which is screw-threaded, and the soft opening and closing function keep the travel steady and natural. The motorised swivel reaches 47° per side, depending on the installation and on the screen. The bracket is for indoor use.
Key features
- For screens of roughly 50" to 80", weighing no more than 50 kg
- Maximum lift of 533 mm measured against the closed position
- Reaches 588 mm out at most and sits 180 mm deep on the wall
- Motorised swivel of as much as 47° both ways, according to screen width
- VESA patterns from 200 x 200 to 400 x 400 mm
- Magnetic covers that can be taken off, complete cable management, smooth and quiet travel
- RAL 9005 satin black finish; other finishes on request
Control and integration
The bracket is operated through RS232, contact closure or IR. RF control can be had as an option.
Environments
The swivel lets the screen face several spots around the room, so the bracket fits rooms where the TV is watched from different seats. It is a product for indoor use.
