Low-profile fixed TV bracket for screens with fixings as large as VESA 800 x 500

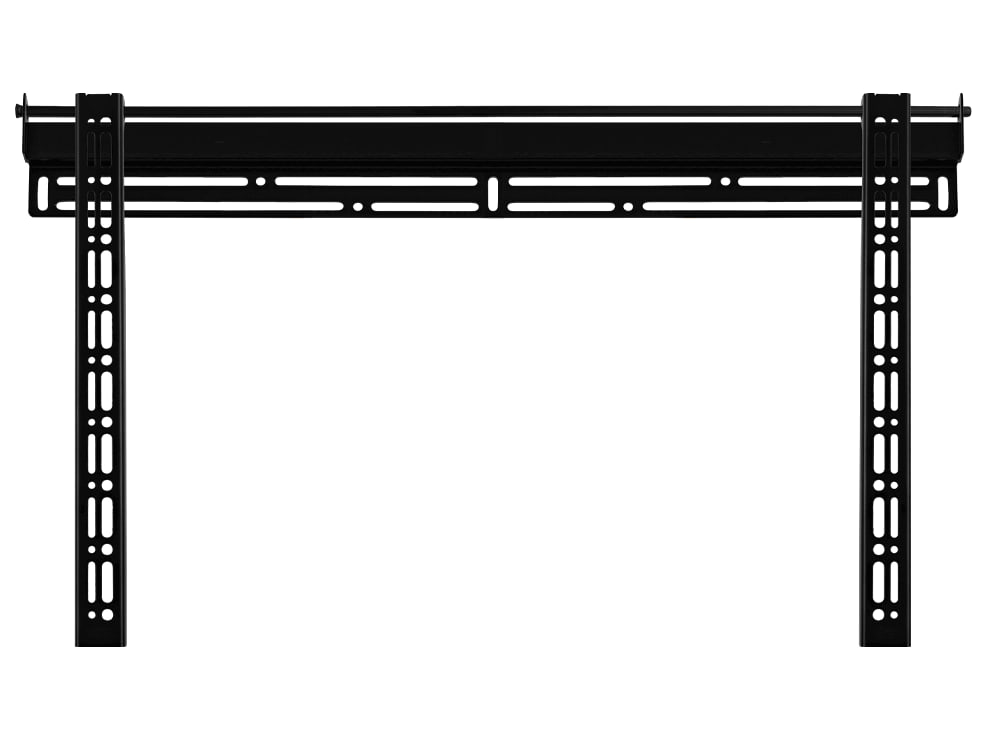

FB49 is a flat, fixed wall bracket made for mounting 49" to 80" screens discreetly.
Fitting relies on a simple hook system: the screen hooks onto the bracket fixed to the wall and lifts off in the same way. The 30 mm profile keeps the display close to the wall.
Key features
- 30 mm profile from the wall, so the mount stays discreet
- Structure in solid steel
- Follows the VESA standard, with patterns as large as 800 x 500
- 70 kg maximum load
- Hook-on, hook-off system for the screen
- Satin black RAL 9005 finish
Size and load
The bracket measures 873 x 550 mm and is 30 mm deep. Its fixings cover spacings from 100 to 800 mm across and from 100 to 500 mm in height, in 100 mm steps. FB49 carries as much as 70 kg and is recommended for 49" to 80" screens; the largest screen it can take is limited by weight.
Installation
FB49 is an easy bracket to fit: once it is fixed to the wall, the screen is hung on the hook system and can be taken down the same way. The solid steel structure gives the bracket the strength it needs.
Environments
FB49 is a fixed bracket intended for indoor installation. It is not meant for use in the open air.
